1600KG Mechanical Disc Braked Caravan Trailer Axle. Parallel. 6 Stud l/C Pattern

50MM SQUARE SOLID COMPLETE MECHANICAL DISC BRAKED AXLE (1600KG RATED)
12" DISCS. 6 STUD PATTERN,
PARALLEL BEARINGS

NATURAL FINISH AXLE WITH GALVANISED/DACROMET DISCS AND CALIPERS

AXLE LENGTHS AVAILABLE
PLEASE NOTE: Minimum clearance from hub face to chassis per side: 155mm
PLEASE NOTE: Hub face to back of Electric backing plate 155mm per side
1700MM TIP TO TIP (1583MM HUB FACE TO HUB FACE)
1750MM TIP TO TIP (1633MM HUB FACE TO HUB FACE)
1800MM TIP TO TIP (1683MM HUB FACE TO HUB FACE)
1850MM TIP TO TIP (1733MM HUB FACE TO HUB FACE)
1900MM TIP TO TIP (1783MM HUB FACE TO HUB FACE)
1950MM TIP TO TIP (1833MM HUB FACE TO HUB FACE)
2000MM TIP TO TIP (1883MM HUB FACE TO HUB FACE)
2050MM TIP TO TIP (1933MM HUB FACE TO HUB FACE)
2100MM TIP TO TIP (1983MM HUB FACE TO HUB FACE)
2150MM TIP TO TIP (2033MM HUB FACE TO HUB FACE)
2200MM TIP TO TIP (2083MM HUB FACE TO HUB FACE)
2250MM TIP TO TIP (2133MM HUB FACE TO HUB FACE)
2300MM TIP TO TIP (2183MM HUB FACE TO HUB FACE)
2350MM TIP TO TIP (2233MM HUB FACE TO HUB FACE)
2400MM TIP TO TIP (2283MM HUB FACE TO HUB FACE)
2435MM TIP TO TIP (2318MM HUB FACE TO HUB FACE)
CUSTOM AXLE LENGTH UP TO 2500MM TIP TO TIP +$50 PER AXLE
Custom Axle lengths will need to be manufactured which will take approx 5 extra business days for dispatch on top of the current dispatch times

AXLE THICKNESS: 50mm solid
PCD: 6/139.7
DISCS: 12" PARALLEL DISCS
BEARINGS: L68149 INNER & L68149 OUTER

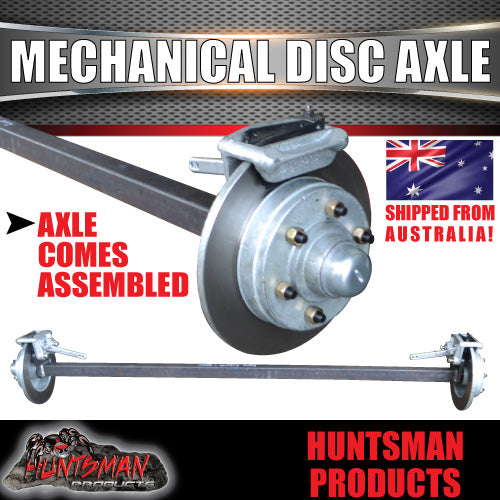

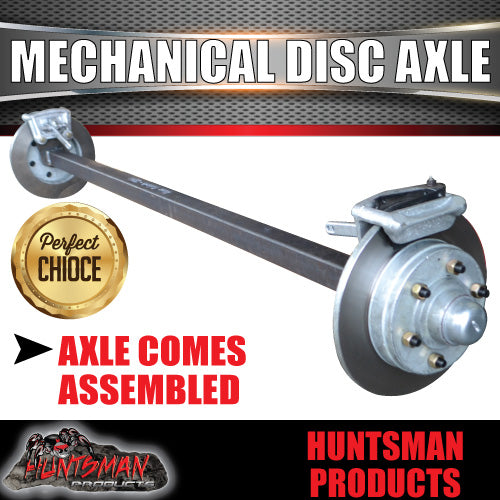

AXLE COMES COMPLETELY ASSEMBLED AS PICTURED

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
