DIY 2000kg TANDEM TRAILER SUSPENSION KIT. HYDRAULIC DISC BRAKES. R/ROLLER, AXLES 64" - 78"

2000Kg DIY TANDEM TRAILER KIT
ROCKER ROLLER LOAD SHARING SUSPENSION, HYDRAULIC DISC BRAKES AND 45MM SQUARE AXLES.
AXLE LENGTHS 64" - 78" (for longer axles SKU: 175712085569)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $105 (12" DISCS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$105 (12" DISCS)

AVAILABLE LENGTHS
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)
77", 1955MM TIP TO TIP (1855MM HUB FACE TO HUB FACE)

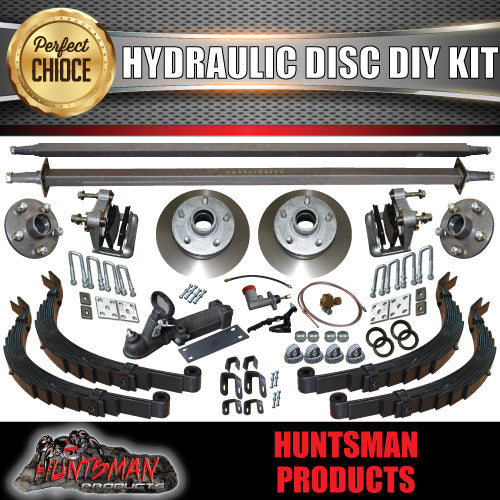

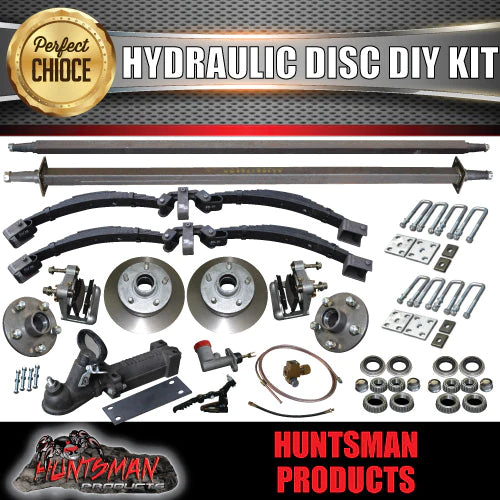

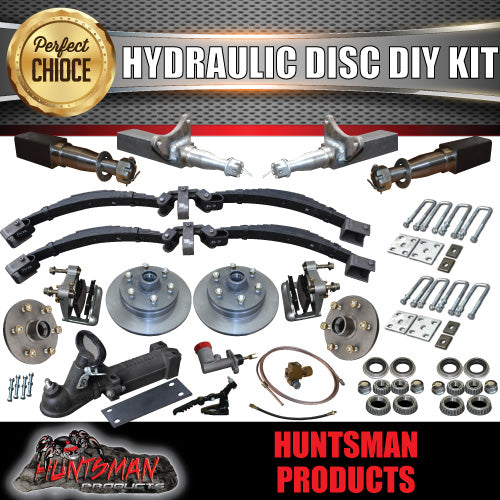

IN THIS KIT
2X 45MM SQUARE AXLES. 1 WITH DISC BRAKE MOUNTS WELDED TO AXLE, 1400KG RATED EACH (PLEASE SPECIFY AXLE LENGTH OR IF YOUR NOT SURE ASK US)
( AVAILABLE IN 64", 65", 66, 67", 68", 69", 70", 71", 73", 75", 77", 78" ( TIP TO TIP)

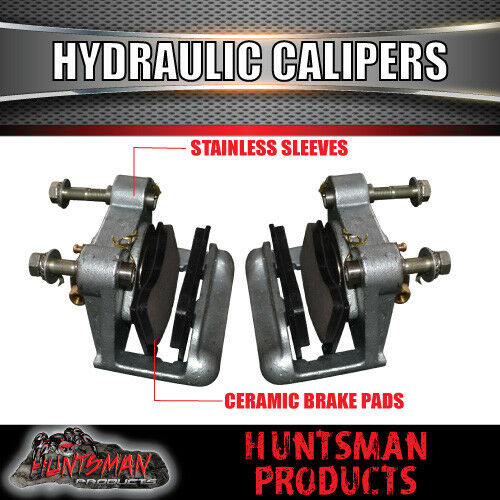

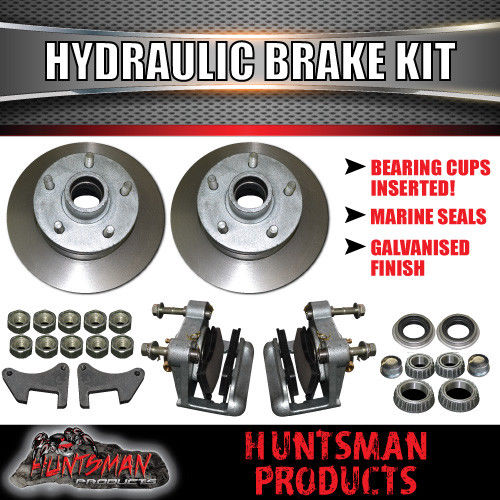

2X HYDRAULIC CALIPERS WITH STAINLESS STEEL PISTONS & CERAMIC BRAKE PADS.
2 X NATURAL FINISH DISC HUBS WITH SLIMLINE BEARING KITS.

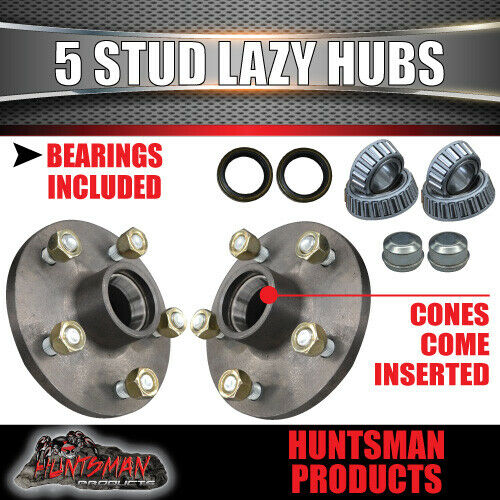

2X LAZY HUBS WITH SLIMLINE BEARING KITS
ALL WHEEL NUTS

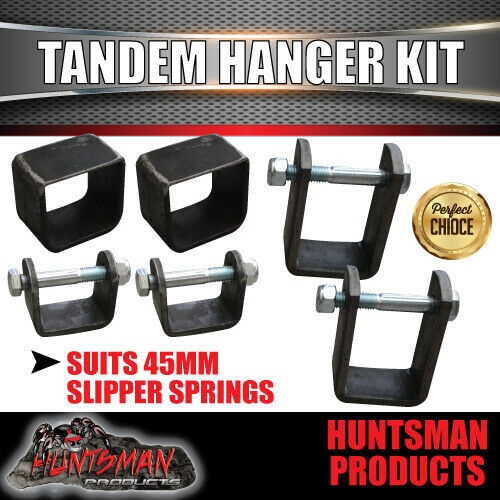

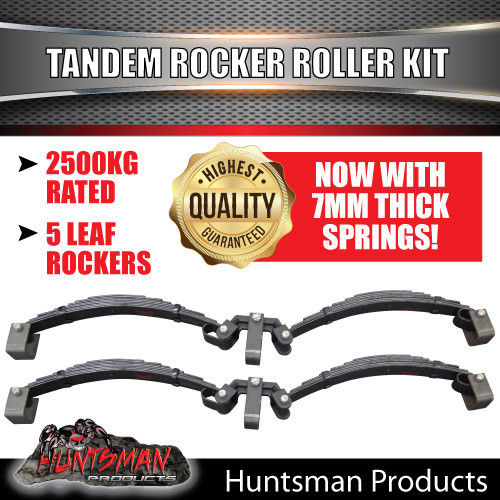

1X 5 LEAF 2.5 TONNE ROCKER ROLLER LOAD SHARING SPRING SET WITH ALL GREASABLE SHACKLES AND HANGERS ALREADY ASSEMBLED (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
4X UNIVERSAL FISH PLATES
8X 45MM X 130MM SQUARE 1/2" U BOLTS
4X AXLE PADS
16X SPRING WASHERS AND NUTS FOR U BOLTS

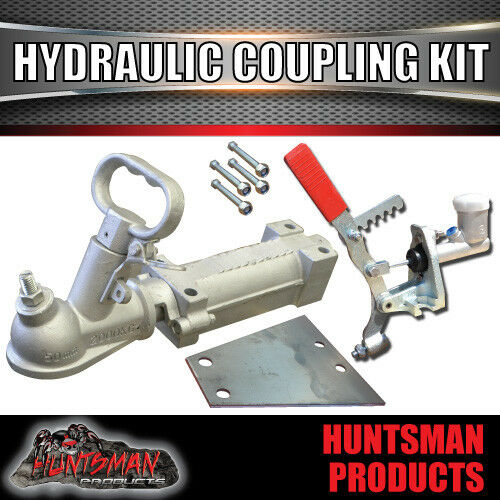

1X 2000KG OVERRIDE BALL COUPLING
1X 3/4 MASTER CYLINDER BRACKET
1X 3/4 MASTER CYLINDER WITH MOUNTING MOUNT BOLTS
1X 4 HOLE COUPLING WELD ON PLATE
4X HIGH TENSILE COUPLING BOLTS AND NUTS

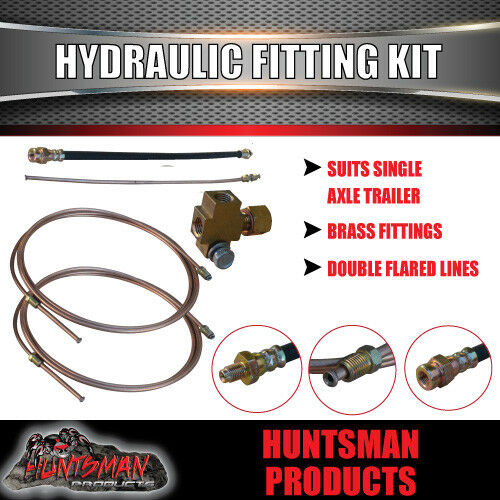

1X 2500MM COUPLING TO AXLE MAIN FLARED BUNDY LINE WITH NUTS (LET US KNOW IF LONGER IS REQUIRED)
1X 1500MM FLARED BUNDY LINE WITH NUTS
1X 500MM FLARED BUNDY LINE WITH NUTS
1X BRASS T PIECE
1X MASTER CYLINDER NUT AND WASHER
ALL COPPER FITTINGS AND T PIECES TO COMPLETE AXLE AND FINISH OFF AT COUPLING WITH PRE FLARED LINES!!

Please check coupling to axle hydraulic line length. if longer is required please get in contact with us

When Ordering please provide your stud pattern and axle length

upgrade to the easy instillation hydraulic line setup.
12ft set up: $70 (CLICK ON LINK BELOW)
16ft set up: $75 (CLICK ON LINK BELOW)

"UPGRADE TO 12FT FULL FLEXI KIT BY CLICKING HERE"

"UPGRADE TO 16FT FULL FLEXI KIT BY CLICKING HERE"

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE
ASSEMBLE OF AXLE $50 PER AXLE
UPGRADE TO JAPANESE BEARINGS $100.0 (CLICK ON LINK BELOW)

 "CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
