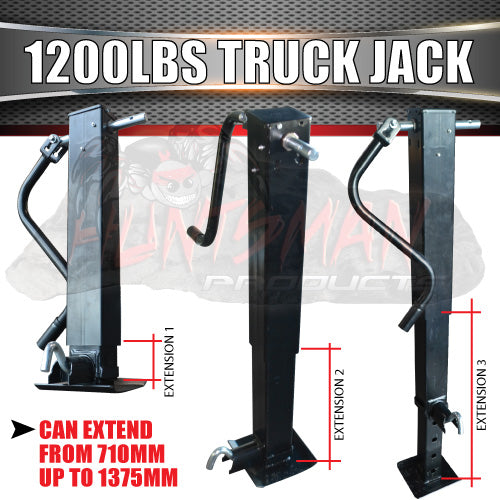

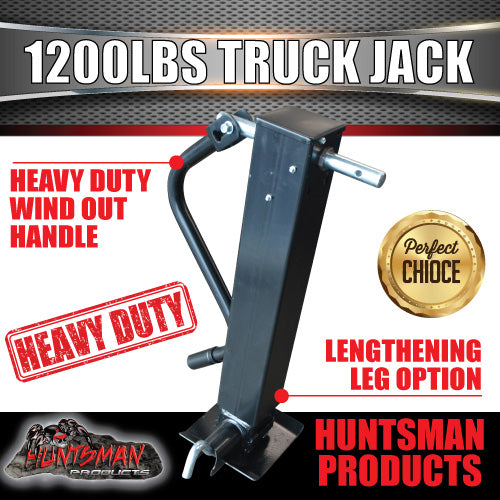

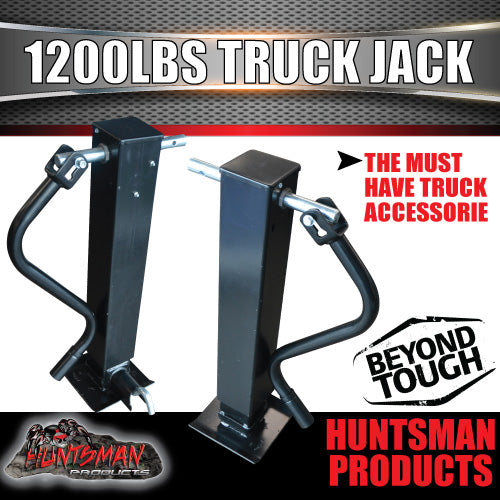

12000LBS Caravan Trailer Truck Jack Stand.

trailer, truck caravan jack stand.
5443kg Rated (12000LBS)

CLOSED HEIGHT: 710MM
EXTENDED HEIGHT WITH RELEASE FOOT: 1030MM
AMOUNT OF TRAVEL: 350MM

STEEL FOOT
PLATE SIZE: 200MM X 210MM
COMES WITH 2 GREASE NIPPLES.

USED ON CARAVANS, TRAILERS AND LIFTING CANOPY'S OF UTES

Pull the side-facing plunger pin on this heavy-duty jack to release the drop leg. The durable jack screw offers increased strength. The built-in grease zerk allows effortless greasing. Sidewind crank included.

Features:
Heavy-duty utility jack lets you raise and lower your trailer
Ideal for agricultural and commercial applications

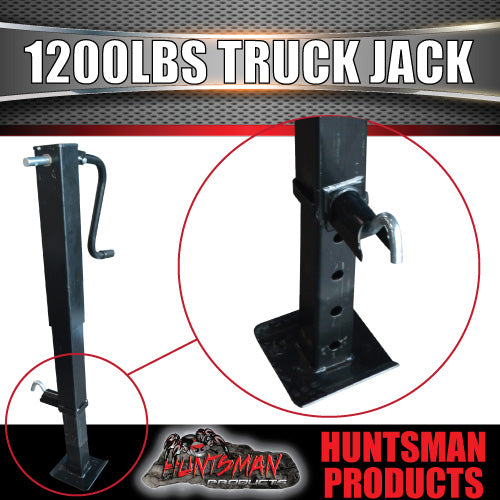

Drop leg with spring return increases overall extension for maximum adjustability
Plunger pin positioned to the side
Durable 1" jack screw allows for heavy lifting
Twin thrust bearings make extending and retracting jack easy
Effortless greasing with built-in grease zerk
Black painted inner and outer tubes
Sidewind handle has curved edges - no sharp ends
Handle can be secured for travel with included weld-on clip
Footplate minimizes sinking in soft ground
Weld-on installation

Specs:
Lift capacity: 10,000 lbs
Support capacity: 12,000 lbs
Drive pin diameter: 1"
3/8" Diameter mounting hole
Outer tube width: 4"
Inner tube width: 3-1/2"
Footplate dimensions: 8-1/4" long x 8" wide
Adjustment hole spacing: 3-3/8" from center of hole to center of hole
