DIY 2000Kg Tandem Trailer Kit, Mechanical Brakes R/Roller Springs Axles 60"- 79"

DIY 2000kg TANDEM TRAILER KIT
MECHANICAL DRUM BRAKES. ROCKER ROLLER SPRINGS
AXLE LENGTHS 60"-79"


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)

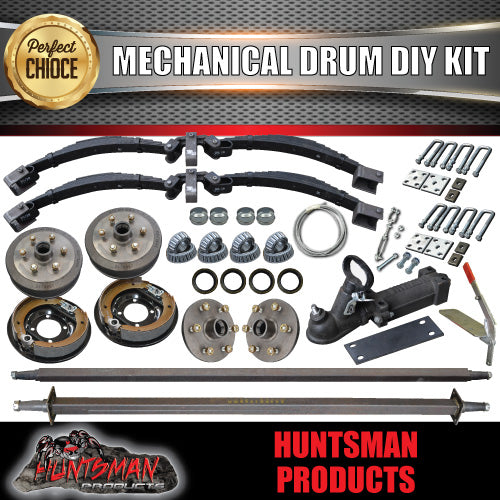

IN THIS KIT
1X 40MM SQUARE AXLE WITH MECHANICAL BRAKE MOUNTS WELDED TO AXLE, 1000KG RATING ( AVAILABLE IN 60,"63" 64", 65", 66, 67", 68", 69", 70", 71",73", 75", 77", 78", 79" TIP TO TIP ( IF YOUR NOT SURE ON THE SIZE YOU NEED THEN SEND US A MESSAGE WITH YOUR CHASSIS WIDTH AND WHEELS YOUR USING IN WHICH WE WILL GIVE OUR JUDGEMENT)".
1X 40MM SQUARE BARE AXLE, 1000KG RATING.

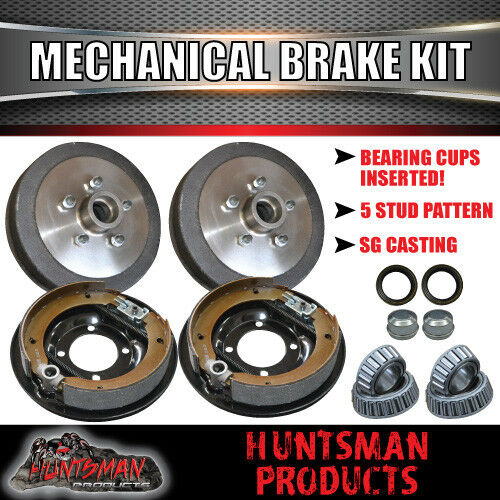

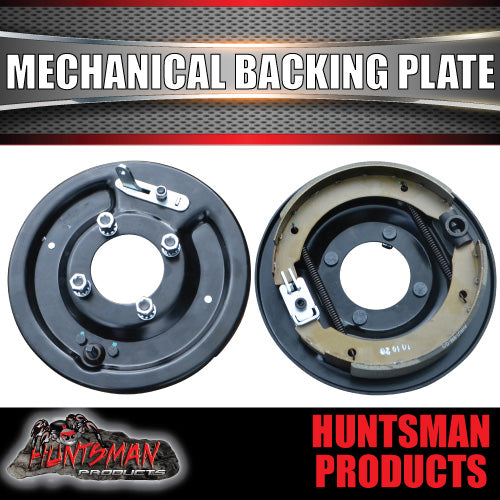

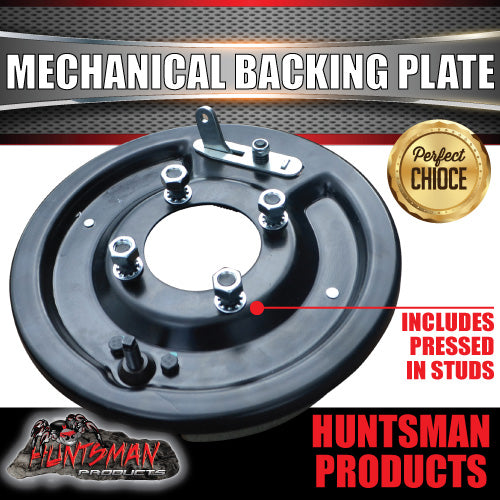

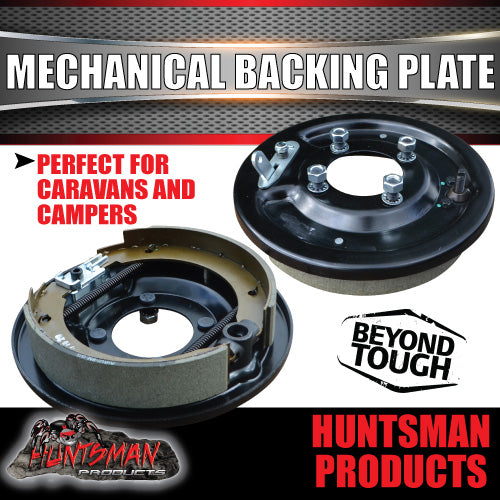

2X 9" MECHANICAL DRUM BACKING PLATES WITH HIGH TENSILE BOLTS AND NUTS FOR FIXING TO BRAKE MOUNTS
2X 9" MECHANICAL BRAKE DRUMS. (CUPS ALREADY INSERTED INTO DRUMS)

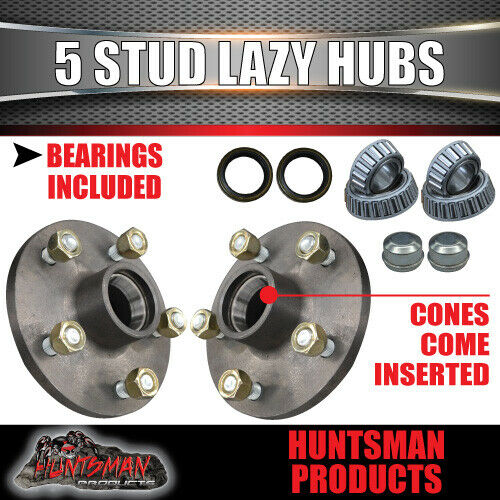

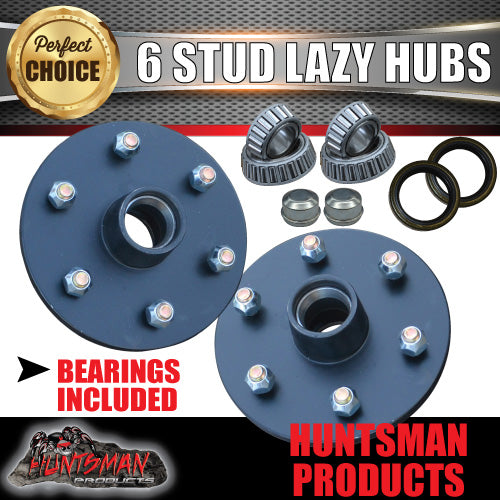

2X LAZY HUBS (CUPS ALREADY INSERTED INTO DRUMS)
4X LM BEARING KITS INCLUDING DUST SEALS AND DUST CAPS
ALL WHEEL NUTS

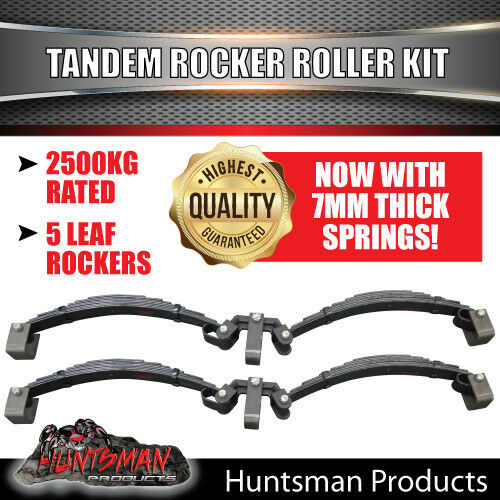

1X 5 LEAF 2.5 TONNE ROCKER ROLLER LOAD SHARING SPRING SET WITH ALL GREASABLE SHACKLES & HANGERS ALREADY ASSEMBLED. (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
4X SLOTTED FISH PLATES
8X 40MM X 130MM 1/2" U BOLTS WITH NUTS AND WASHERS
4X AXLE PADS

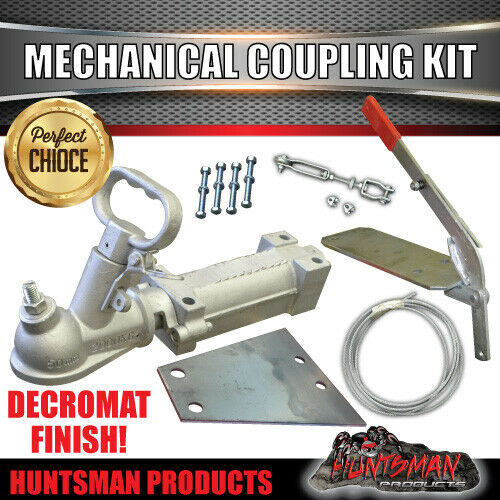

1X 2000KG OVERRIDE 50MM BALL COUPLING
1X MECHANICAL BASE PLATE AND LEVER
1X 8 METRES HANDBRAKE CABLE (LET US KNOW IF LONGER IS REQUIRED)
2X CABLE CLAMPS
1X CABLE ADJUSTER
1X 4 HOLE COUPLING WELD ON PLATE
4X COUPLING HIGH TENSILE BOLTS WITH NUTS AND WASHERS
ON ORDERING PLEASE PROVIDE YOU STUD PATTERN AND AXLE LENGTH


OPTIONS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE. DROP AXLES TAKE APPROX 5 BUSINESS DAYS
NATURAL FINISH GULL WING AXLE UPGRADE $150 EACH
ASSEMBLE OF AXLE $50 PER AXLE
JAPANESE MANUFACTURED BEARINGS $100 (CLICK ON LINK BELOW)

 "CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
