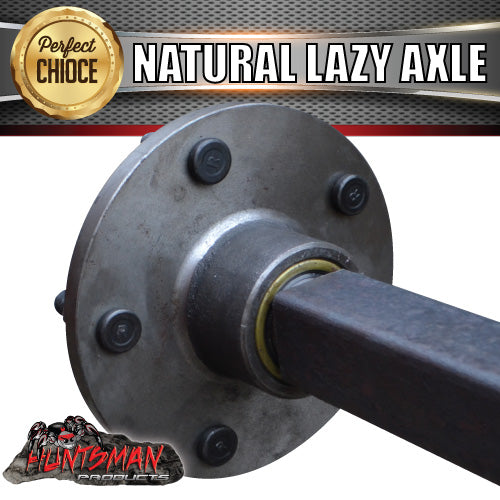

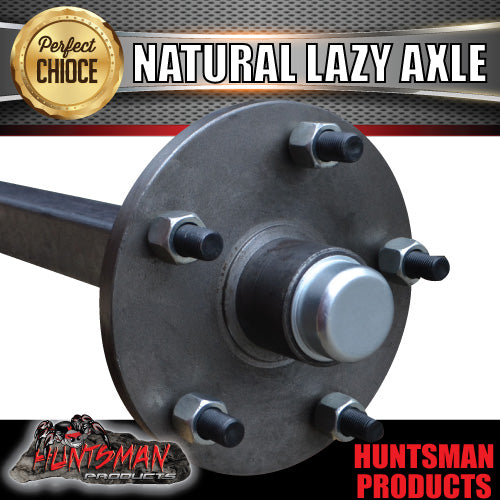

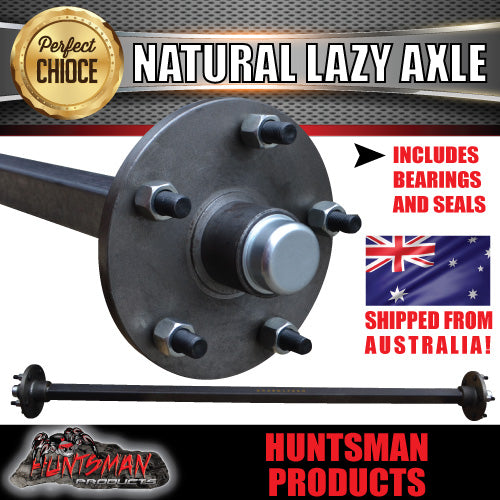

1400Kg Trailer Caravan Solid Lazy Axle 45mm Square Complete 78" - 96" Long

45MM SQUARE SOLID COMPLETE LAZY AXLE
(1400KG RATED)
NOTE: Unbraked Axles Have a Max GTM Capacity of 750KG.

AXLE LENGTHS 78" - 96" ( for shorter axles ebay item:362623983058)


AVAILABLE LENGTHS
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) +$20
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$20
6 STUD D40/NP300 (6/114.3 PCD, 1/2" STUDS AND NUTS) +$20
5 STUD SUZUKI / F100 (5/139.7, 9/16" STUDS AND NUTS) +$20

AXLE COMES COMPLETELY ASSEMBLED
AUTOMOTIVE GREASE USED ON BEARINGS


SLIMLINE BEARINGS INSTALLED
INNER BEARINGS ID:34.9MM (L68149)
OUTER BEARINGS ID:22MM (L12749)


OPTIONS AVAILABLE FOR THIS AXLE
UPGRADE JAPANESE MANUFACTURED BEARINGS +$50 (CLICK ON LINK BELOW)
2" OR 4" DROP AXLES $295 EACH AXLE (DROP AXLES APPROX 5 DAYS TO ENGINEER)
GULLWING AXLE UPGRADE +$180
