DIY 1600KG CARAVAN, BOAT TRAILER KIT. L/C 12" HYDRAULIC DISC. EYE TO EYE SPRINGS

DIY 1600KG SINGLE AXLE BOAT TRAILER KIT
HYDRAULIC DISC
EYE TO EYE SPRINGS


STUD PATTERNS AVAILABLE
6 STUD LANDCRUISER (6/139.7 PCD, 1/2" STUDS AND NUTS)

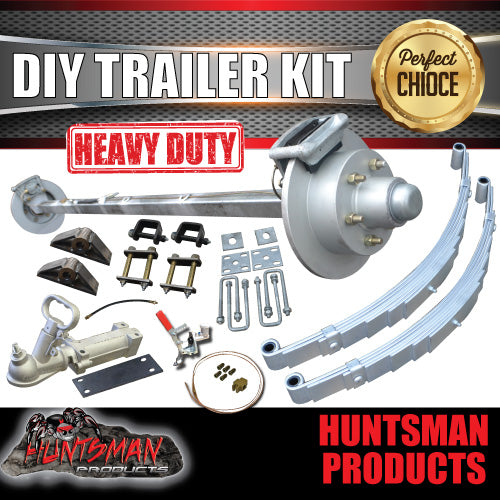

IN THIS KIT

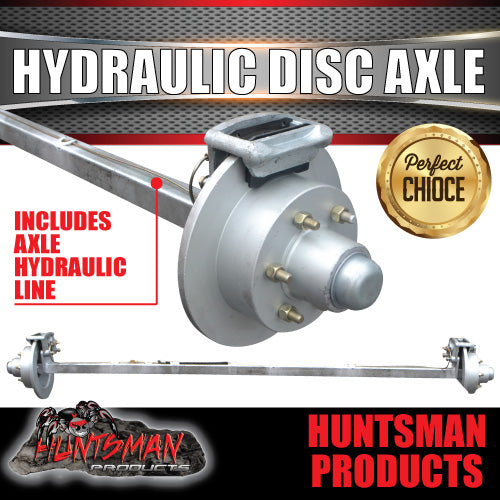

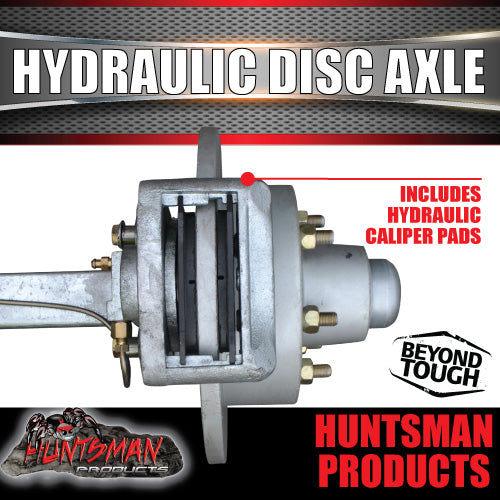

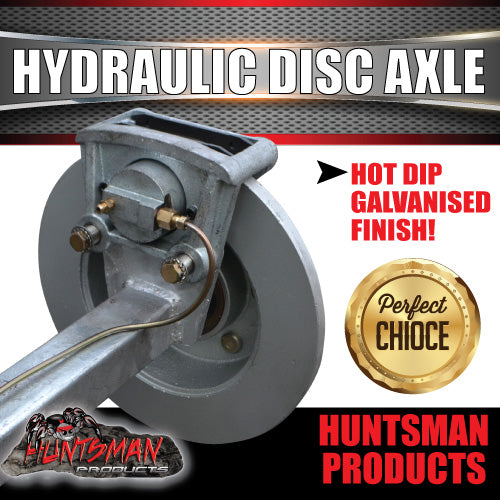

1X ASSEMBLED 50MM SQUARE PARALLEL GALVANISED HYDRAULIC DISC BRAKED 6 STUD LANDCRUISER PATTERN AXLE. CALIPERS COME WITH STAINLESS STEEL PISTONS. MARINE SEALS ASSEMBLED. (PLEASE NOTE THE FLANGES ARE WELDED TO AXLE AFTER IT IS GALVANISED AND COLD GALVANISE IS APPLIED WHERE THE FLANGES HAVE BEEN WELDED)
AXLES TAKE APPROX 5 DAYS TO BE ENGINEERED (available any length up to 2500mm tip to tip / 2370mm hub face to hub face)

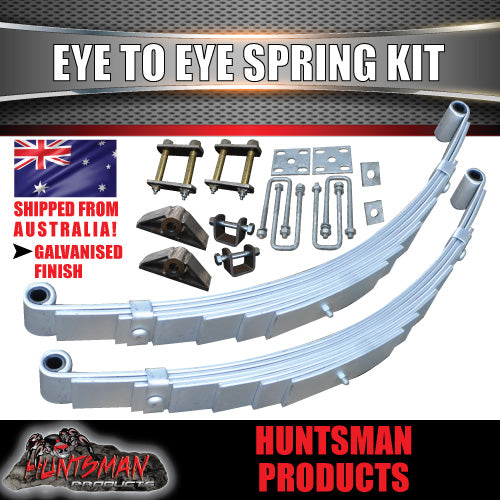

2X 7 LEAF GALVANISED DACROMET 60MM WIDE EYE TO EYE SPRINGS. RATED 1600KG PER PAIR (springs are shot peened for extra strength)

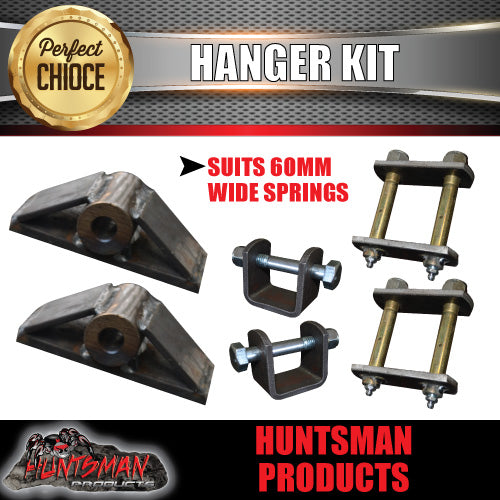

1X 60MM HEAVY DUTY SHACKLE HANGER KIT
2X GALVANISED SLOTTED FISH PLATES
4X GALVANISED 50MM X 150MM 5/8" HIGH TENSILE U BOLTS WITH NUTS AND WASHERS
2X AXLE PADS

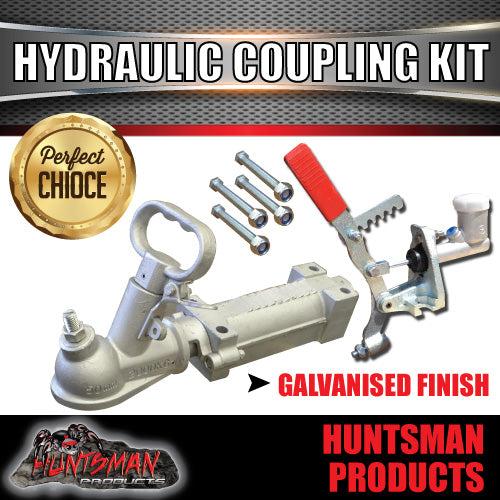

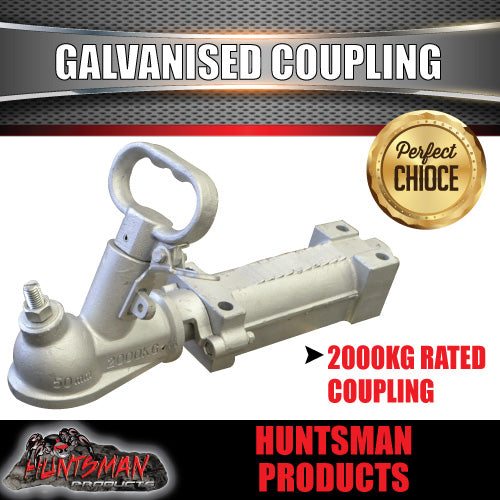

1X 2000KG GALVANISED 4 HOLE OVERRIDE BALL COUPLING
1X 3/4"MASTER CYLINDER WITH STAINLESS STEEL MOUNTING BOLTS
1X GALVANISED MASTER CYLINDER BRACKET
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
1X 4 HOLE COUPLING WELD ON PLATE

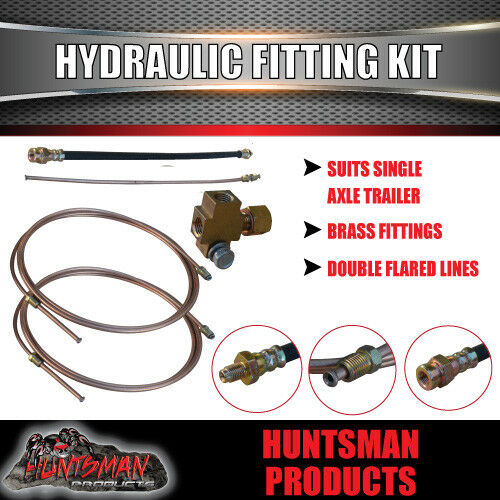

1X 2500MM COUPLING TO AXLE MAIN FLARED BUNDY LINE WITH NUTS (LET US KNOW IF LONGER IS REQUIRED)
1X 1500MM FLARED BUNDY LINE WITH NUTS
1X 500MM FLARED BUNDY LINE WITH NUTS
1X 400MM MALE / FEMALE FLEXI LINE
1X BRASS T PIECE
1X MASTER CYLINDER NUT AND WASHER
ALL COPPER FITTINGS AND T PIECES TO COMPLETE AXLE AND FINISH OFF AT COUPLING WITH PRE FLARED LINES!!

Please check coupling to axle hydraulic line length. if longer is required please get in contact with us
on ordering please provide your axle length?

upgrade to the easy instillation hydraulic line setup.
12ft set up: $70 (CLICK ON LINK BELOW)
16ft set up: $75 (CLICK ON LINK BELOW)

"UPGRADE TO 12FT FULL FLEXI KIT BY CLICKING HERE"

"UPGRADE TO 16FT FULL FLEXI KIT BY CLICKING HERE"

EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE DROP AXLES TAKE APPROX 5 BUSINESS DAYS
UPGRADE TO JAPANESE BEARINGS $50.0 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
