DIY 4200Kg Tri Axle Hydraulic Disc Braked Boat trailer Kit Dacromet Springs, Hydrapro

DIY HYDRAULIC DISC TRI AXLE MARINE BOAT TRAILER KIT.
4200KG RATED.
ROCKER ROLLER SPRINGS, 45MM MACHINED STUB AXLES AND ELECTRIC OVER HYDRAULIC HYDRAPRO ACTUATOR


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $300 12" DISCS
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$300 12" DISCS

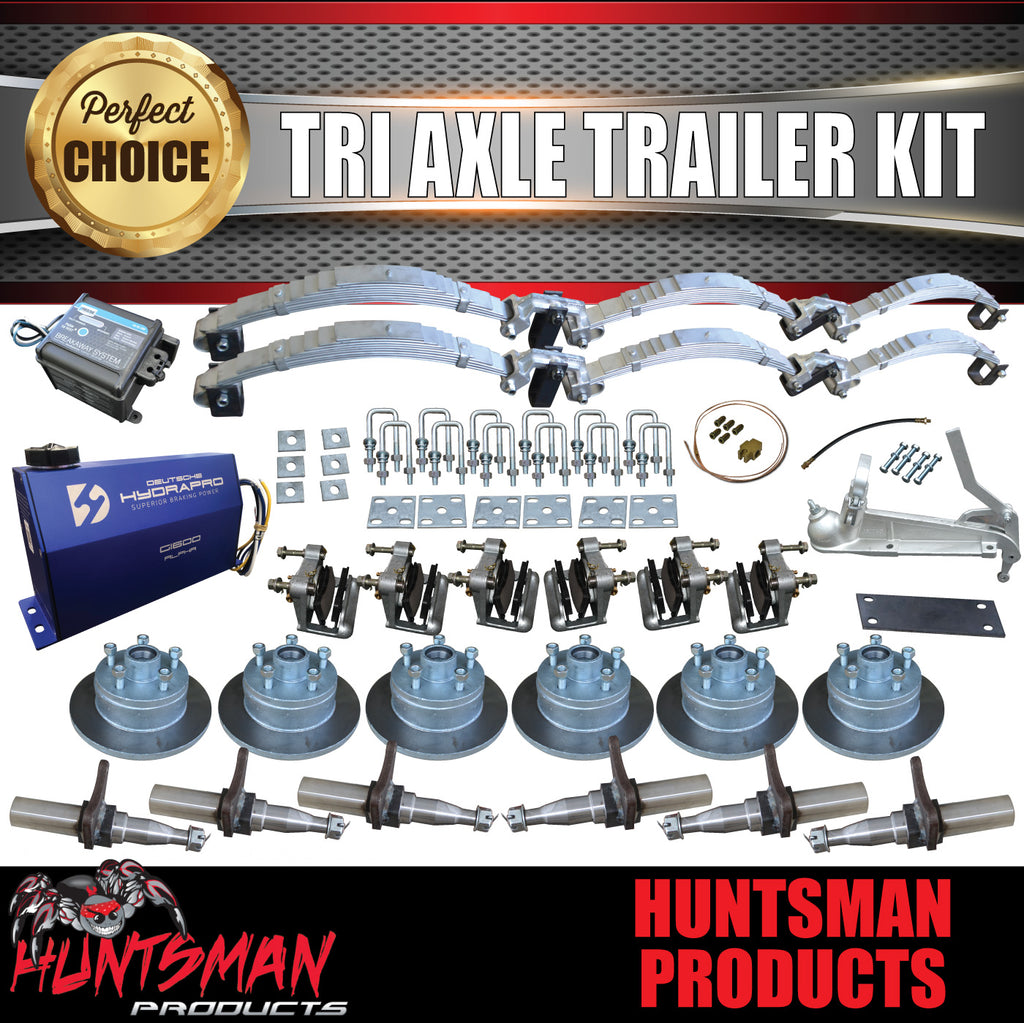

IN THIS KIT

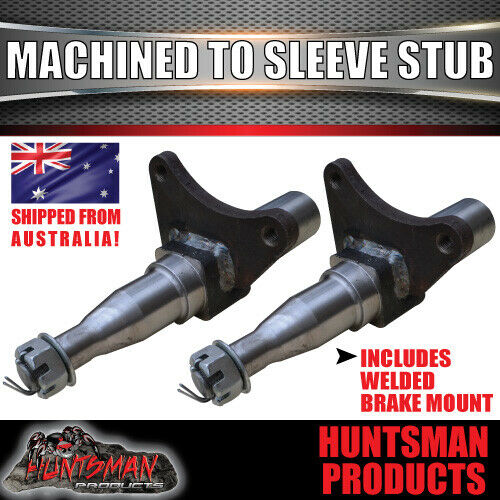

6X 45MM X 250M SPECIAL MACHINED SQUARE STUB AXLES MACHINED TO SLEEVE INTO 50MM X 50MM X 5MM RHS WITH HYDRAULIC FLANGES WELDED (PLEASE NOTE: STUB AXLES ARE NATURAL FINISH) RATED 1400KG PER PAIR

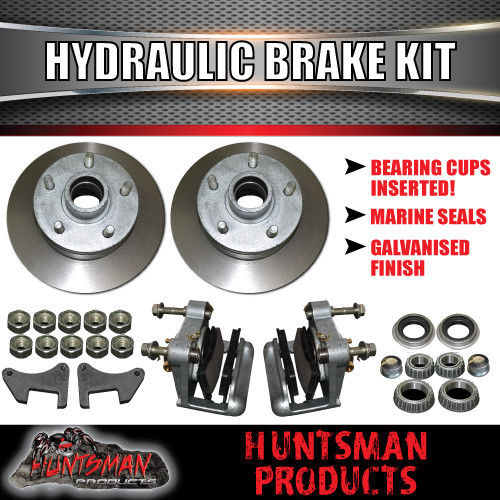

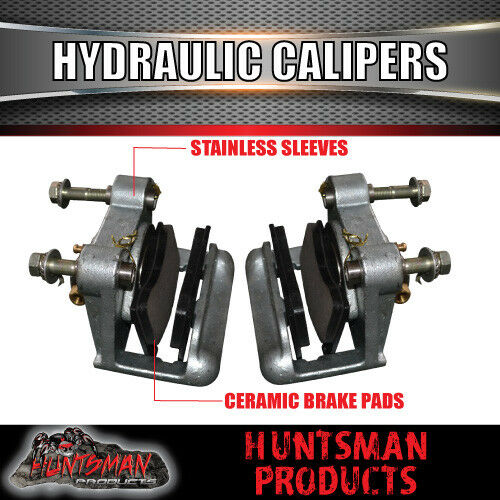

6X GALVANISED HYDRAULIC BRAKE CALIPERS WITH STAINLESS STEEL PISTONS AND ZINC MOUNT BOLTS
6X PAIRS DISC BRAKE PADS

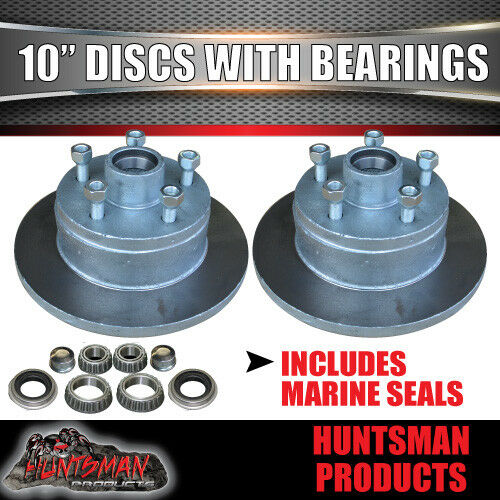

6X 10" GALVANISED DACROMET HYDRAULIC BRAKE DISCS. 15MM THICK DISCS (CUPS ALREADY INSERTED INTO DISCS)
6X SLIMLINE BEARING KITS INCLUDING MARINE SEALS AND DUST CAPS.
ALL WHEEL NUTS TO SUIT STUD PATTERN PROVIDED

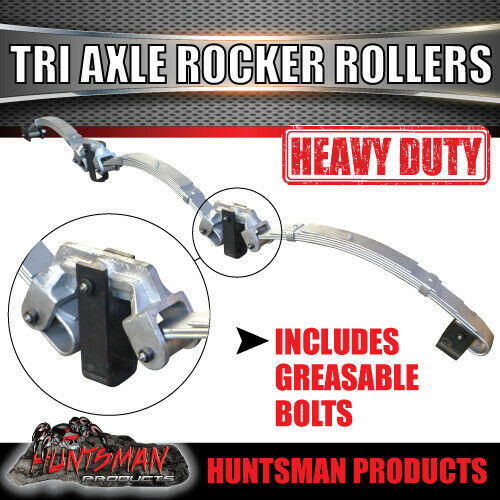

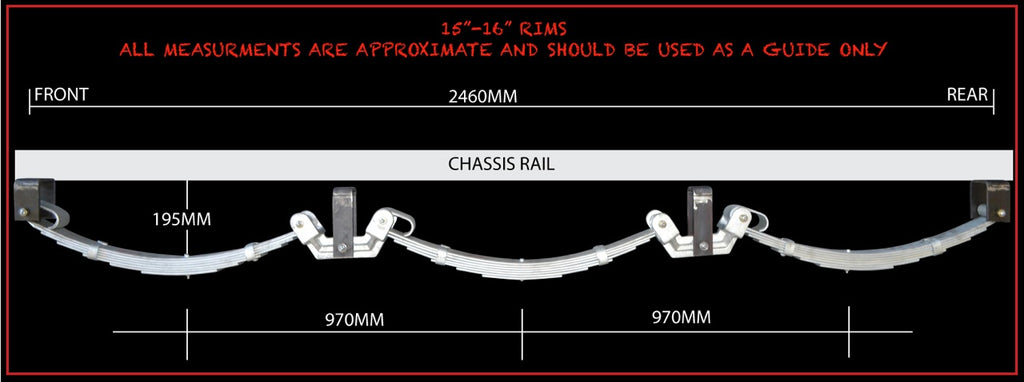

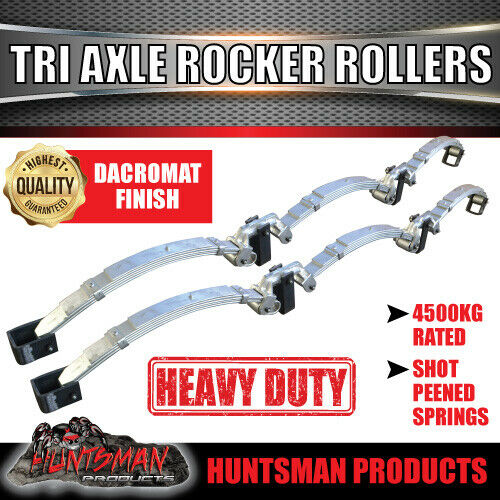

1X TRI AXLE 6 LEAF GALVANISED DACROMET ROCKER ROLLER LOAD SHARING SPRING SET WITH ALL GREASABLE HIGH TENSILE SHACKLE BOLTS & STEEL BUSHES. (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
6X GALVANISED FISH PLATES

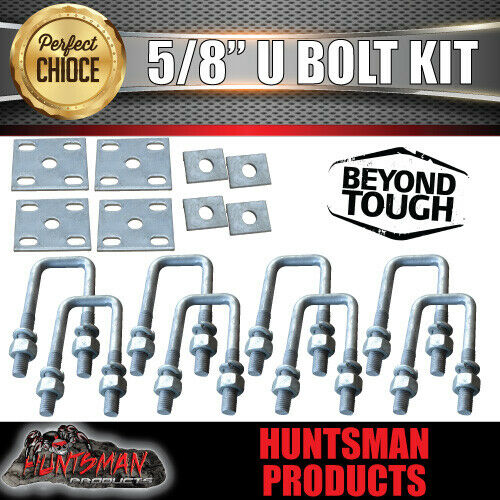

12X GALVANISED 50M X 150MM 5/8" HIGH TENSILE U BOLTS WITH NUTS AND WASHERS
6X GALVANISED AXLE PADS

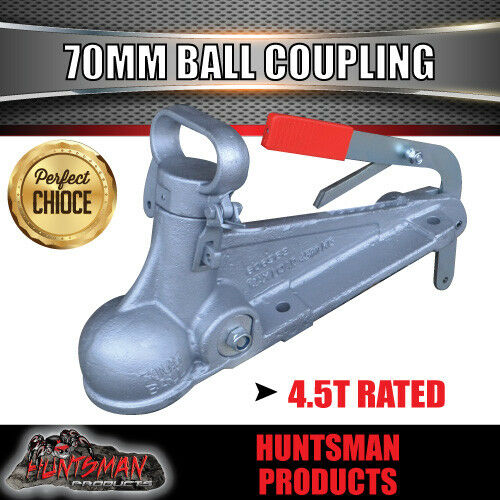

1X 4500KG 70MM GALVANISED ELECTRIC BALL COUPLING
COUPLING CTA APPROVAL NUMBER: CTA-061054

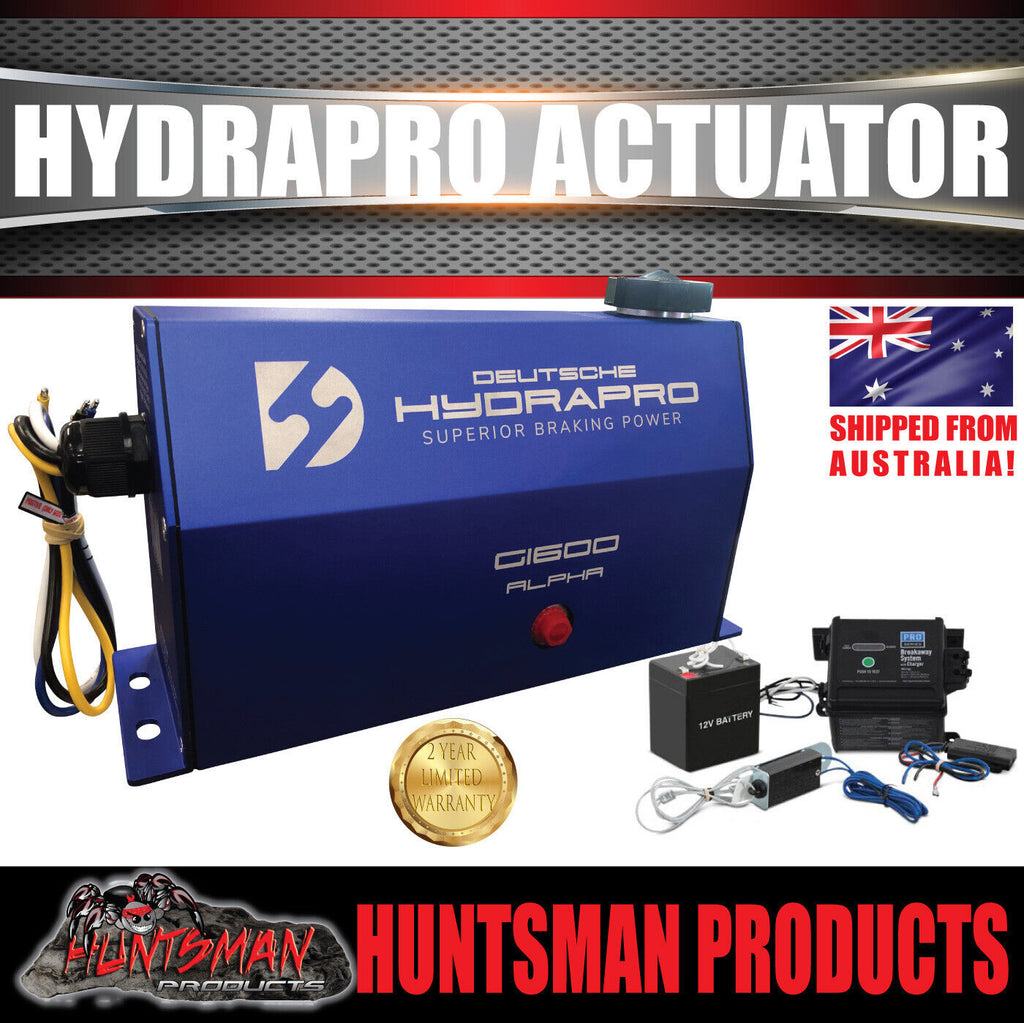

1X DEUTSCHE HYDRAPRO 1600PSI ELECTRIC OVER HYDRAULIC ACTUATOR
1X TROJAN BRAKE AWAY UNIT
1X 4 HOLE COUPLING WELD ON PLATE
4X COUPLING HIGH TENSILE BOLTS AND AND NYLOC NUTS
1X 6100MM COUPLING TO FRONT AXLE MAIN FLARED BUNDY LINE WITH NUTS (LET US KNOW IF LONGER IS REQUIRED)
3X 2000MM FLARED BUNDY LINE WITH NUTS
5X 500MM FLARED BUNDY LINE WITH NUTS
5X 400MM MALE / FEMALE FLEXI LINES
1X BRASS T PIECE
2X BRASS 4 WAY BLOCKS
1X MASTER CYLINDER BRASS NUT AND WASHER

EXTRAS AVAILABLE
JAPANESE MANUFACTURED BEARINGS $150 (CLICK ON LINK BELOW)
HUNTSMAN STAINLESS CALIPERS AND DISCS (POA)
TRI AXLE RUBBER FLEXI LINE KIT UPGRADE +$145
TRI AXLE BRAIDED STAINLESS FLEXI LINE KIT UPGRADE +$190

CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.


DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
