10" 6 Stud Trailer Electric Drum Brake & Coupling Kit

SKU : 173370924437-1
$358.00

Available



Details

10" ELECTRIC DRUM BRAKE & COUPLING KIT
AVAILABLE TO SUIT 6 STUD TOYOTA, NISSAN, FORD, DMAX, NP300, D40
(5 STUD KITS AVAILABLE IN OUR STORE)

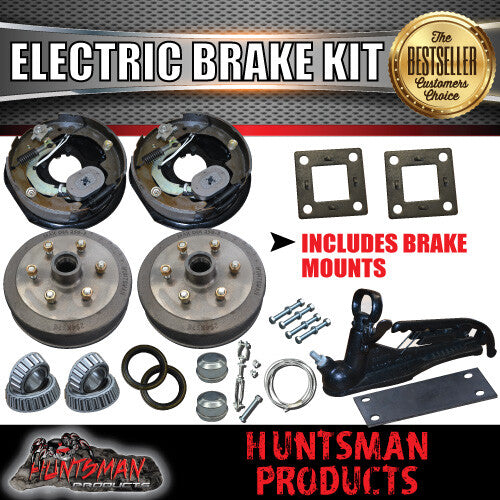

FULL KIT INCLUDES
1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
2X 10" HUB DRUMS (AVAILABLE PATTERNS TO SUIT 6 STUD TOYOTA, NISSAN, FORD, DMAX, NP300, D40)
S.G CASTING DRUMS (MUCH STRONGER THEN GREY IRON)
drums come with cups already inserted.
2X BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X WASHERS, 2X SPLIT PINS, 2X DUST SEALS, 2X DUST CAPS)
2X ELECTRIC BRAKE MOUNTS (PLEASE SPECIFY THICKNESS OF AXLE eg 39MM ROUND, 40MM SQUARE, 45MM SQUAREetc)
1X 3500KG ELECTRIC BALL COUPLING WITH HAND BRAKE LEVER
1X 8 METRE HAND BRAKE CABLE (LET US KNOW IF LONGER IS NEEDED)
1X CABLE ADJUSTER
1X 4 HOLE COUPLING WELD ON PLATE
2X CABLE CLAMPS
4X 12MM HIGH TENSILE BOLTS, NUTS AND WASHERS FOR COUPLINGS


INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)
AXLE WIDTH


BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


STUD PATTERNS AVAILABLE
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
D40/NP300/PATHFINDER (6/114.3 PCD, 1/2" STUDS AND NUTS)


if ordering an electric braked kit off us please look at our brake controllers which will be combined in your postage
tekonsha IQ item: 170774956808
tekonsha P3: 362897452478


BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
