10" TRAILER/CARAVAN ELECTRIC BRAKE KIT & 40mm STUBS.

10" ELECTRIC DRUM BRAKE KIT
& 40MM X 250MM STUB AXLE
RATED 1000KG

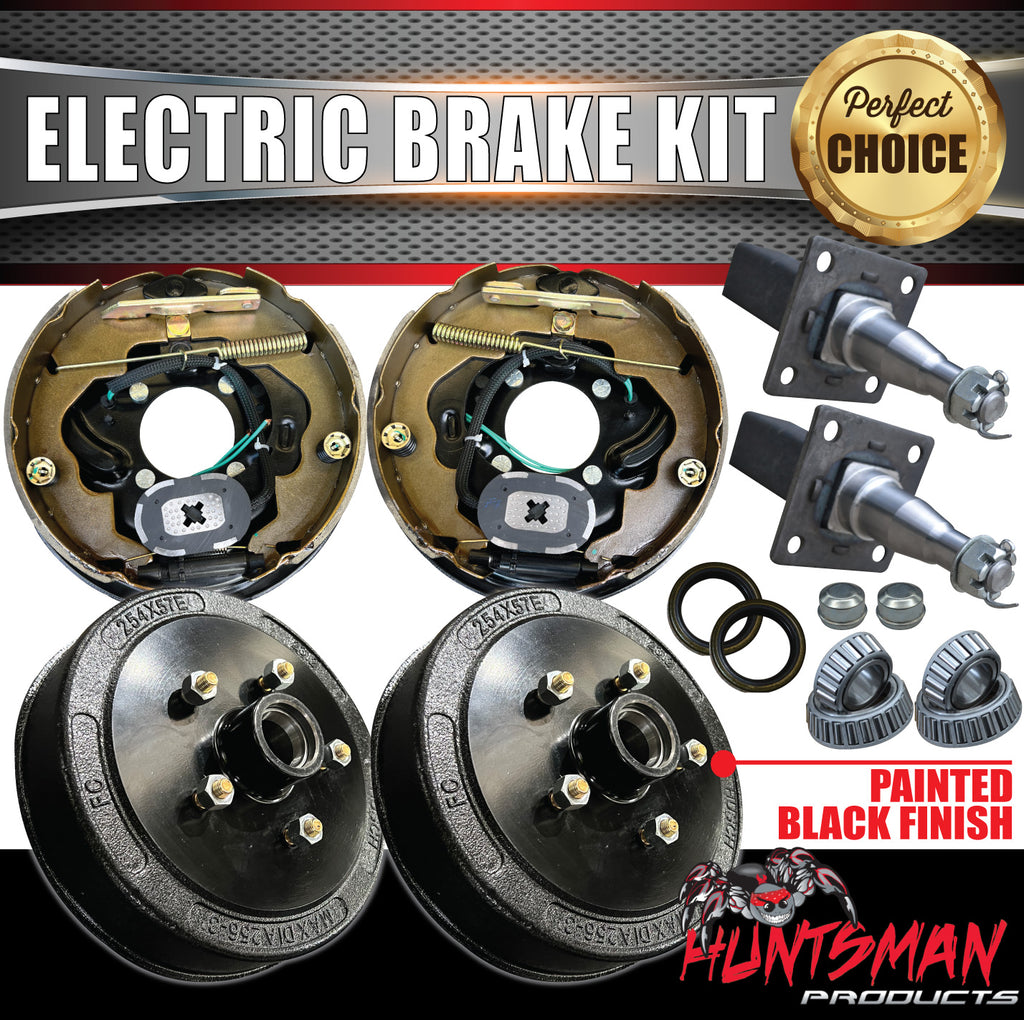

FULL KIT INCLUDES
2X 40X250MM STUB AXLES WITH ELECTRIC MOUNTS WELDED TO SUIT BRAKE KIT
1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER

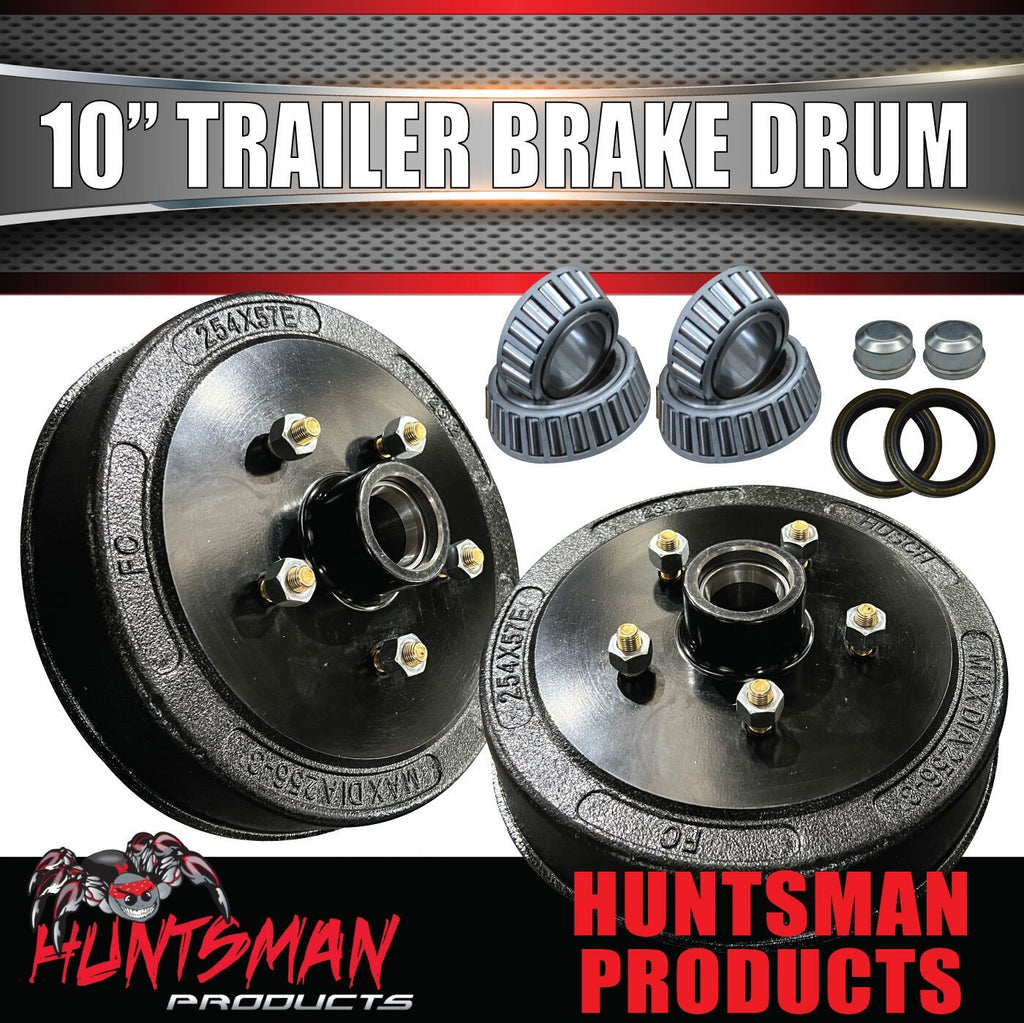

2X 10" HUB DRUMS (AVAILABLE IN 6 STUD, 5 STUD 100 SERIES LANDCRUISER, 5 STUD FORD, 5 STUD COMMODORE, HQ OR 5 STUD HT)
S.G CASTING DRUMS (MUCH STRONGER THEN GREY IRON)
drums come with cups already inserted.

2X LM BEARING SETS
2X INNER BEARINGS ID:31.7MM (LM67048)
2XOUTER BEARINGS ID:19MM (LM11949)
2X OUTER BEARING CUPS (already inserted)
2X INNER BEARING CUPS (already inserted)
2X LM REAR SEALS
2X DUST CAPS


INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
STUD PATTERN

STUD PATTERNS:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches

6 STUD LANDCRUISER
--- PCD: 6/139
--- Stud Thickness: 1/2" Inches

6 STUD D40/NP300
--- PCD: 6/114.3
--- Stud Thickness: 1/2" Inches


if ordering an electric braked kit off us please look at our brake controllers which will be combined in your postage
tekonsha IQ item: 170774956808
tekonsha P3: 362897452478

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
