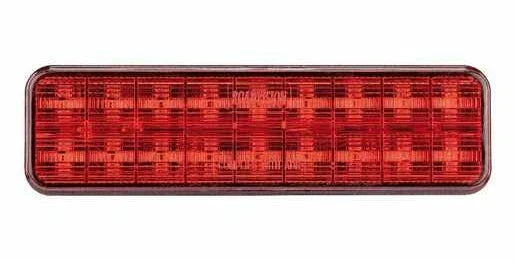

Roadvision LED Stop Tail Light Lamp. BR135R. 135mm x 38mm. 10-30V, 18 LED's

STOP/TAIL/IND/REV LAMPS
BR135 SERIES

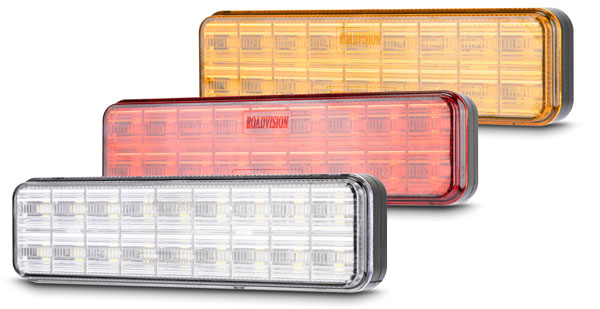

ROADVISION’s BR135 Series LED rear signal lamps are a versatile solution! Available in Stop/Tail, Indicator & Reverse functions, they deliver the durability of maintenance free LED technology and provide greater for increased safety. Producing more light output than incandescent lamps whilst drawing a fraction of the current, the BR135’s are designed to be easily attached with a simple surface or recessed mount design. Constructed with durable polycarbonate lenses and high impact ABS housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.

PRICE IS FOR 1 REVERSE BR135R

RANGE FEATURES

Multi-volt 10-30V DC input & low current draw

Brighter than conventional incandescent systems

100,000 hour LED life span with solid state technology

Maintenance free

Sealed polycarbonate lens & high impact ABS housing

Waterproof

Pre-wired with 300mm of sheathed tinned copper cable

Simple surface or recessed mount design

ADR/ECE approved for all functions

BR135R SPECIFICATIONS

Description - Stop / Tail Rear Lamp

Functions - Stop Tail

Voltage Input - 10-30V DC

Number of LED's  - 18 LED's

Current Draw Amps - 0.2/0.05A @ 13.8V

Dimensions AxBxC - 135 x 38 x 20mm

Lens Construction - Polycarbonate

Housing Construction - High Impact ABS

Mounting Hole /Cut Out - 80mm Stud Centres

Cable Length - 300mm Tinned Copper

ADR Approved

CTA Approved
