9" Trailer Mechanical Drum Brake + Coupling & Fitting Kit. koyo Bearings

9" TRAILER CARAVAN MECHANICAL DRUM BRAKE KIT
WITH FULL COUPLING AND CABLE KIT
WITH JAPANESE KOYO BEARINGS


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)

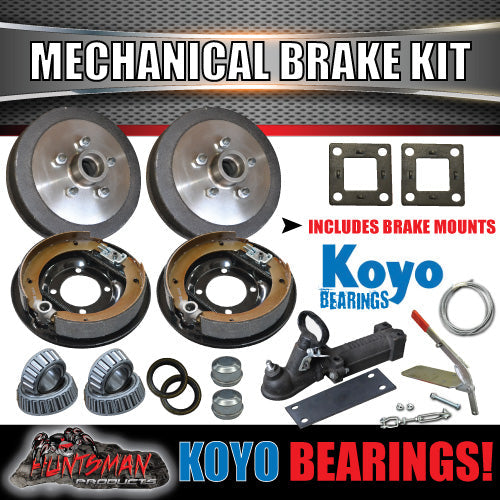

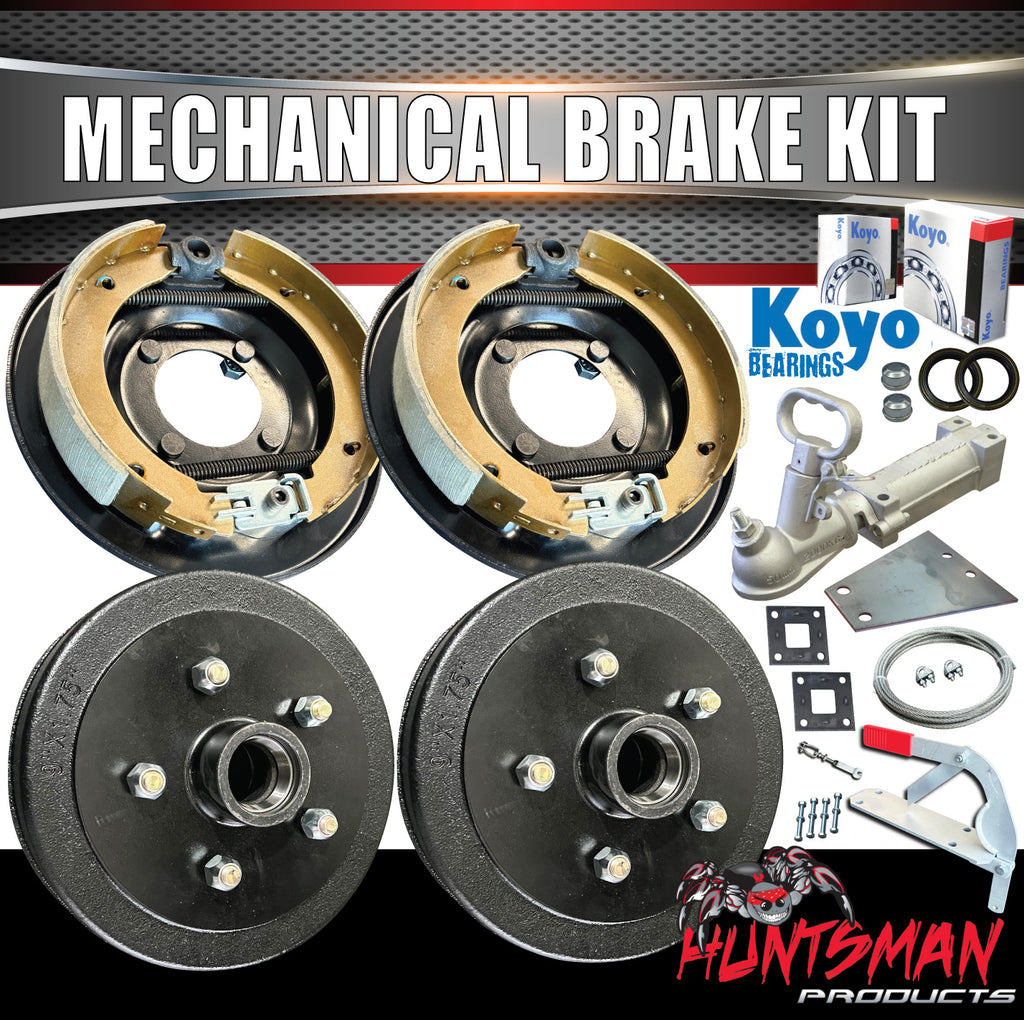

FULL KIT INCLUDES

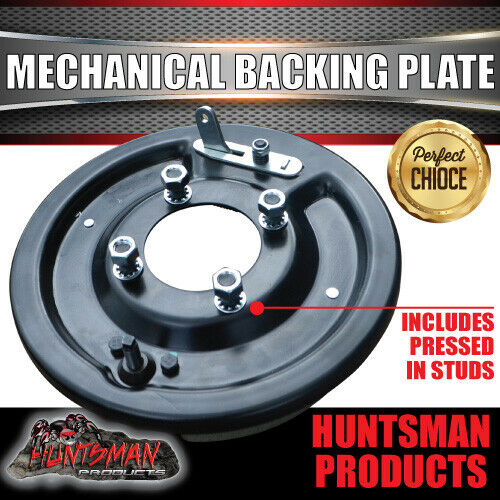

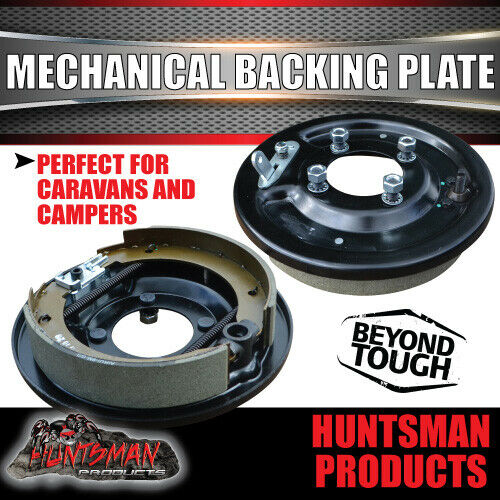

1X LEFT HAND 9" BRAKE MECHANICAL BACKING PLATE
1X RIGHT HAND 9" BRAKE MECHANICAL BACKING PLATE

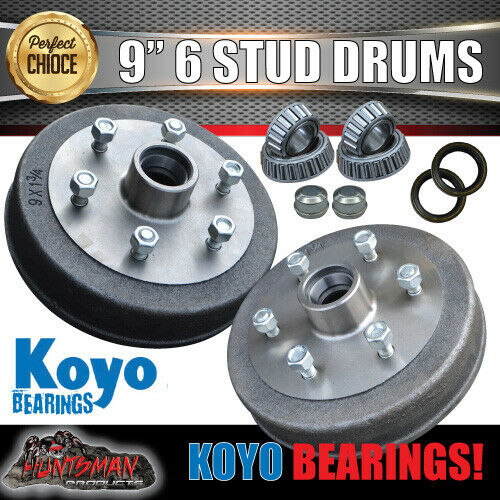

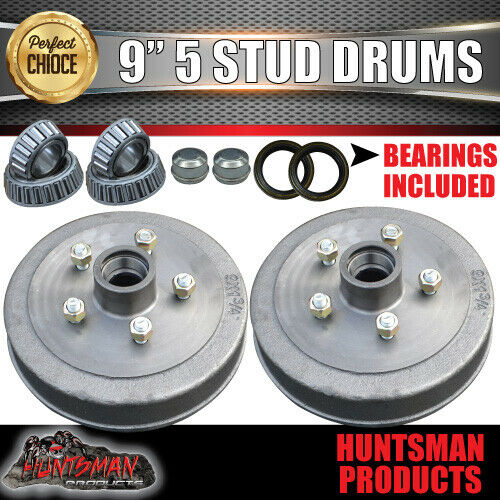

2X 9" S.G CASTING HUB DRUMS WITH CUPS INSERTED. COMES WITH WHEEL NUTS TO SUIT STUD PATTERN PROVIDED
2X JAPANESE KOYO LM OR SLIMLINE BEARING SETS. 2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X DUST SEALS, 2X DUST CAPS (see bearing options below)

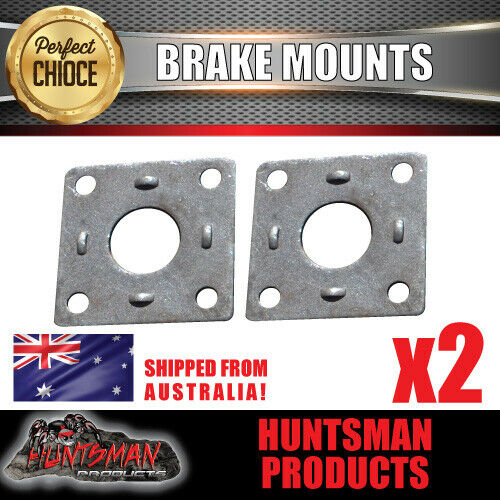

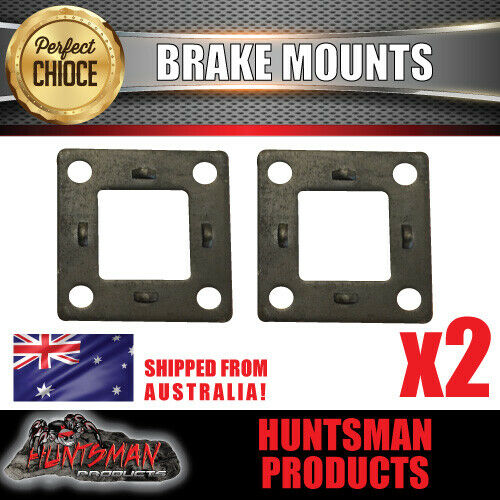

2X MECHANICAL BRAKE MOUNTS TO SUIT AXLE THICKNESS. AVAILABLE IN 39MM ROUND, 40MM SQUARE, 45MM ROUND, 45MM SQUARE & 50MM SQUARE

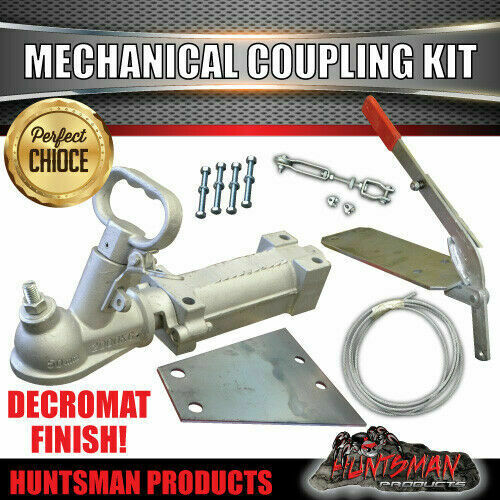

1X 2000KG 4 HOLE OVERRIDE 50mm BALL COUPLING
1X GALVANISED MECHANICAL BASE PLATE AND LEVER
4X HIGH TENSILE BOLTS WITH NYLOC NUTS
4 HOLE WELD ON COUPLING BASE PLATE
8 METRES 4MM HAND BRAKE CABLE (let us know if longer is required)
2X CABLE CLAMPS
1X CABLE ADJUSTER AND STAINLESS BOLT WITH NYLOC NUT


INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)
WIDTH OF AXLE: 39MM ROUND, 40MM SQUARE, 45MM ROUND OR 45MM SQUARE


BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


STUD PATTERN:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches

6 STUD LANDCRUISER
--- PCD: 6x139.7mm
--- Stud Thickness: 1/2" Inches
