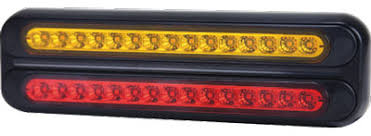

Roadvision LED Combination Rear Ultra Slim Strip Light

SKU : 193385698538
$66.00

Available



Details

COMBINATION LAMPS BR70 SERIES

X1 BR70AR STRIP LIGHT

ROADVISION’s BR70 Series LED signal lamps are now available in a twin combination lamp configuration. Using ultra-slim (28mm) strip lamps incorporated into a twin housing, the BR70AR is a simple DIY trailer lighting solution. Designed for applications where space is at a premium, they deliver the durability of maintenance free LED technology and greater visibility providing increased safety. BR70’s are designed to be easily attached to horizontal or vertical mounting surfaces with a simple twin stud surface mount design. Roadvision’s BR70AR strip combination lamps produce more light output than incandescent lamps whilst drawing a fraction of the current. Constructed with durable polycarbonate lenses and high impact ABS housings, these lamps are dust & water proof and totally maintenance free with a lifespan rated at 100,000hrs. With ROADVISION it’s FIT & FORGET.

PRICE IS FOR 1 ONLY ROADVISION BR70AR STRIP LIGHT


RANGE FEATURES

  • Multi-volt 10-30V DC input & low current draw
  • Brighter than conventional incandescent systems
  • 100,000 hour LED life span with solid state technology
  • Maintenance free
  • Sealed polycarbonate lens & ABS housing
  • Water and dust proof
  • Supplied pre-wired with 300mm LEDLink Connector
  • Simple surface mount designs
  • ADR/ECE approved for all functions

BR70AR SPECIFICATIONS

Description - Rect Stop/Tail/Ind Combination Lamp
Functions - Stop/Tail/Indicator
Voltage Input - 10-30V DC
Number of LED's - Stop/Tail - 15 LED's, Indicator - 15 LED's
Current Draw Amps - Ind - 0.1A, S/T - 0.1/0.05A @ 13.8V
Dimensions AxBxC - 266x78x26mm
Lens Construction - Polycarbonate
Housing Construction - ABS High Impact
Mounting Type - Surface Mount
Mounting Hole /Cut Out - 160mm Stud Centres
Cable Length - 300mm LEDLink Connector
ADR Approval - Ind - ECE E4-6R-0161904, S/T - ECE E4-7R-028536
