6 Leaf 1200kg Galvanised / Dacromet 45mm Trailer Slipper springs U Bolt & Hanger Kit

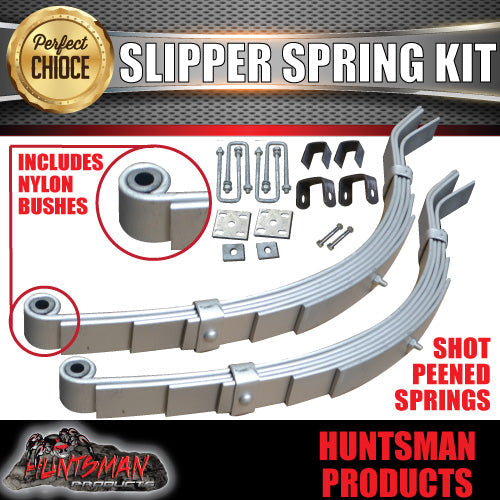

1200KG DECROMAT FINISH 6 LEAF 45mm SLIPPER SPRINGS SET
INCLUDING HANGER AND U BOLT KIT
Choice of 40mm, 45mm or 50mm U bolts

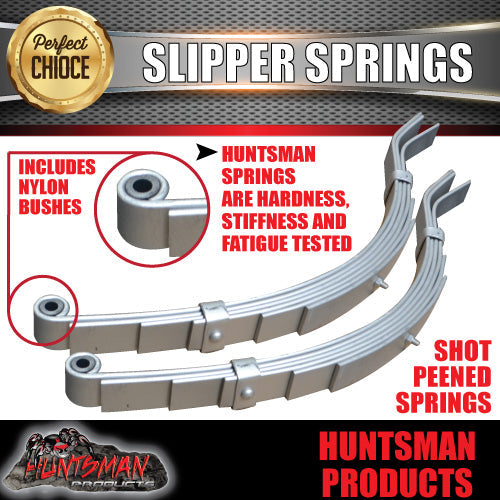

2X 45MM X 6MM 6 LEAF DACROMET FINISH SLIPPER SPRINGS (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
2X REAR HANGERS
2X FRONT EYE HANGERS
2X STAINLESS STEEL SLIPPER HANGER BOLTS with spring washers and nuts
4X 40MM, 45MM OR 50MM SQUARE X 130MM U BOLTS WITH SPRING WASHERS AND NUTS (1/2 BSW) GALVANISED
2X 45 X 50 X 8MM SLOTTED FISH PLATE GALVANISED FINISH
2X GALVANISED AXLE PADS
Please advise on ordering if you require 40mm , 45mm or 50mm U bolts


RATED: 1200KG PER PAIR
SPRING LENGTH: 780MM OVERALL
CENTRE OF EYE TO END OF SPRING LENGTH: 760MM
BUSH: NYLON BUSH INSERTED TO SUIT 1/2" BOLT
SPRING WIDTH: 45MM
LEAF THICKNESS: 6MM
(SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
