Trailer Rescue Kit , Spare Wheel Holder inc hub & L/M bearings. Dolly Wheel

Trailer Rescue Kit including hub and bearing kit
L/M Stub (suited for holden bearings)
available in Ford, Commodore or Holden HT

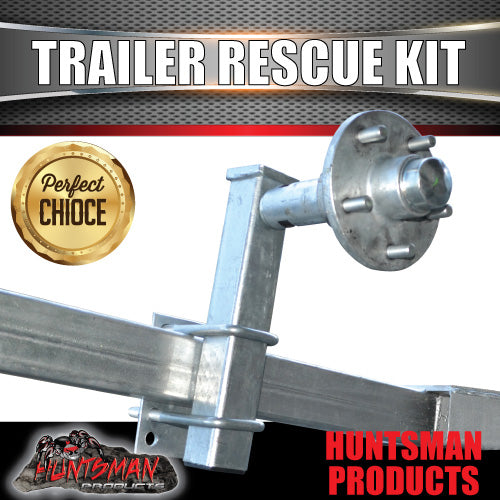

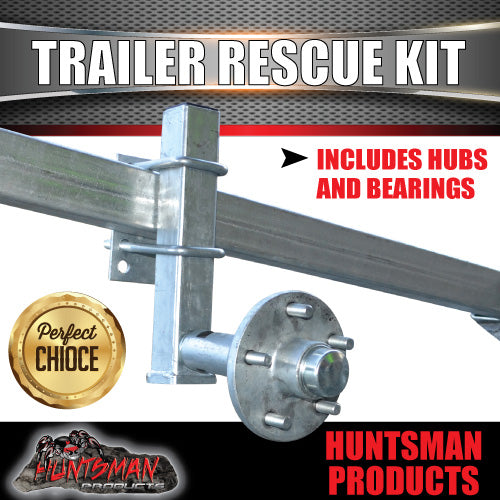

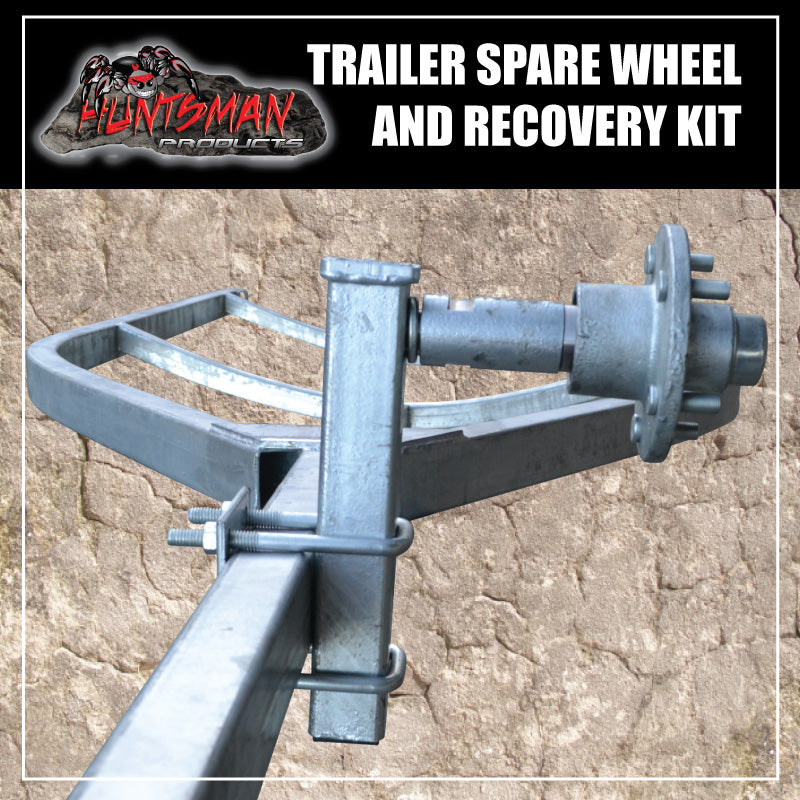

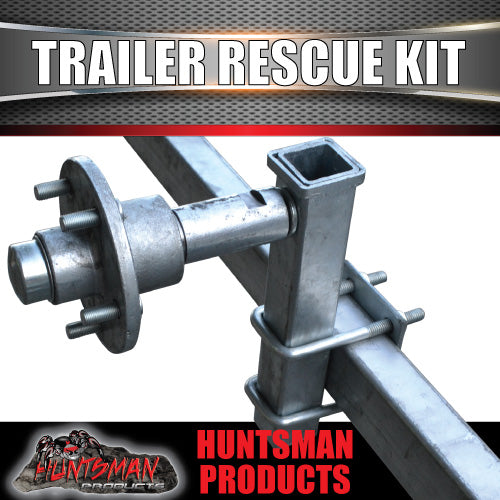

How Does The Rescue Kit Work?
The Huntsman Products Rescue Kit gives a combination of a spare wheel holder, spare hub or disc with pre greased bearing kit (should a bearing collapse or fail) or a very handy dolly or jockey wheel using your spare tyre across sand or soft grounds.

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) +$10
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$10

IN THIS KIT:
1X GLAVANISED 39MM STUB AXLE INC CASTLE NUT AND SPRING PIN
1X GALVANISED SPARE WHEEL STEM
2X GALVANISED U BOLT AND SUPPORT PLATE
1X GALVANISED LAZY HUB INC L/M BEARING KIT
ALL NUTS AND WASHERS SUPPLIED

BEARING KITS INCLUDE
1X INNER BEARING ID:31.7MM (LM67048)
1XOUTER BEARING ID:19MM (LM11949)
1X OUTER BEARING CUP (already inserted)
1X INNER BEARING CUP (already inserted)
1X LM MARINE REAR SEAL
1X DUST CAP

HOW DO I KNOW WHICH STUD PATTERN I HAVE?
MEASURE FROM CENTRE OF ONE STUD TO THE NEXT STUD
64MM = HT HOLDEN
68MM = FORD
70MM = HQ

Kit Does Not Come Assembled

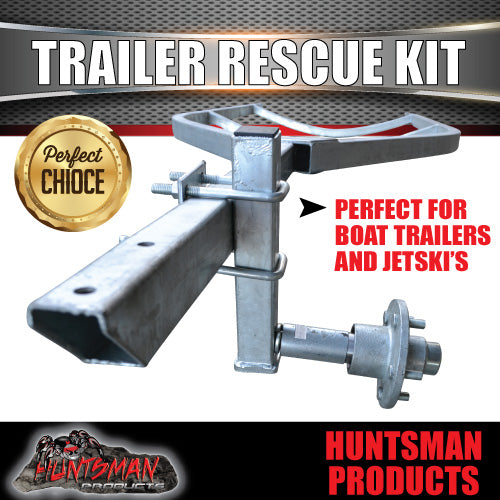

Can be mounted in various positions including Draw Bar, A Frame and Winch posts
Can be suited for 50x50, 75x50, 100x50 and 80x80mm RHS
koyo Japanese Bearings Available $20
