1400Kg 45mm Solid Electric Braked Trailer Carvan Axle + Handbrake Axles 78" -96"

SKU : 175736491700-45
$490.00

Available



Details

1400KG 45MM SQUARE SOLID COMPLETE ELECTRIC BRAKED AXLE
WITH HAND BRAKE LEVERS
AXLE LENGTHS 78" - 96" (For shorter axles SKU: 360703760080 )


AVAILABLE LENGTHS
78", 1980mm TIP TO TIP (1880M HUB FACE TO HUB FACE)
79", 2005mm TIP TO TIP (1905M HUB FACE TO HUB FACE)
81", 2060mm TIP TO TIP (1960M HUB FACE TO HUB FACE)
83", 2110mm TIP TO TIP (2010M HUB FACE TO HUB FACE)
85", 2160mm TIP TO TIP (2060M HUB FACE TO HUB FACE)
87", 2210mm TIP TO TIP (2110M HUB FACE TO HUB FACE)
89", 2260mm TIP TO TIP (2160M HUB FACE TO HUB FACE)
91", 2310mm TIP TO TIP (2210M HUB FACE TO HUB FACE)
93", 2360mm TIP TO TIP (2260M HUB FACE TO HUB FACE)
94", 2385mm TIP TO TIP (2285M HUB FACE TO HUB FACE)
96", 2435mm TIP TO TIP (2335M HUB FACE TO HUB FACE)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)
D40/NP300/PATHFINDER (6/114.3 PCD, 1/2" STUDS AND NUTS)
F100/JEEP (5/127 PCD, 1/2" STUDS AND NUTS) (poa)

THIS AXLE USED BY MANY TRAILER, CARAVAN AND CAMPER TRAILER MANUFACTURES AUSTRALIA WIDE.

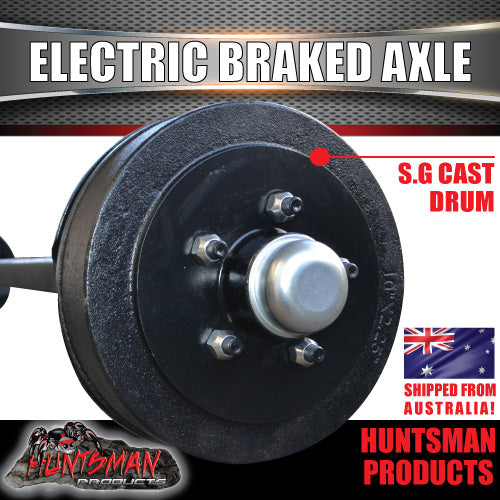

Axle comes complete as pictured



SLIMLINE BEARINGS FITTED
INNER BEARINGS ID:34.9MM (L68149)
OUTER BEARINGS ID:22MM (L12710)

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $40.0 (click on link below)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
