Trailer Rescue Kit , Spare Wheel Holder inc hub & S/L bearings. Dolly Wheel

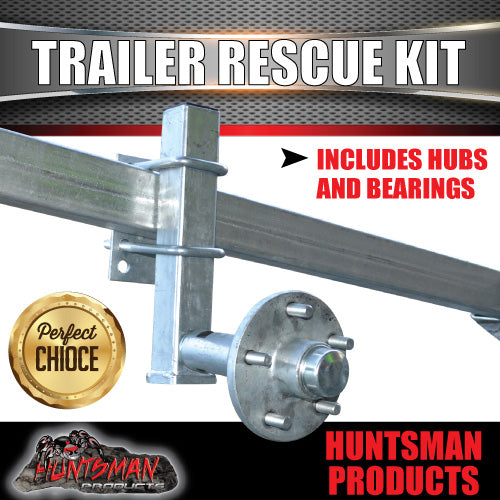

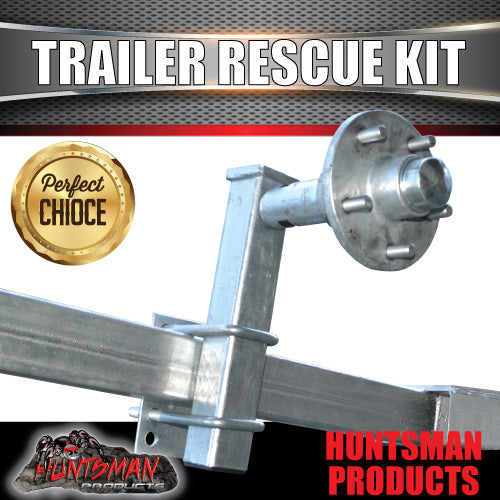

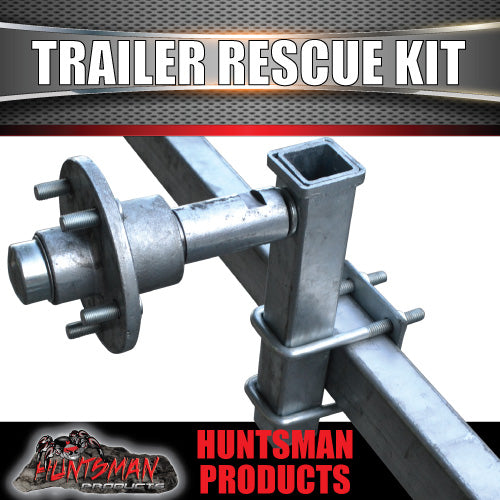

Trailer Rescue Kit including hub and bearing kit
S/L Stub (suited for ford bearings)

How Does The Rescue Kit Work?

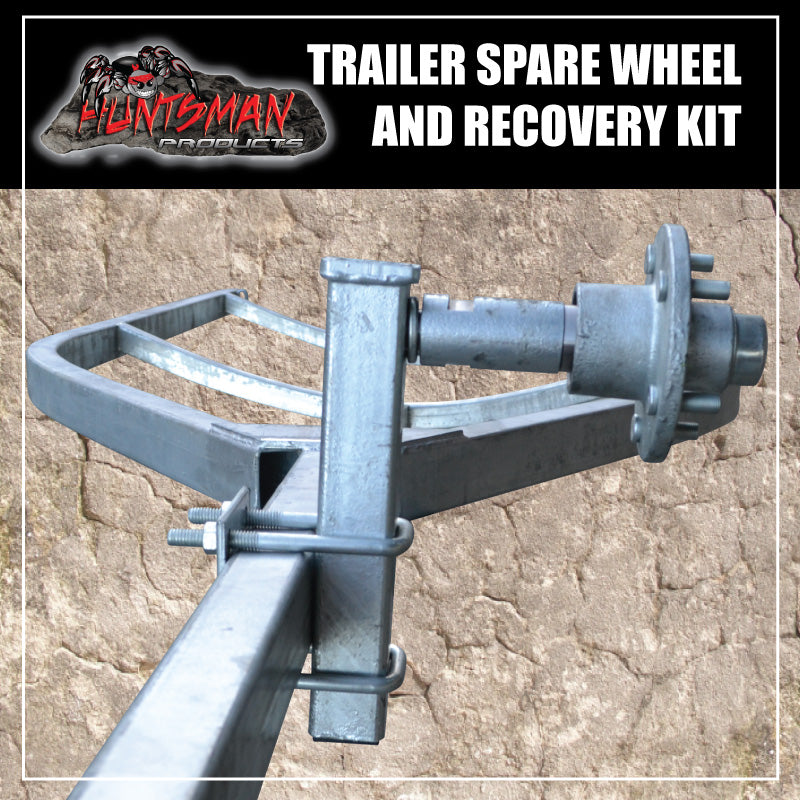

The Huntsman Products Rescue Kit gives a combination of a spare wheel holder, spare hub or disc with pre greased bearing kit (should a bearing collapse or fail) or a very handy dolly or jockey wheel using your spare tyre across sand or soft grounds.

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) +$10
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$10


IN THIS KIT:
1X GLAVANISED 45MM STUB AXLE INC CASTLE NUT AND SPRING PIN
1X GALVANISED SPARE WHEEL STEM
2X GALVANISED U BOLT AND SUPPORT PLATE
1X GALVANISED LAZY HUB INC S/L BEARING KIT

BEARING KIT INCLUDES
1X INNER BEARINGS ID:34.9MM (L68149)
1XOUTER BEARINGS ID:22MM (L12710)
1X OUTER BEARING CUPS (already inserted)
1X INNER BEARING CUPS (already inserted)
1X SLIMLINE MARINE REAR SEALS
1X DUST CAPS

HOW DO I KNOW WHICH STUD PATTERN I HAVE?
MEASURE FROM CENTRE OF ONE STUD TO THE NEXT STUD
64MM = HT HOLDEN
68MM = FORD
70MM = HQ

Kit Does Not Come Assembled

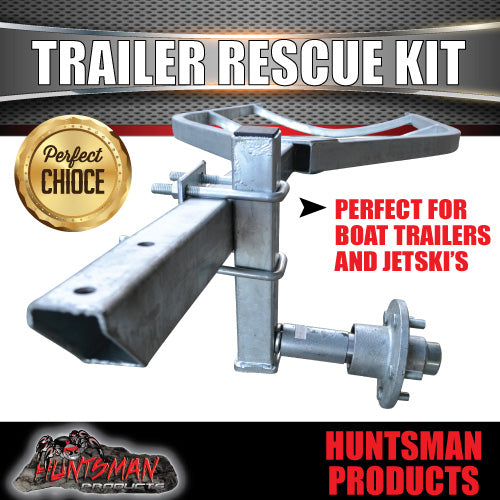

Can be mounted in various positions including Draw Bar, A Frame and Winch post
Can be suited for 50x50, 75x50, 100x50 and 80x80mm RHS
