10" 5 Stud Trailer Electric Drum Brake Kit-2

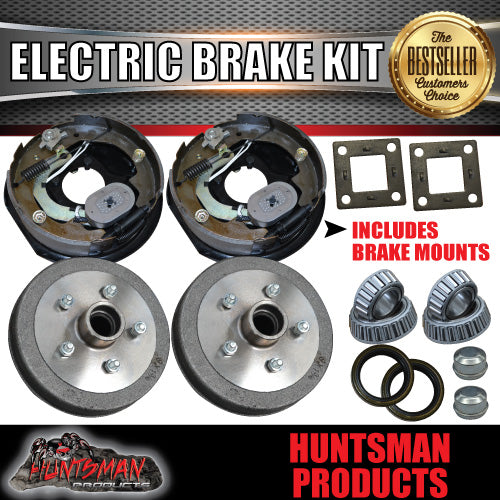

10" ELECTRIC DRUM BRAKE KIT
AVAILABLE IN: FORD, HT, HQ, COMMODORE & 5 STUD LANDCRUISER
(6 STUD KITS AVAILABLE IN OUR STORE)

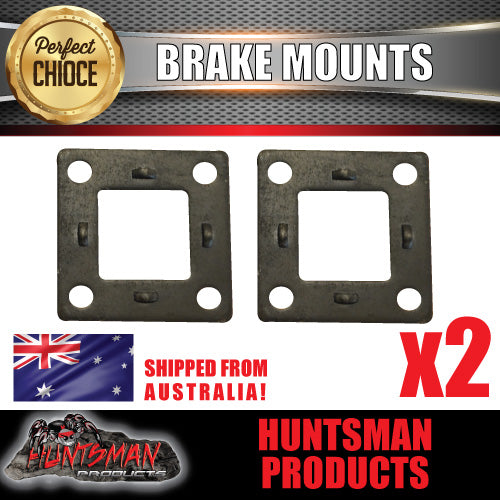

Please note. This kit comes with no weld on brake mounts

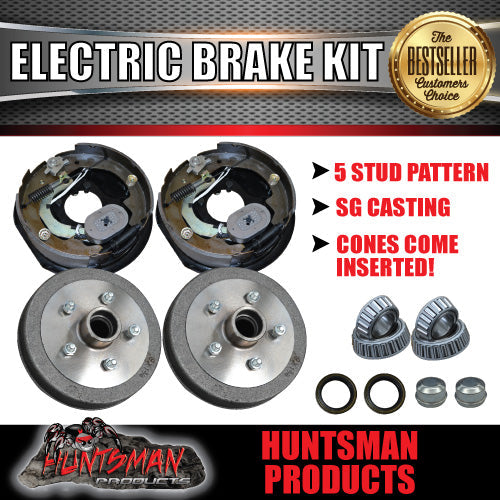

FULL KIT INCLUDES

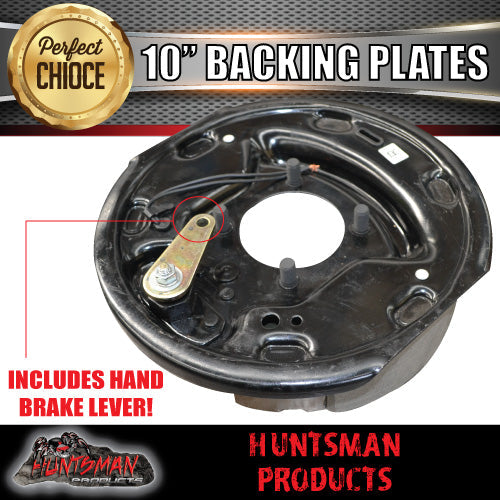

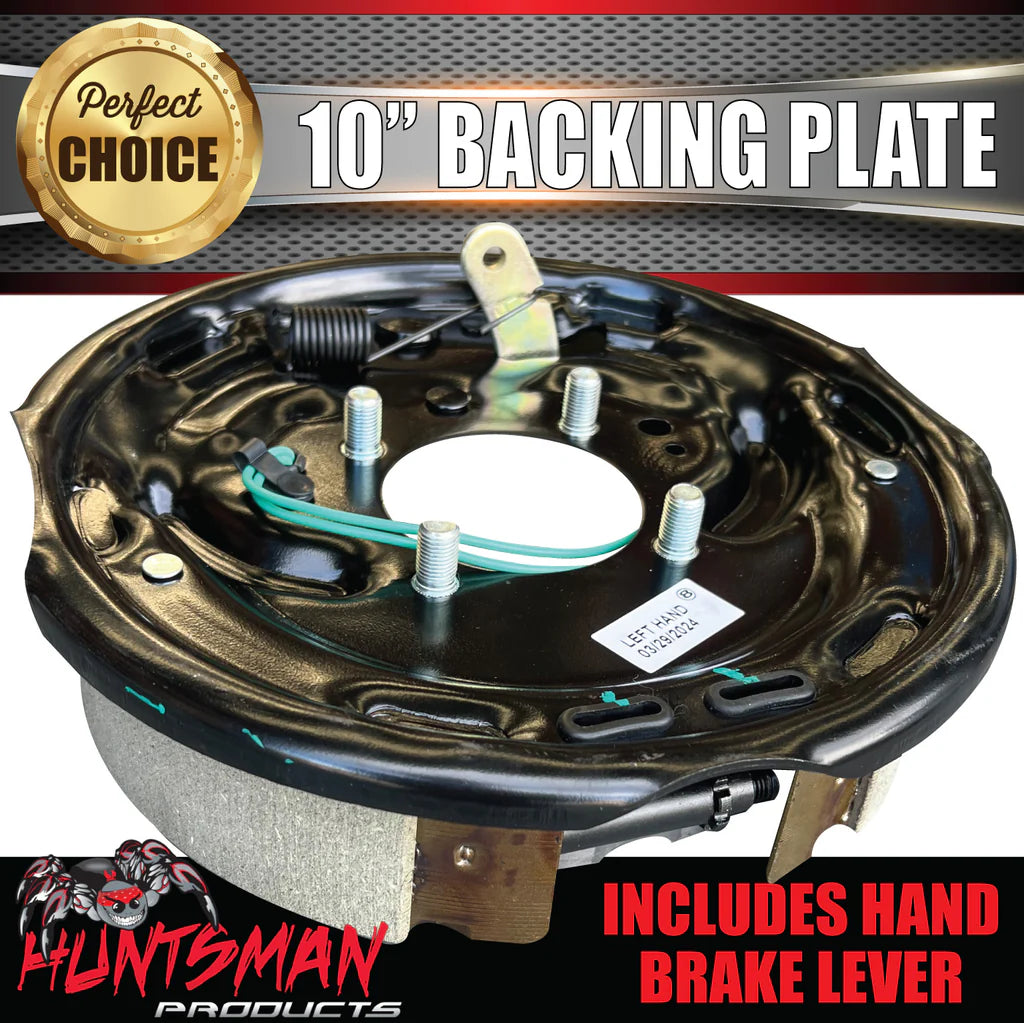

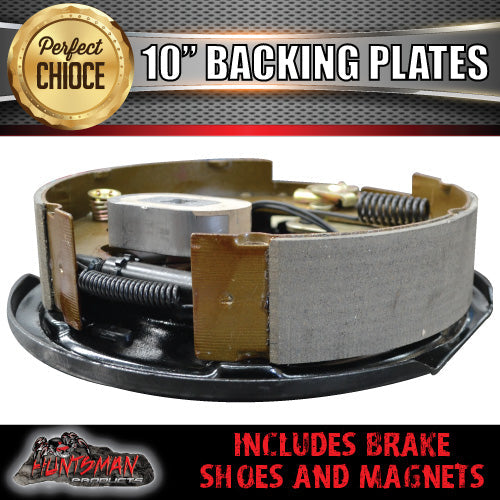

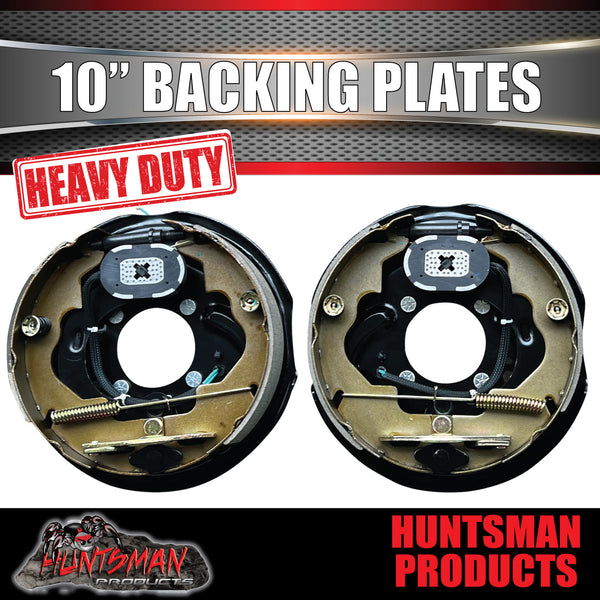

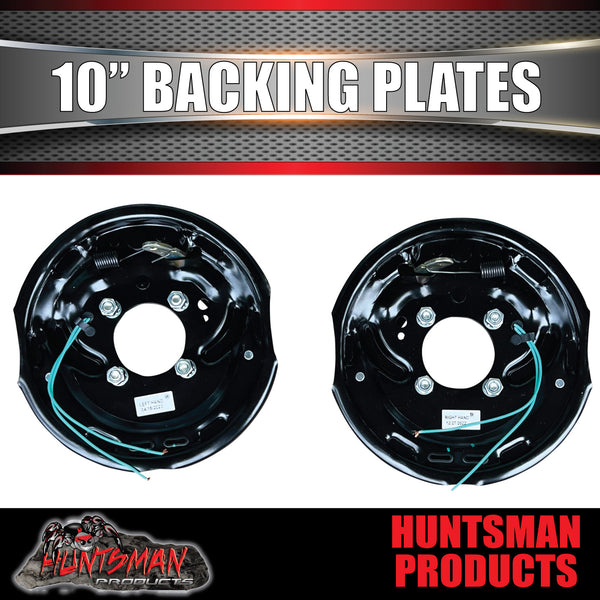

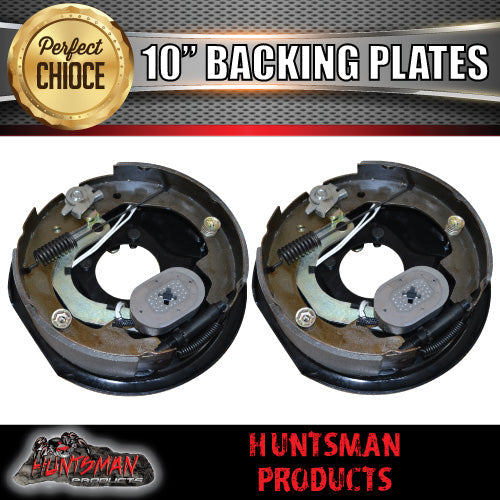

1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
2X 10" HUB DRUMS (AVAILABLE TO SUIT 5 STUD FORD, 5 STUD COMMODORE, HQ HOLDEN, 5 STUD HT HOLDEN OR 5 STUD LANDCRUISER)
S.G CASTING (MUCH STRONGER THEN GREY IRON)
drums come with cups already inserted.
2X BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X DUST SEALS, 2X DUST CAPS)

INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)

BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49

STUD PATTERNS:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches

if ordering an electric braked kit off us please look at our brake controllers which will be combined in your postage
tekonsha IQ item: 170774956808

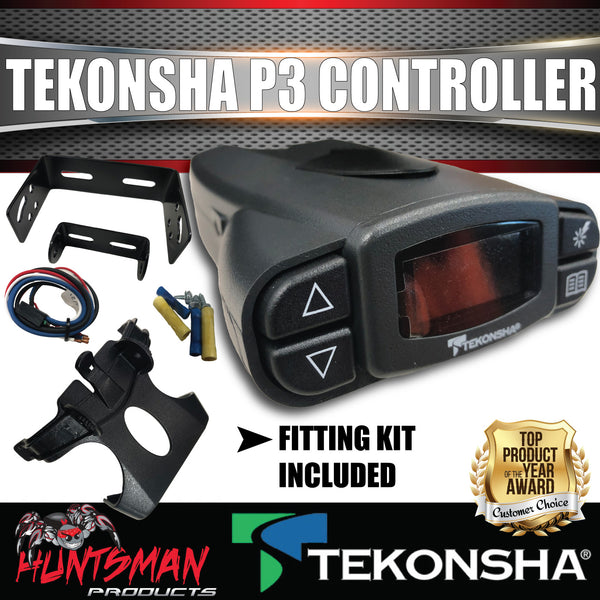

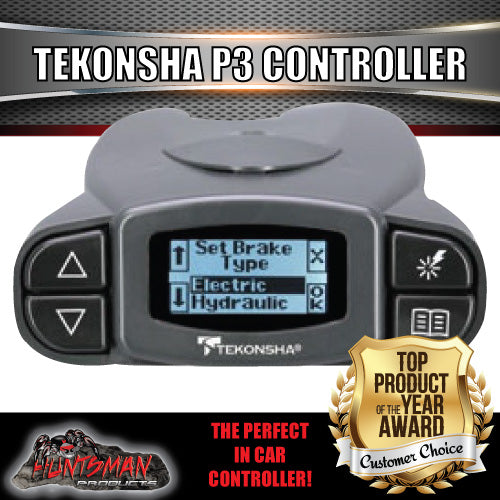

tekonsha P3: 362897452478

OPTIONS
UPGRADE TO JAPANESE BEARINGS $50 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"
