5 Stud 10" Trailer Electric Brake, Coupling Kit & p3 Controller + Japanese Bearings!.

SKU : 192885959165-5
$613.00

Available



Details

10" ELECTRIC DRUM BRAKE AND COUPLING KIT
AVAILABLE TO SUIT: FORD, HT, HQ, COMMODORE & 5 STUD LANDCRUISER
WITH JAPANESE KOYO BEARINGS
Please note: this kit comes with no weld on brake mounts

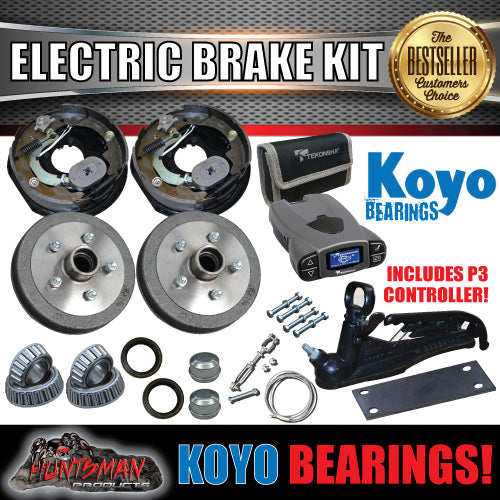

FULL KIT INCLUDES

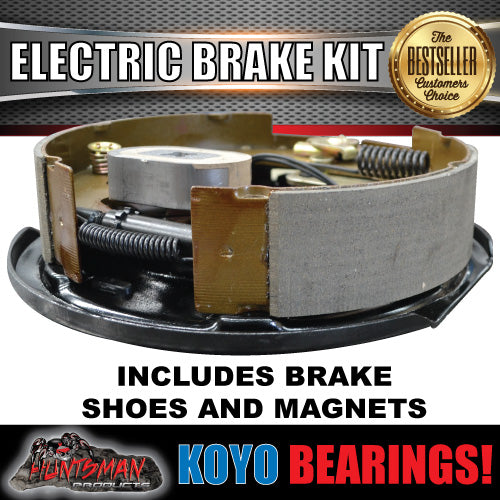

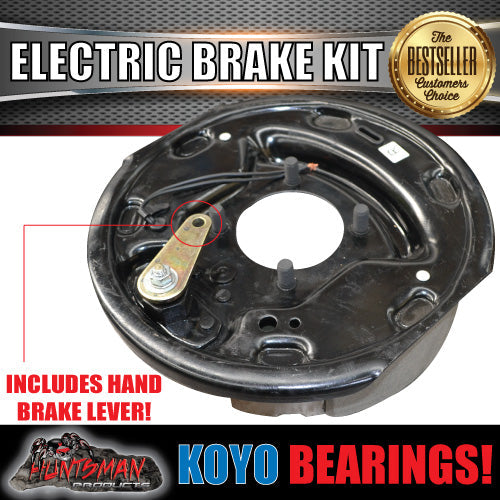

1X LEFT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
1X RIGHT HAND 10" BRAKE BACKING PLATE WITH HAND BRAKE LEVER
2X 10" HUB DRUMS ( 5 STUD FORD, 5 STUD COMMODORE, HQ, 5 STUD HT)
S.G CASTING (MUCH STRONGER THEN GREY IRON)
drums come with cups already inserted.
2X JAPANESE KOYO BEARING SETS (2X LARGE BEARINGS, 2X SMALL BEARINGS, 2X LARGE CUPS, 2X SMALL CUPS, 2X DUST SEALS, 2X DUST CAPS)

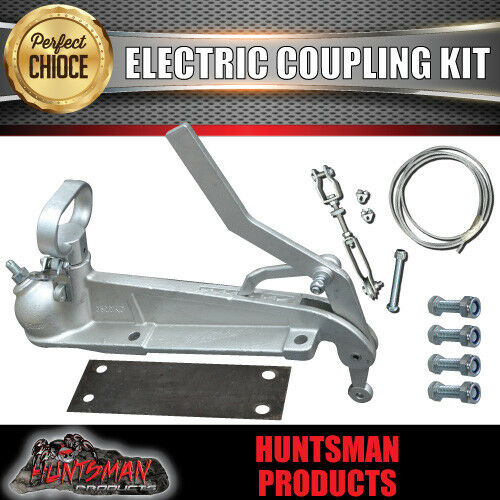

1X 3500KG BLACK ELECTRIC BALL COUPLING, BASE PLATE, 4X HIGH TENSILE BOLTS WITH NYLOC NUTS, 8 METRES CABLE, 1X ADJUSTER AND 2X CABLE CLAMPS

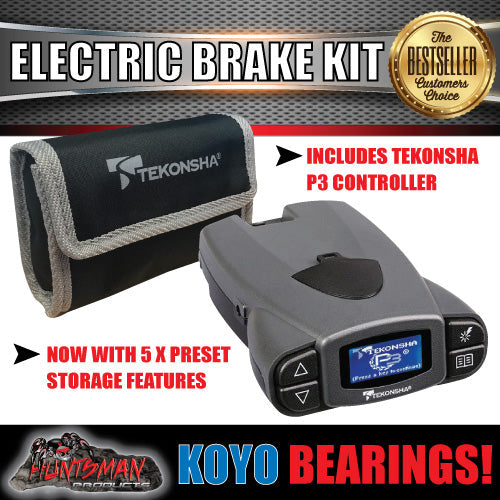

1X TEKONSHA P3 BRAKE CONTROLLER

INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
BEARING STYLE (LM OR SL)
STUD PATTERN



BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


STUD PATTERNS:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

5 STUD LANDCRUISER
--- PCD: 5x150mm
--- Stud Thickness: 9/16" Inches

if ordering an electric braked kit off us please look at our brake controllers which will be combined in your postage
tekonsha IQ item: 170774956808
tekonsha P3: 190635032563
