12" Parallel 1600Kg 6 Stud Trailer Caravan Mechanical Disc Brake & coupling kit

1600Kg PARALLEL 12" MECHANICAL DISC BRAKE KIT
WITH COMPLETE COUPLING KIT
(6 STUD LAND CRUISER PATTERN)


STUD PATTERNS AVAILABLE
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)

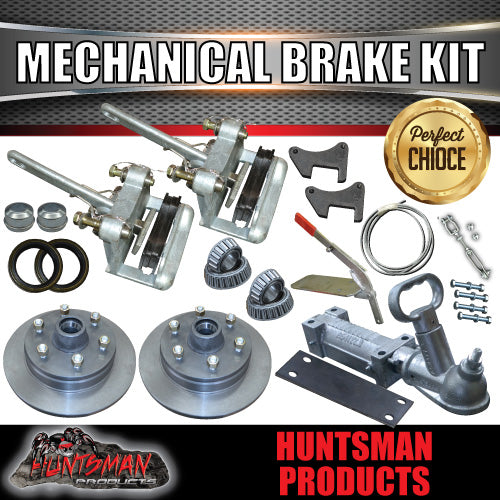

FULL KIT INCLUDES

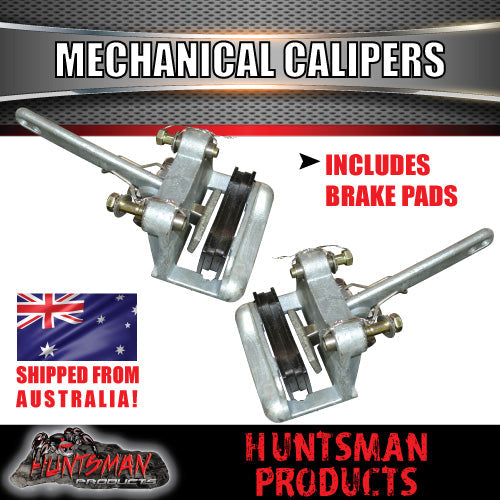

2X GALVANISED MECHANICAL BRAKE CALIPERS WITH MOUNTING BOLTS AND BRAKE PADS ALREADY INSERTED

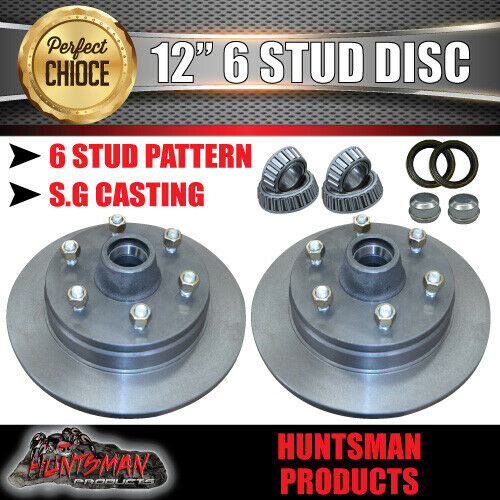

2X NATURAL FINISH PARALLEL 12" 6 STUD MECHANICAL BRAKE DISCS WITH PARALLEL CUPS INSERTED. COMES WITH 1/2" WHEEL NUTS
2X PARALLEL BEARING SETS (2X L68149 INNER, 2X L68149 OUTER, 2X S/L DUST SEALS, 2X 63MM DUST CAPS)
2X LARGE LANDCRUISER SIZE MECHANICAL DISC BRAKE FLANGES (available in 45mm square or 50mm square)

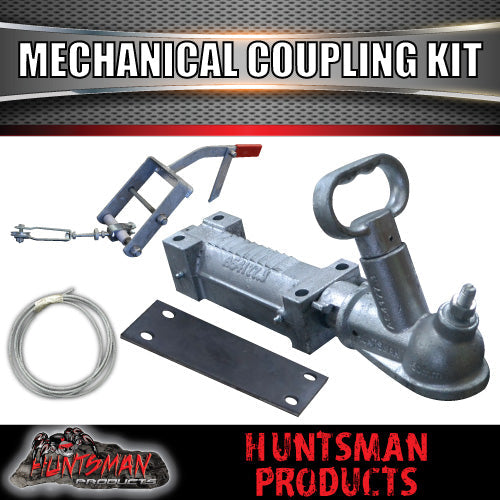

1X 2000KG 4 HOLE OVERRIDE 50mm BALL COUPLING
1X GALVANISED MECHANICAL BASE PLATE AND LEVER
4X HIGH TENSILE BOLTS WITH NYLOC NUTS
4 HOLE WELD ON COUPLING BASE PLATE
8 METRES 4MM HAND BRAKE CABLE (let us know if longer is required)
2X CABLE CLAMPS
1X CABLE ADJUSTER AND STAINLESS BOLT WITH NYLOC NUT

HUBS COME WITH BEARING CUPS INSERTED

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $50.0 (click on link below)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"

INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT)
WIDTH OF AXLE FOR DISC MOUNTS: 40MM SQUARE, 45MM SQUARE OR 50MM SQUARE
