10" Boat Trailer Hydraulic Disc Brake Kit + coupling & hyd Line kit. Jap Bearing

10" HYDRAULIC DISC BRAKE KIT
COMPLETE WITH COUPLING AND HYDRAULIC FITTING KIT
JAPANESE KOYO BEARINGS

STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $115 12" DISCS
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$115 12" DISCS

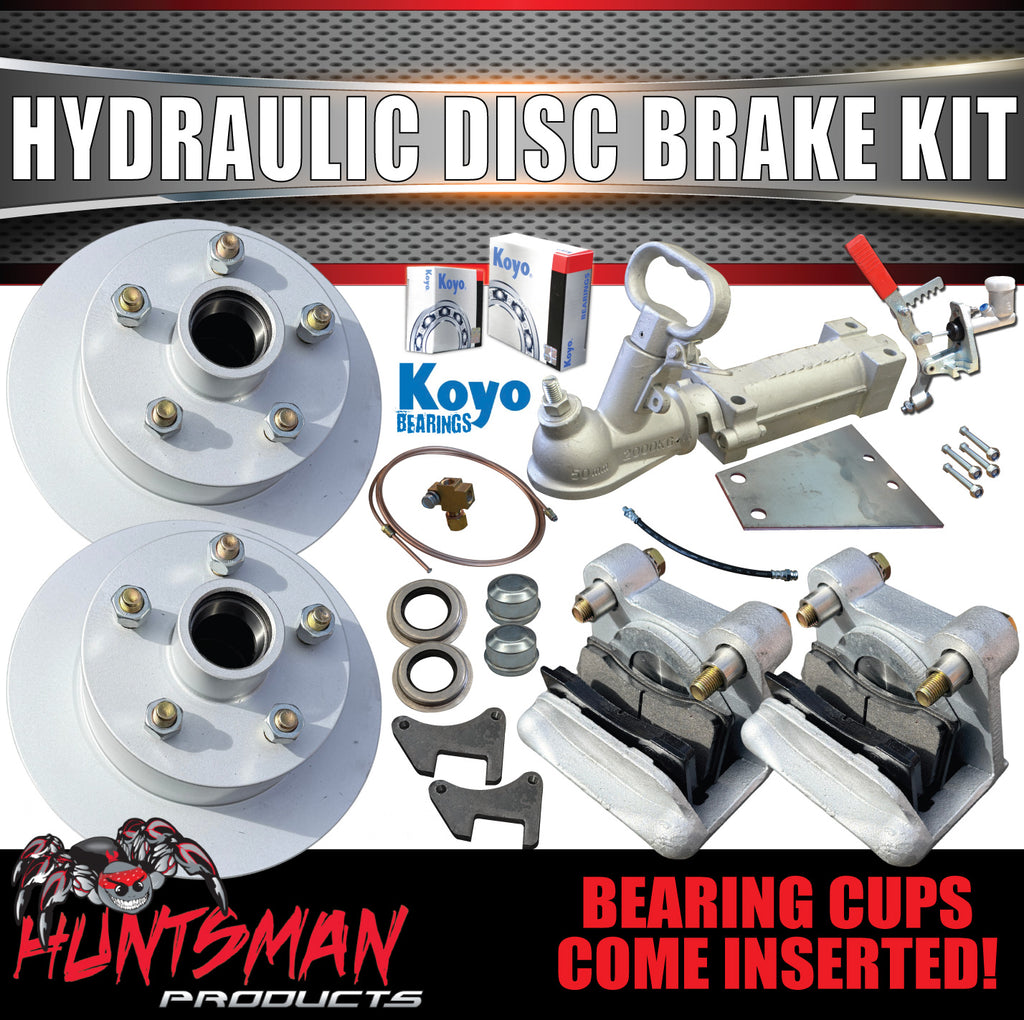

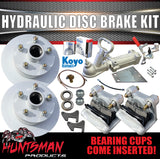

FULL KIT INCLUDES

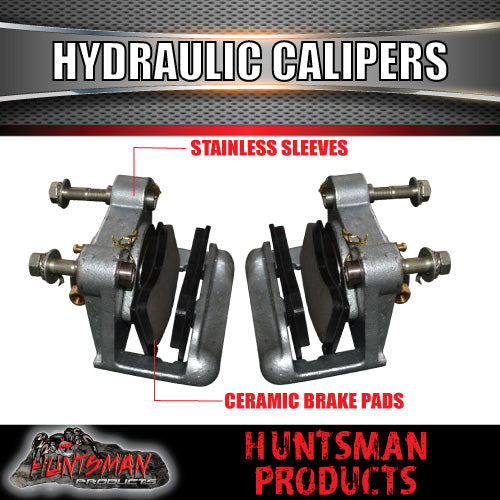

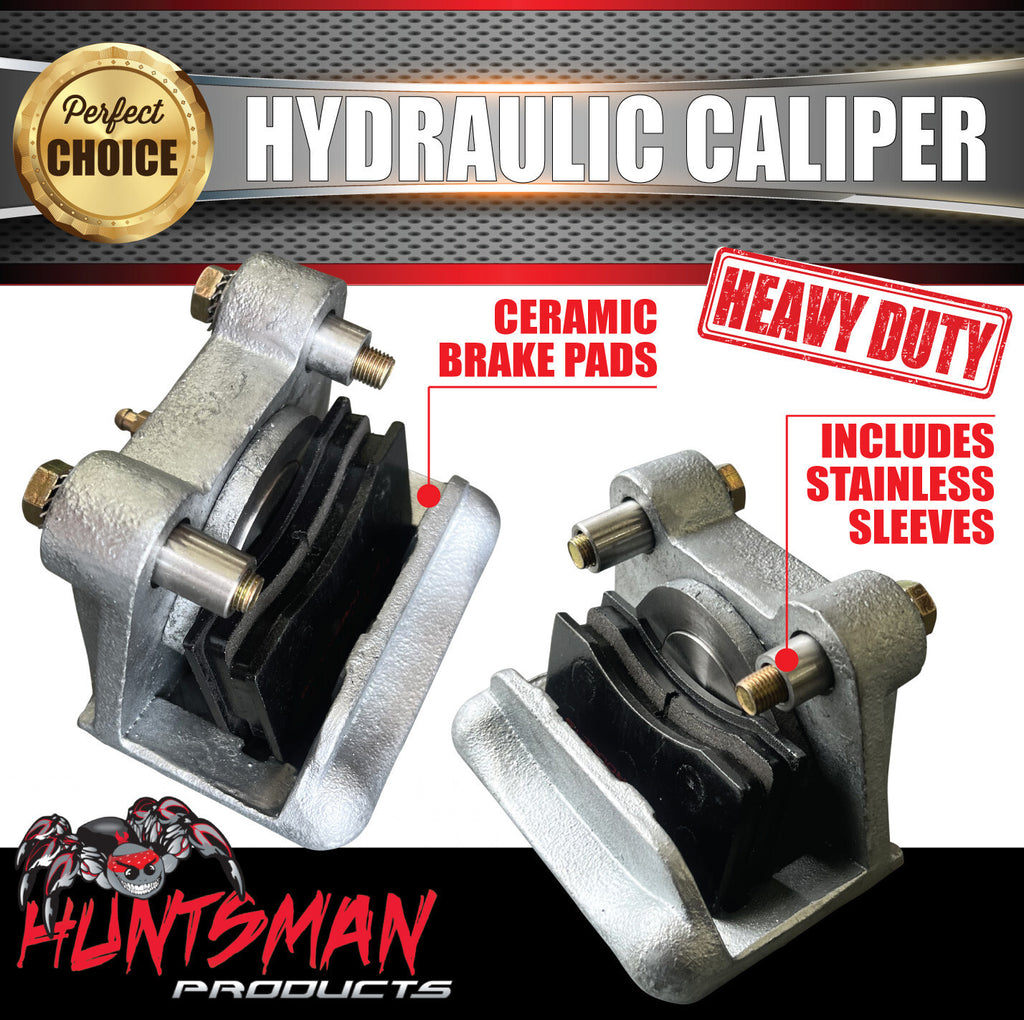

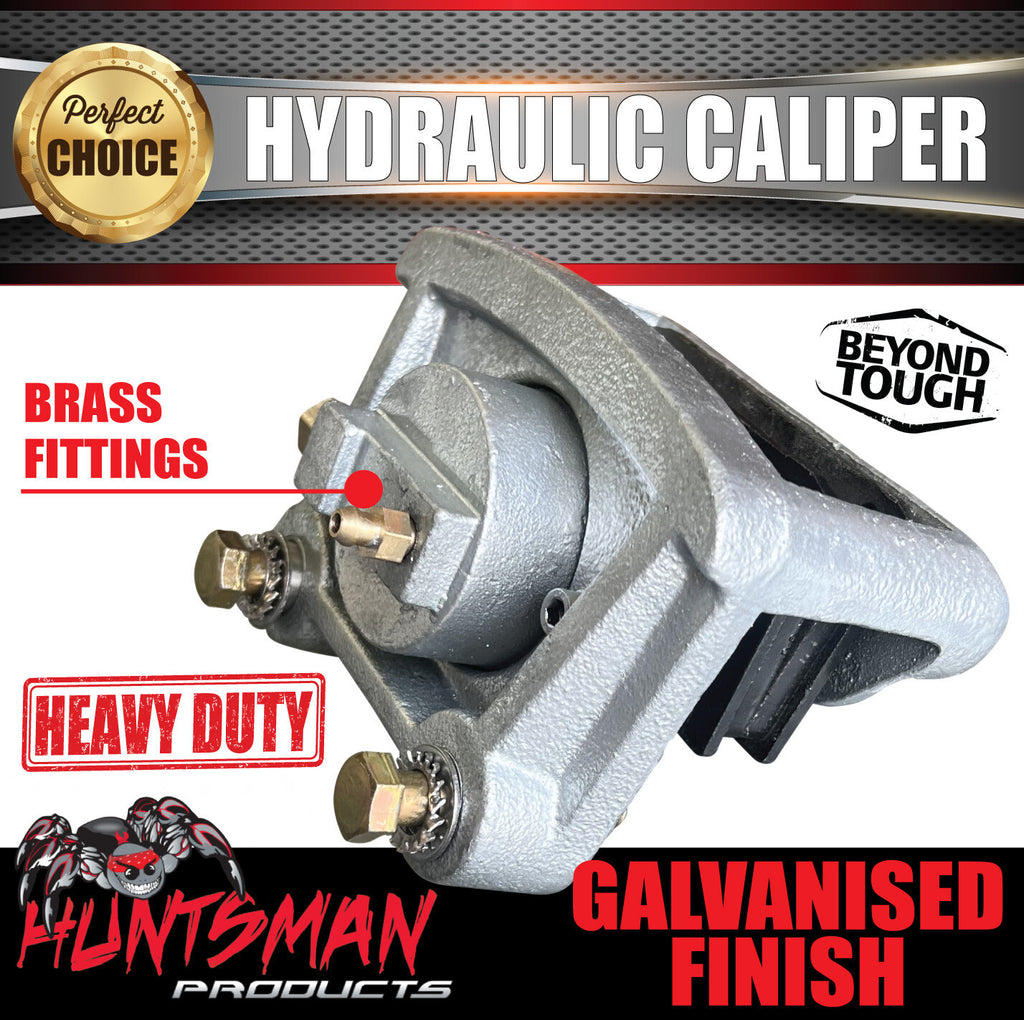

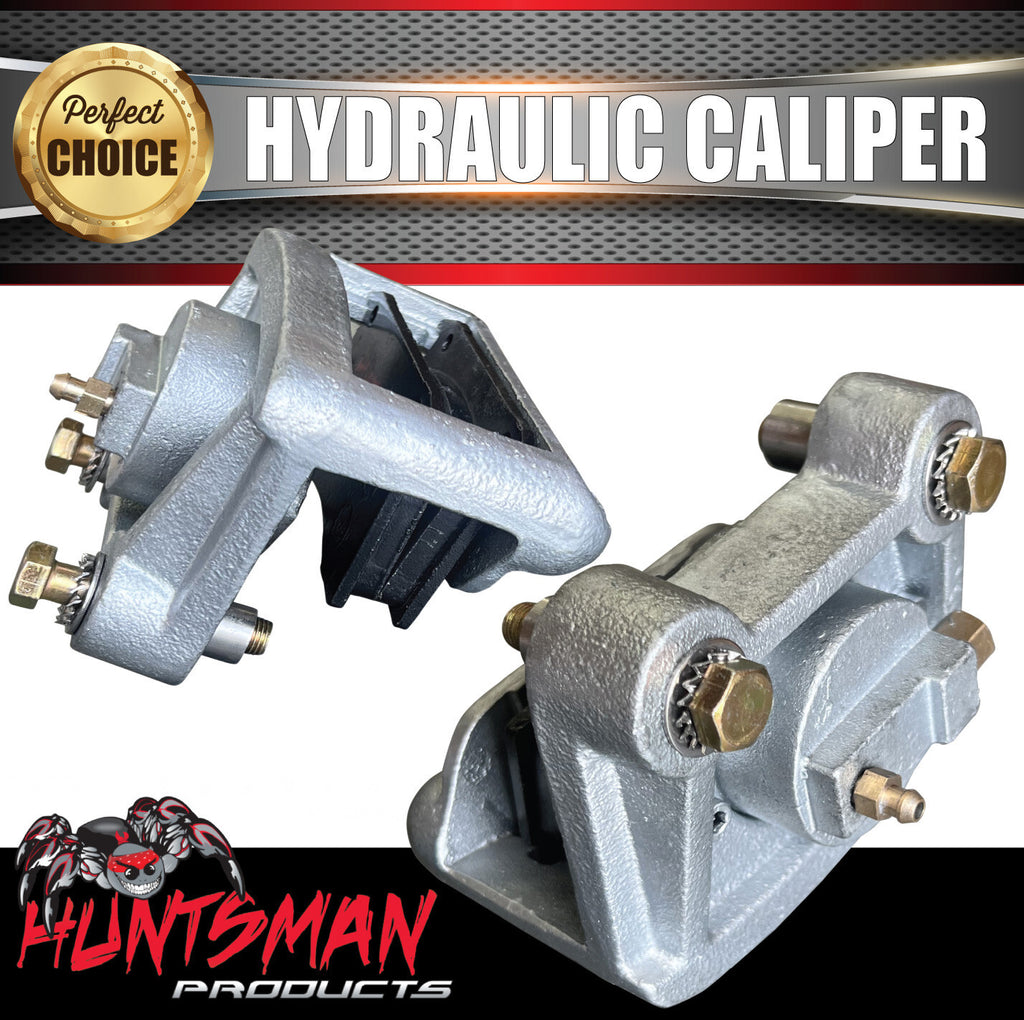

2X GALVANISED HYDRAULIC DISC BRAKE CALIPERS WITH STAINLESS STEEL PISTONS. COMES WITH MOUNT BOLTS AND WASHERS
4X HYDRAULIC DISC BRAKE PADS

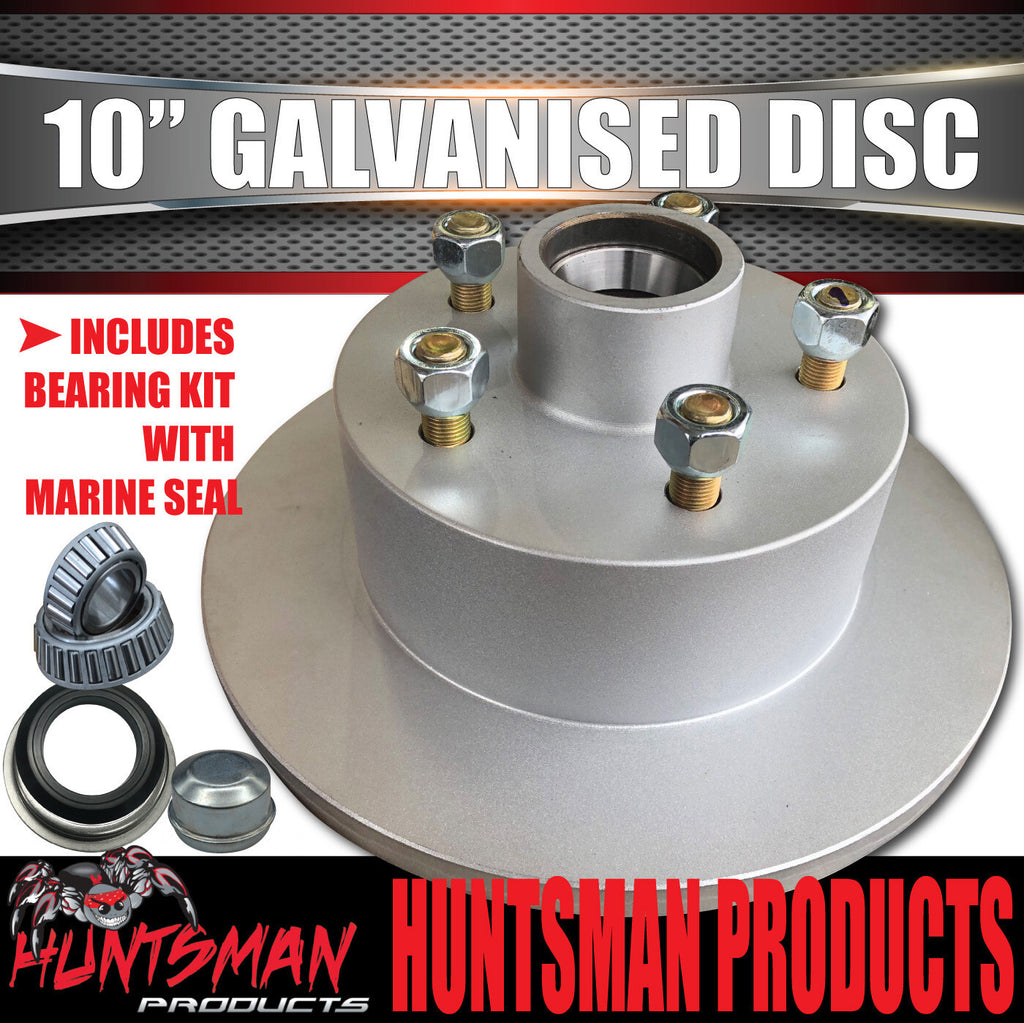

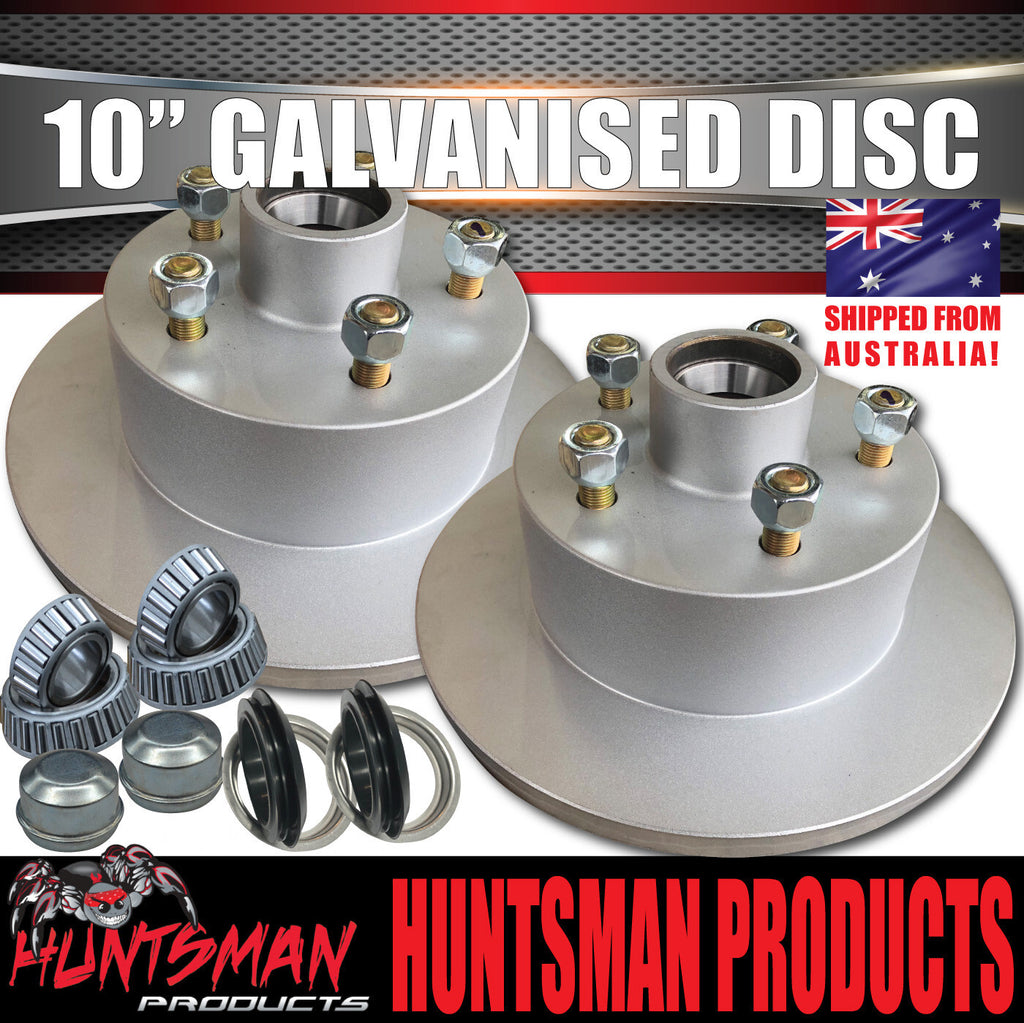

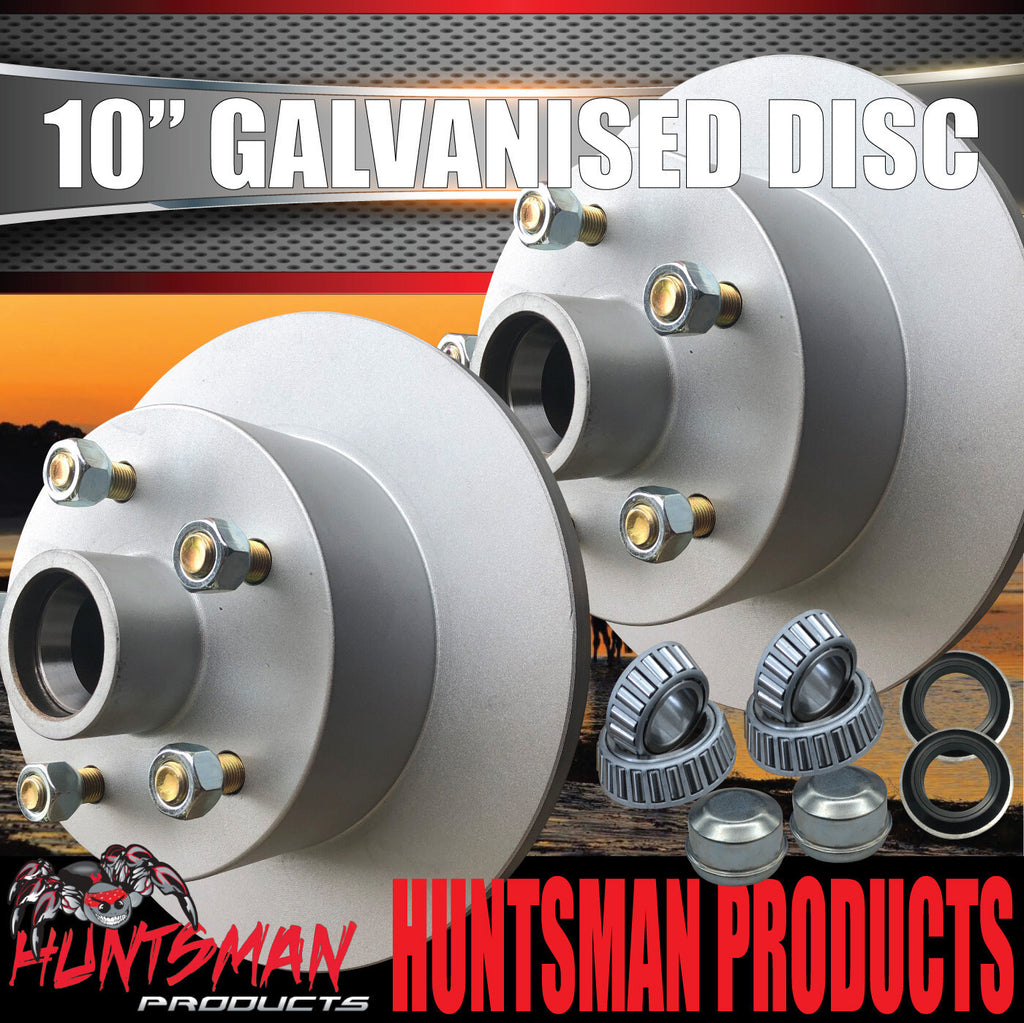

2 X GALVANISED DACROMET 10" HYDRAULIC DISC HUBS WITH CUPS INSERTED. COMES WITH WHEEL NUTS TO SUIT STUD PATTERN PROVIDED
2X WELD ON MOUNTING PLATES (available in 39mm round, 40mm square 45mm round, 45mm square)
2 X JAPANESE KOYO BEARING KITS WITH MARINE SEALS AND DUST CAPS

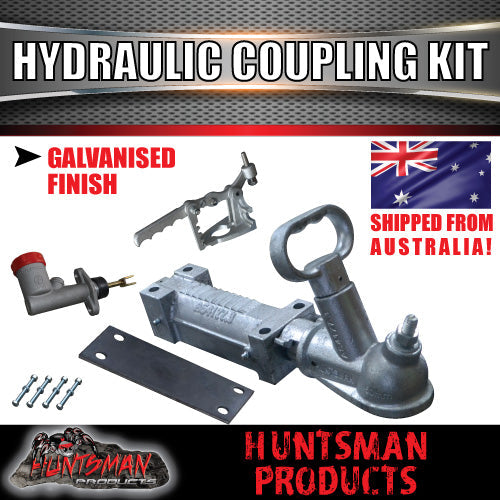

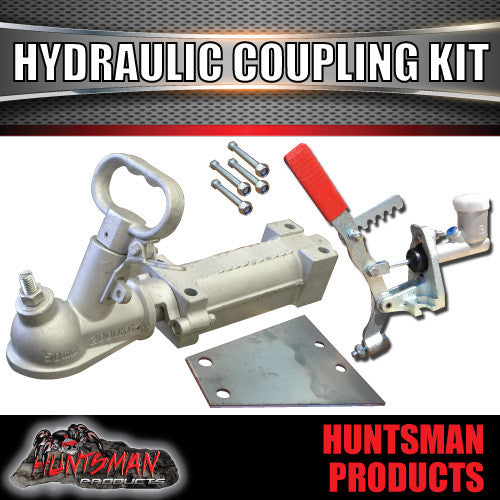

1X OVERRIDE 2000Kg 50mm BALL COUPLING
1x MASTER CYLINDER BRACKET
1X 3/4" MASTER CYLINDER AND STAINLESS MOUNTING BOLTS (7/8" available upon request +$15)
1 X 4 HOLE WELD ON COUPLING PLATE
1 X 300MM MALE/FEMALE FLEXI HOSE
1X 2500MM COUPLING TO AXLE FLARED BUNDY LINE WITH NUTS (let us know if longer is required)
1X 1500MM FLARED BUNDY LINE WITH NUTS
1X 500MM FLARED BUNDY LINE WITH NUTS
1X BRASS T PIECE
1X MASTER CYLINDER NUT AND WASHER
ALL COPPER FITTINGS AND T PIECES TO COMPLETE AXLE AND FINISH OFF AT COUPLING

upgrade to the easy instillation hydraulic line setup.
12 FOOT FULL FLEXI UPGRADE $70 (clink on link below)
16 FOOT FULL FLEXI UPGRADE $75 (click on link below)

"UPGRADE TO 12FT FULL FLEXI KIT BY CLICKING HERE"

"UPGRADE TO 16FT FULL FLEXI KIT BY CLICKING HERE"

INFORMATION REQUIRED (LEAVE BUYERS NOTE IN CHECKOUT):
BEARING STYLE: LM OR SLIMLINE (see options below)
STUD PATTERN: (see options below)
WIDTH OF AXLE: 39MM ROUND, 40MM SQUARE, 45MM ROUND OR 45MM SQUARE (45mm mounts can be used for 50mm axles)

BEARING NUMBERS:
FOR LM (Suits standard 39mm round and 40mm square axles)
Inner: 67010/48
Outer: 11910/49

FOR S/L SLIMLINE (Suit standard 45mm wide and some 50mm wide square axles)
Bearing Numbers
Inner: 68110/49
Outer: 12710/49


STUD PATTERNS:
FORD:
--- PCD: 5 x 114.3mm
--- middle of one Stud to the middle of next Stud Length: 68mm
--- Stud Thickness: 1/2"

HOLDEN HT:
--- PCD: 5x108mm
--- middle of one Stud to the middle of next Stud Length:65mm
--- Stud Thickness: 7/16" Inches

COMMODORE
--- PCD: 5x120mm
--- middle of one Stud to the middle of next Stud Length: 70mm
--- Stud Thickness: 7/16" Inches

HQ
--- PCD: 5x120.65mm
--- middle of one Stud to the middle of next Stud Length: 70.3mm
--- Stud Thickness: 7/16" Inches

6 STUD LANDCRUISER
PCD: 6/139.7
Stud Thickness: 1/2"

5 Stud Landcruiser
PCD: 5/150
Stud Thickness: 9/16"

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder.
