10" Swing Up Jockey Wheel & 100x50mm U bolts

SKU : 192519132604
$87.00

Available



Details

Heavy Duty 10" Jockey Wheel
OFF ROAD STYLE SOLID TYRE

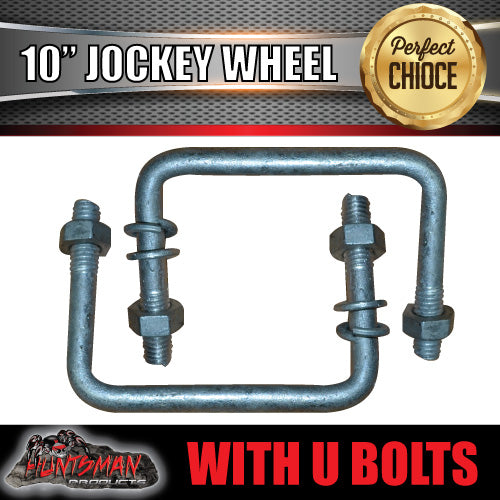

COMES WITH U BOLTS TO SUIT 100MM X 50MM A FRAMES OR DRAW BARS

10" SOLID WHEEL SWING UP JOCKEY WHEEL
THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED

4 BOLT SWIVEL BRACKET (suited to 50mm, 75mm and 100mm A- Frames)
5MM FORK
HUGE 19MM AXLE BOLT
PLASTIC HANDLE
PLASTIC HAND GRIP
CAN BE WELDED OR SUPPLIED WITH U-BOLTS
SOLID OFF ROAD TYRES
250MM EXTENSION
TYRE WIDTH: 80MM
RATED: 1000KG (ball weight)
COMES WITH GREASE NIPPLE TO LUBRICATE BEARINGS

UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY

height from centre of bracket to bottom of tyre
fully closed 420mm
fully extended 680mm

Height from middle of bracket to top of handle: 215mm
Overall Length closed: 630mm
Travel: 260mm



FULLY GREASABLE

photo jockeywheelgreasenipple2_zps99bc6397.jpg
