10 LEAF HEAVY DUTY OFF ROAD EYE TO EYE TRAILER SPRING SET.
WITH GREASABLE FRONT AND BACK HANGERS.
WITH REBOUND DAMPNER STRAPS
SHOT PEENED SPRINGS
IN THIS KIT

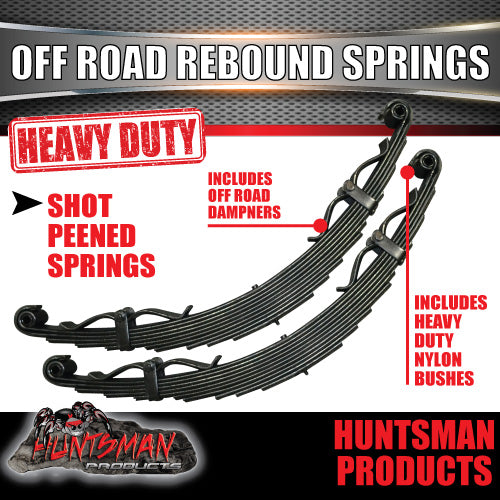

2X HEAVY DUTY 60MMX7MM OFF ROAD EYE TO EYE BLACK SPRINGS WITH REBOUND STRAPS
2X FRONT OFF ROAD HANGERS2X REAR EYE HANGERS. WITH EXTRA STRENGTH GUSSETS
2X OFF ROAD FISH PLATES.
4X OFF ROAD 45MM 5/8"HIGH TENSILE U BOLTS. (50MM 5/8"HIGH TENSILE U BOLTS AVAILABLE UPON REQUEST)
2X REAR DOUBLE SHACKLE PLATES AND HIGH TENSILE SHACKLE BOLTS (WITH GREASE NIPPLES)
2X SHACKLE PINS WITH GREASE NIPPLES
2X AXLE PADS
All huntsman off road springs come with 6x greasable shackles.
Solid hangers with reinforced rear hangers
10mm fish plates
PLEASE COMPARE THE QUALITY AND STRENGTH OF THE OFF ROAD SPRING SETS TO OTHER SUPPLIERS!!
CENTRE EYE TO CENTRE EYE = APPROX 830MM
END TO END = APPROX 900MM
CAMBER ARC HEIGHT 160MM. (SPRING ONLY. NOT ASSEMBLED ON HANGERS)
SPRING WIDTH = 60MM
LEAF THICKNESS = 7MM
COMES WITH 2 X REBOUND DAMPNERS PER SPRING (SHOCK ABSORTION)
SPRINGS ARE SHOT PEENED
Long Part of spring to the front, move rear hanger 25mm towards the rear,
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
