Trailer Stainless 16ft 4870mm Hydraulic Disc Drum Brake Flexi Hose Line Kit

16FT HYDRAULIC DISC DRUM BRAKE STAINLESS STEEL FLEXI HOSE LINE COMPLETE KIT

DOT APPROVED

SUITS ONE BRAKED AXLE

Unlike other braided stainless lines on the market the Huntsman line comes with stainless line and fittings. (comes with brass hydraulic unions if used on some brake calipers)

The 16ft single braked axle complete hydraulic stainless line makes setting up any hydraulic trailer brakes a breeze as everything is pre prepared. With no need for flaring and with the easiness of being able to bend around A frames or chassis without kinking this makes setting any hydraulics hassle free.

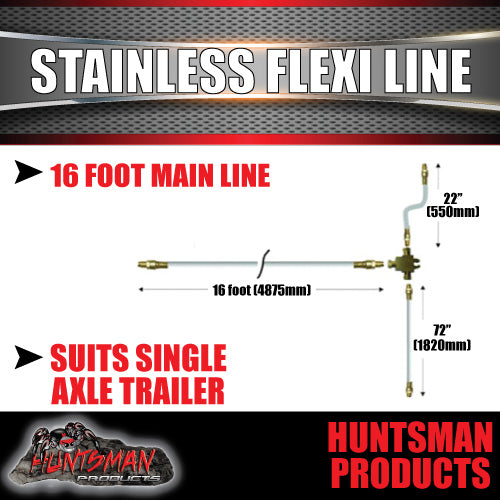

The idea is simple. We supply your 16ft flexi line from master cylinder (which includes olive nut) to the supplied T piece on the axle. Then from the T piece you get a 22" & 72" stainless flexi line to run to the backing plates or calipers on the axle. Any excess line not used can simply be rolled up and attached any where on the trailer or RV with the zip ties supplied by Huntsman products.

FULL KIT INCLUDES

1X 16FT, 4870MM STAINLESS STEEL FLEXI LINE WITH 3/8" BRASS FITTINGS AT EITHER END

1X 22", 550MM STAINLESS STEEL FLEXI LINE WITH 3/8" BRASS FITTINGS AT EITHER END

1X 72", 1820MM STAINLESS STEEL FLEXI LINE WITH 3/8" BRASS FITTINGS AT EITHER END

3X HEAVY DUTY CABLE TIES

1X BRASS T-PIECE FITTING

1X MASTER CYLINDER 3/8" ADAPTOR OLIVE NUT & WASHER
