HUNTSMAN PRODUCTS INDEPENDENT SUSPENSION
TANDEM AXLE
2000KG RATED

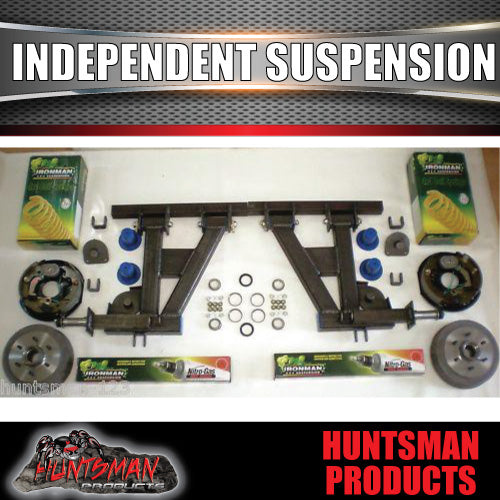

SUSPENSION INCLUDES
*4X INDEPENDENT SWING ARMS & GREASABLE HINGE BAR WITH NEOPRENE BUSHES. 45MM STUB AXLES WILL BE WELDED ON OR INTO SWING ARMS (TO SUIT YOUR OFFSET) WITH BRAKE MOUNTS ALREADY WELDED ON FRONT 2 STUB AXLES. SUSPENSION COMES IN A NATURAL FINISH
*8 X NEOPRENE BUMP STOPS
*8X WELD ON COIL BRACKETS. (4 ALREADY WELDED TO SWING ARM)

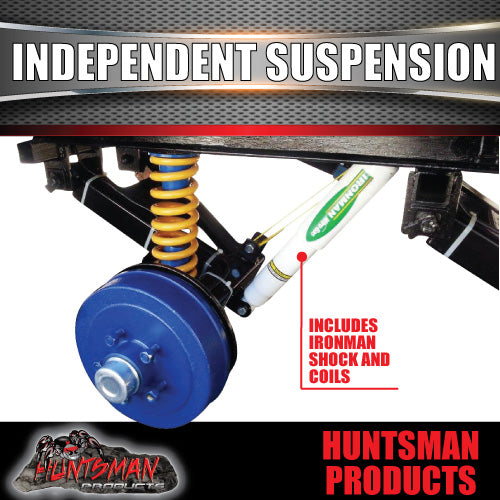

*4X IRONMAN 1200KG RATED COILS
*4X NITRO GAS IRONMAN SHOCKS WITH MOUNT BRACKETS, HIGH TENSILE BOLTS AND NUTS
* 10" ELECTRIC BRAKES FOR FRONT SWING ARMS COMPLETE WITH OFF ROAD BACKING PLATES, DRUMS, KOYO BEARINGS, SEALS, CAPS AND NUTS.
* X2 NATURAL FINISH LAZY HUBS WITH JAPANESE BEARING SETS FOR THE REAR ARMS

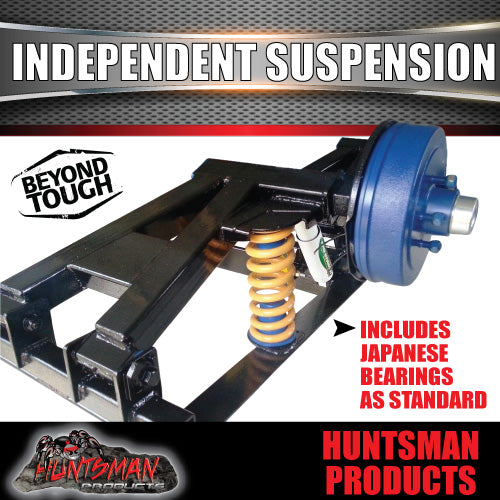

* JAPANESE MANUFACTURED BEARING KITS
*4X HEAVY DUTY WEBBING REBOUND STRAPS (these go around the ironman shocks)
*8X 5MM SHIMS (only used if needed when aligning suspension)
*ALL HIGH TENSILE NUTS AND BOLTS NEEDED FOR THE KIT
* CAMBER & TOE IN ADJUSTMENT
HYDRAULIC AND MECHANICAL BRAKES AVAILABLE UPON REQUEST
STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS)
D40/NP300/PATHFINDER (6/114.3 PCD, 1/2" STUDS AND NUTS
F100 (5/139.7 PCD, 9/16" STUDS AND NUTS)
Whats involved in setting up the suspension onto the chassis???

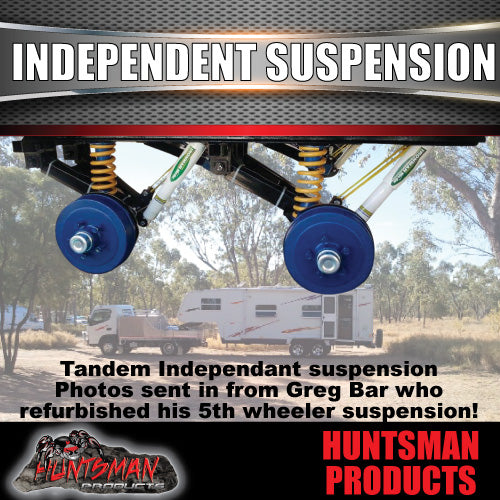

The team at Huntsman Products mount everything onto the swing arm before despatch. So the hinge bar is bolted to the swing arm. The stub axle is welded on or into the swingarm. The coil bracket is welded to the hinge bar as is the rebound strap and shock brackets.
When you receive the suspension you will have to weld the hinge bar on top of a cross member as will be shown in the drawing we give you on purchase. The coil, rebound strap and shock brackets will also have to be welded to the chassis.
The brake mounts are pre welded to the stub axles. The cups are inserted into the drums or discs so it is a matter of greasing the bearings, assembling the brakes and drums to the stubs and you are done..
WE CAN SUPPLY WITH THE DOUBLE SHOCK SETUP FOR AN EXTRA $360
WE CAN ALSO SUPPLY THIS SUSPENSION WITH MECHANICAL OR HYDRAULIC DISC BRAKES. PLEASE ENQUIRE FOR PRICES
ride height from centre of stub to chassis when under load is 190mm with the stub axle welded on top of swing arm or 260mm if the stub axle is welded into the arm.
On ordering we email or fax both an offset job sheet and a fitment diagram for mounting the suspension to the chassis. Unfortunately we do need a deposit for these to be forwarded, so please don't take offence on these terms and conditions

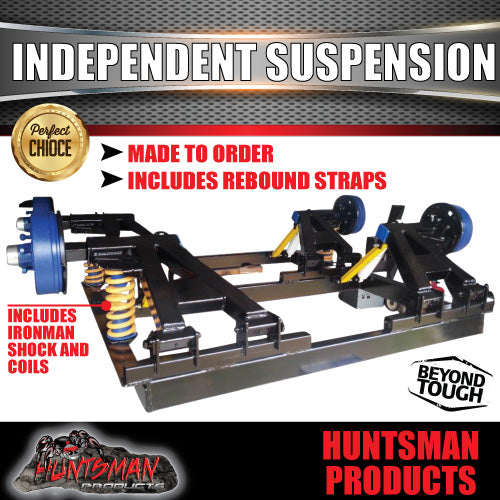

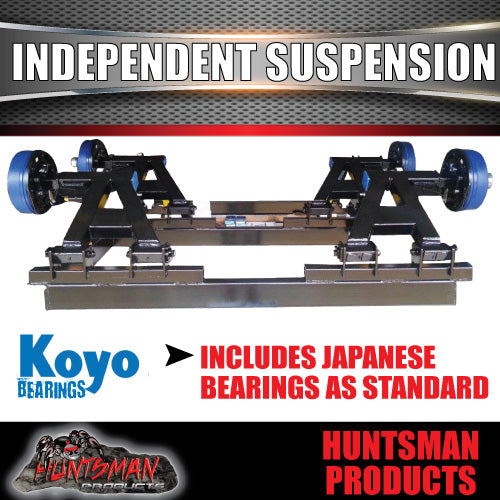

Please note** The suspension does not come with the sub frame shown in the picture. This is just a visual image to show what the suspension looks like when set up and in use.
*Once ordered we will send via email an order form which will ask the below 2 questions.
1. Offset from chassis to hub face.
2. Stub axle welded on top or inside the arm to determine the ride height.
The email will also provide the independent working drawing.
