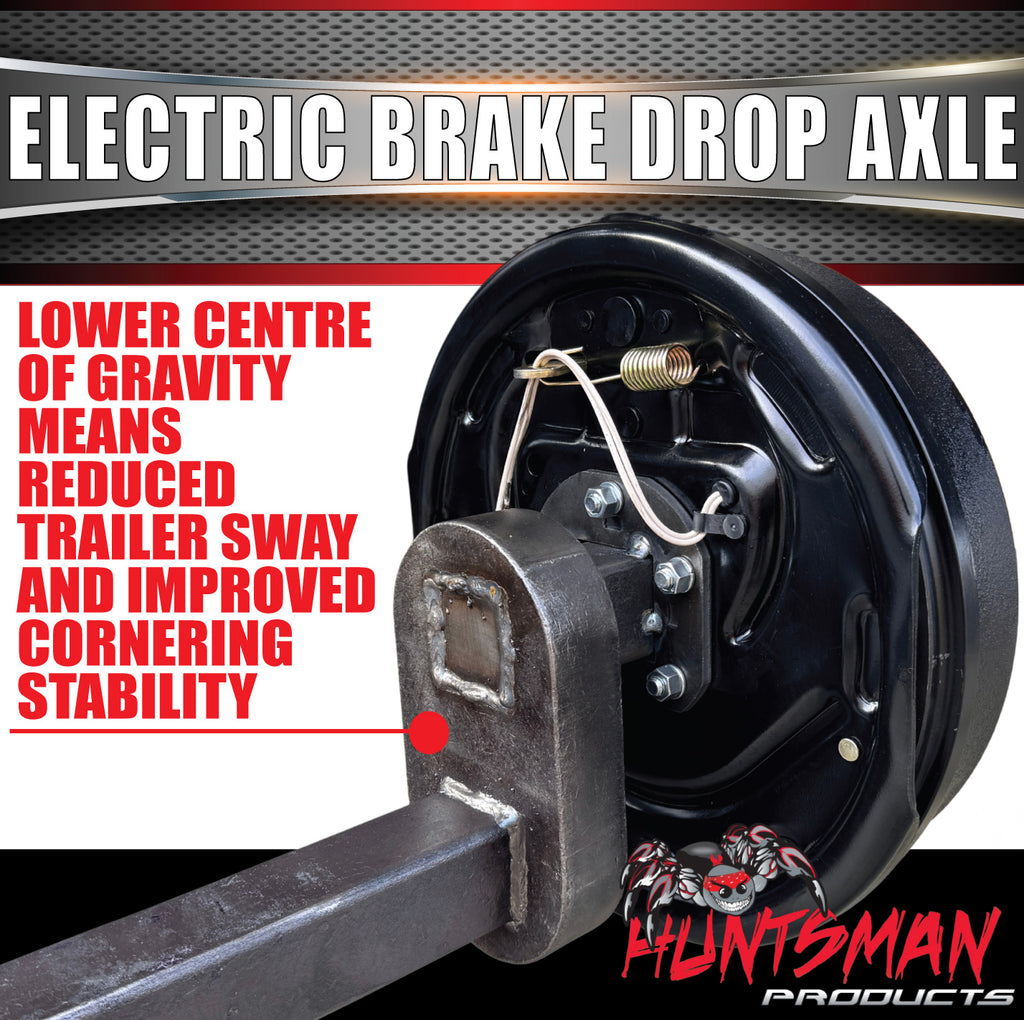

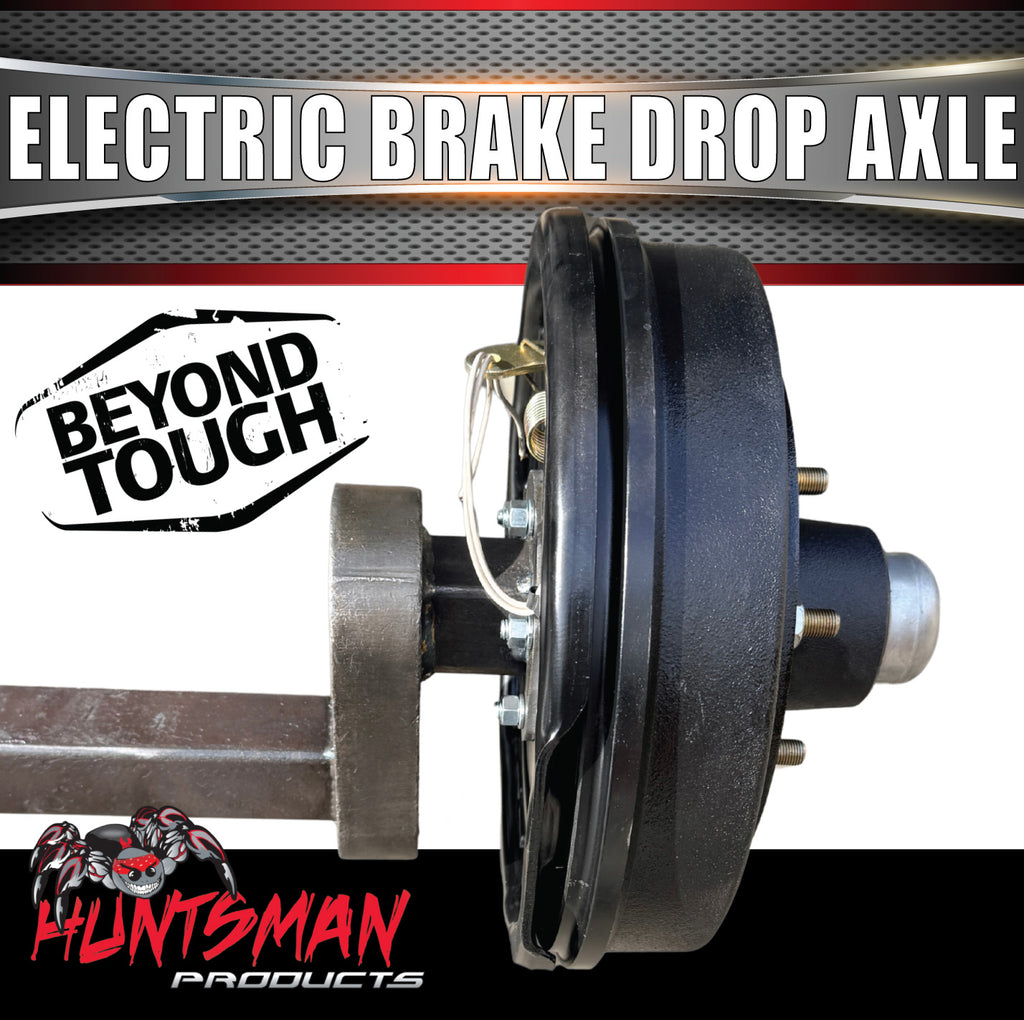

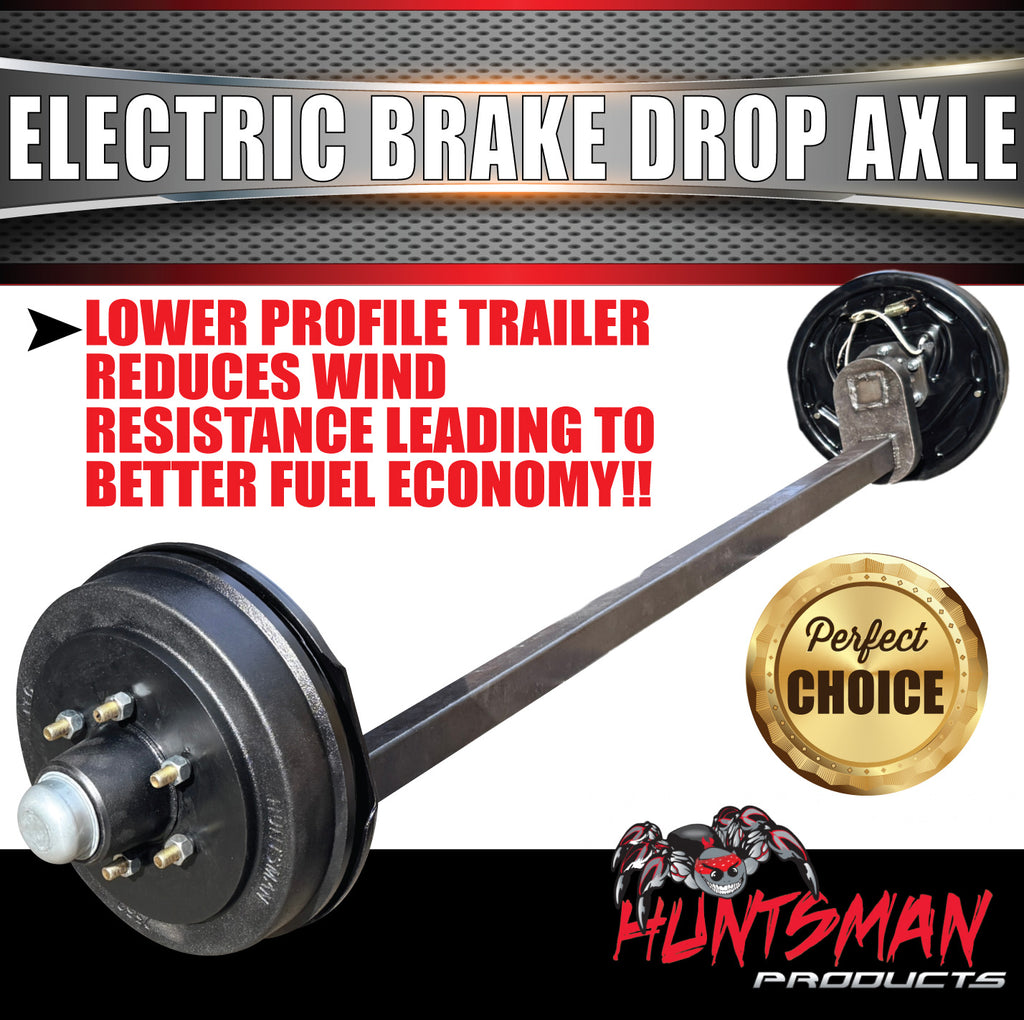

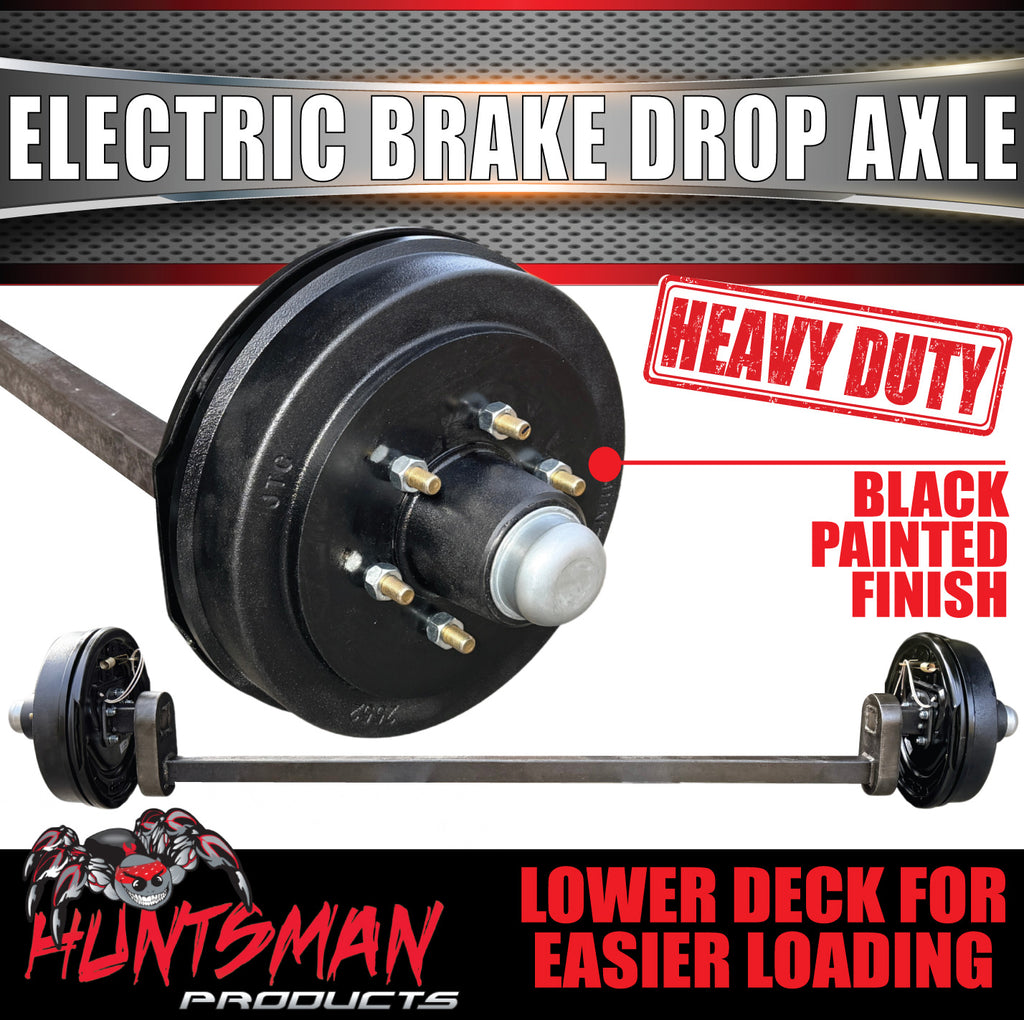

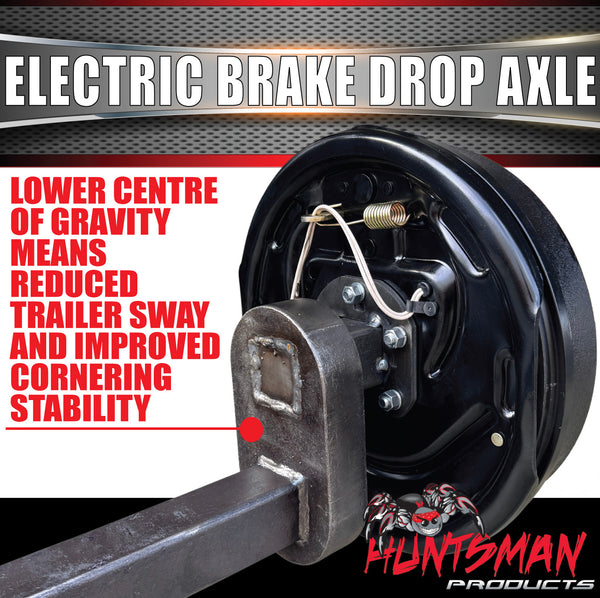

2000Kg Trailer Caravan 12" Electric Braked 50mm Square Solid Drop Axle Landcruiser Pattern

50MM SQUARE SOLID 12" ELECTRIC BRAKED DROP AXLE

2000KG RATED PER AXLE

PLEASE NOTE: WE WILL SEND THIS AXLE FULLY ASSEMBLED SAVING YOU MUCH TIME AND HEADACHE

AVAILABLE PATTERNS

LANDCRUISER 6 STUD (6/139.7 PCD, 1/2" STUDS)

OR

LANDCRUISER 5 STUD (5/150 PCD, 9/16" STUDS)

AXLE LENGTHS AVAILABLE

We can supply this drop axle length up to 2500mm hub face to hub face

PLEASE NOTE: Minimum clearance from hub face to chassis per side: 203mm

203mm from hub face to chassis will allow 20mm gap in between the drop plate and chassis

Drop axle will take approx 5 extra business days for dispatch on top of the current dispatch times

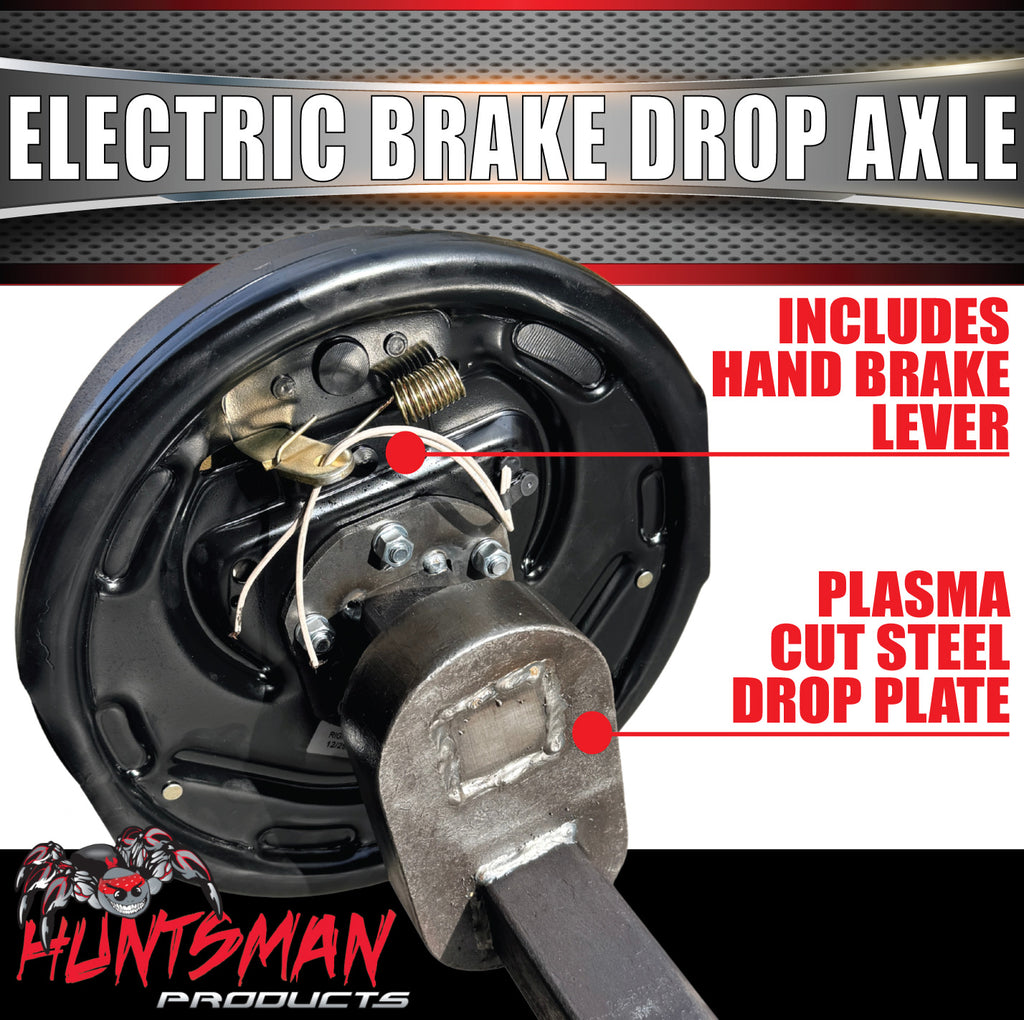

COMES WITH HANDBRAKE LEVERS

LANDCRUISER SIZE BEARINGS (30210 INNER, 15123 OUTER)

ON ORDERING PLEASE GIVE US YOUR HUB FACE TO HUB FACE MEASUREMENT AND STUD PATTERN REQUIRED

UPGRADE TO JAPANESE MANUFACTURED BEARINGS $90 (click on link below)

 "UPGRADE TO JAPANESE MANUFACTURED BEARINGS BY CLICKING HERE"
