3200KG DIY HYDRAULIC DISC BRAKED BOAT TRAILER KIT.

SKU : 190893327454
$3,456.00

Available



Details

DIY HYDRAULIC DISC TANDEM TRAILER KIT.
3200KG RATED.
ROCKER ROLLER SPRINGS, 50MM PARALLEL AXLES AND ELECTRIC OVER HYDRAULIC ALKO IQ7.


STUD PATTERNS AVAILABLE
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) MINIMUM 95MM CENTRE BORE ON RIM REQUIRED

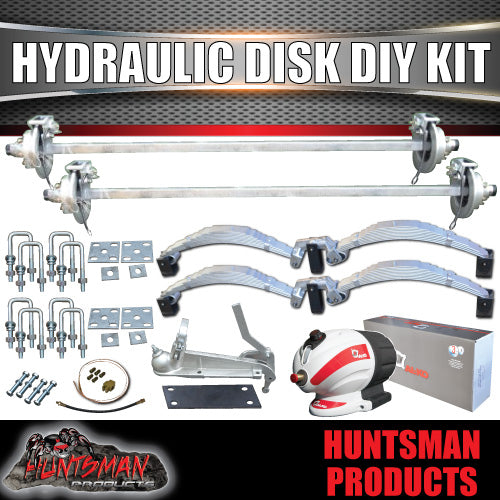

IN THIS KIT
2X ASSEMBLED 50MM SQUARE PARALLEL GALVANISED HYDRAULIC DISC BRAKED 6 STUD LANDCRUISER PATTERN AXLES. (PLEASE NOTE THE FLANGES ARE WELDED TO AXLE AFTER IT IS GALVANISED AND COLD GALVANISE IS APPLIED WHERE THE FLANGES HAVE BEEN WELDED)
AXLES TAKE APPROX 5 DAYS TO BE ENGINEERED (available any length up to 2500mm tip to tip / 2370mm hub face to hub face)
4X GALVANISED HYDRAULIC DISC BRAKE CALIPERS WITH STAINLESS STEEL PISTONS AND ZINC MOUNT BOLTS (PART OF ASSEMBLED AXLES)
4X BRAKE PADS (PART OF ASSEMBLED AXLES)
4X 12" 6 STUD L/C GALVANISED DACROMET PARALLEL BRAKE DISCS. 15MM THICK DISCS (PART OF ASSEMBLED AXLES)
4X PARALLEL BEARING KITS INCLUDING MARINE SEALS AND DUST CAPS (PART OF ASSEMBLED AXLES)
X24 WHEEL NUTS

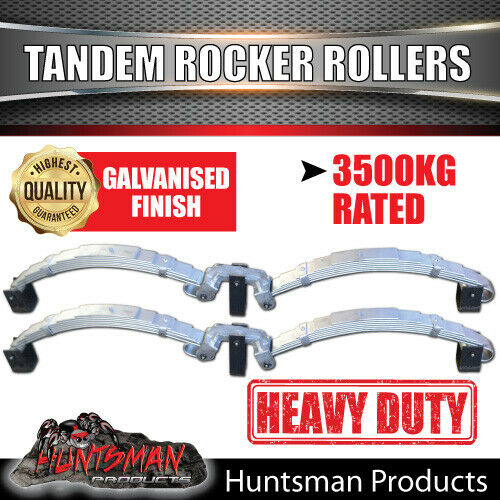

1X 7 LEAF 3500KG GALVANISED DACROMET ROCKER ROLLER LOAD SHARING SPRING SET WITH ALL GREASABLE HIGH TENSILE SHACKLE BOLTS & STEEL BUSHES. (SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)
4X GALVANISED FISH PLATES
8X HIGH TENSILE 50MM SQUARE 5/8" U BOLTS WITH NUTS AND WASHERS
4X GALVANISED AXLE PADS
1X 3500KG GALVANISED 50MM BALL COUPLING
1X ALKO IQ7 ACTUATOR WITH BUILT IN BRAKEAWAY UNIT
1X 4 HOLE COUPLING WELD ON PLATE
4X COUPLING HIGH TENSILE BOLTS AND AND NYLOC NUTS
1X 6100MM COUPLING TO FRONT AXLE MAIN FLARED BUNDY LINE WITH NUTS (LET US KNOW IF LONGER IS REQUIRED)
2X 2000MM FLARED BUNDY LINE WITH NUTS
3X 500MM FLARED BUNDY LINE WITH NUTS
3X 400MM MALE / FEMALE FLEXI LINES
1X BRASS T PIECE
1X BRASS 4 WAY BLOCK
1X MASTER CYLINDER BRASS NUT AND WASHER
ALL BUNDY TUBING, FLEXI HOSES & BRASS FITTINGS TO COMPLETE BRAKES.

Please check coupling to front axle hydraulic line length. if longer is required please get in contact with us
On ordering please provide your stud pattern and axle length?


EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE. DROP AXLES TAKE APPROX 5 DAYS TO ENGINEER
JAPANESE KOYO BEARINGS $80 (CLICK ON LINK BELOW)
TANDEM RUBBER FLEXI HOSE LINE KIT $90
TANDEM STAINLESS BRAIDED FLEXI LINE KIT $160
HUNTSMAN / DEEMAXX STAINLESS DISCS AND CALIPERS (POA)

 "CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"


DACROMET
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder


SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
