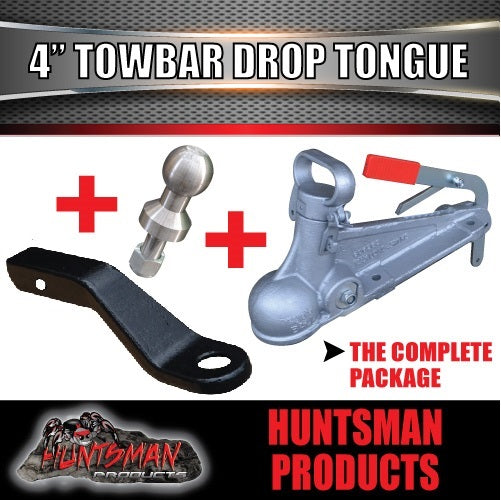

4.5T ELECTRIC BRAKE COUPLING WITH 70MM TOW BALL & 4'' DROP FORGED TOW TONGUE

SKU : 362492767669
$360.00

Available



Details

4.5 TONNE 70MM ELECTRIC BRAKE HAND BRAKED BALL COUPLING
WITH 70MM SOLID FORGED STEEL TOW BALL
& 4'' SOLID ONE PIECE DROP FORGED TOW TONGUE

4500KG 4 HOLE ELECTRIC BALL COUPLING
GALVANISE DACROMET FINISH
HOLE CENTRES ARE APPROX 183MM X 55MM

4500KG 70MM TOW BALL
32MM SHAFT
72MM SHANK LENGTH
FORGED STEEL
CHROME PLATED FINISH

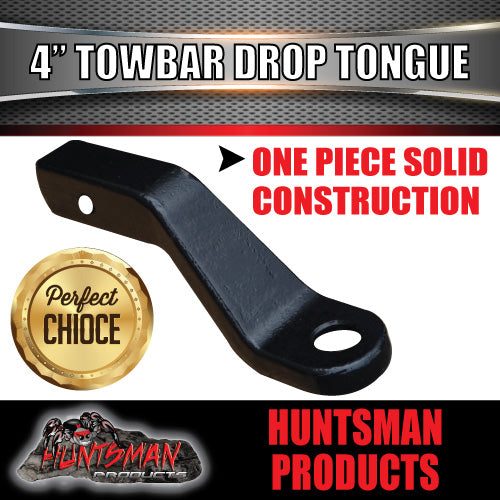

4'' DROP FORGED TOW TONGUE
4'' DROP OR 5'' RISE
RATED: 17000LBS
17MM PIN HOLE
32MM TOW BALL HOLE
BLACK POWDER COAT FINSH
SOLID ONE PIECE CONSTRUCTION

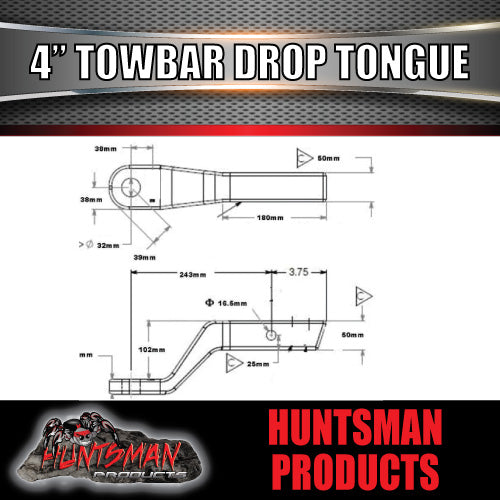

SQUARE SECTION: 2'' X 2'' OR (50.9MM X 50.9MM) SOLID
TONGUE: 76MM X 25MM
CENTRE OF TOW BALL HOLE TO PIN HOLE: 224MM
CENTRE OF PIN HOLE TO PLATFORM: 75MM
CENTRE OF PIN HOLE TO REAR OF 2'' BLANK: 75MM

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder
