405mm x 250 newton gas struts & brackets. European seals

2x 405mm x 250 newton gas struts
4x 10mm ball gas strut brackets
these struts are generally used under tool box lids and caravan shutters

lifts approx 25kg per pair
European seals

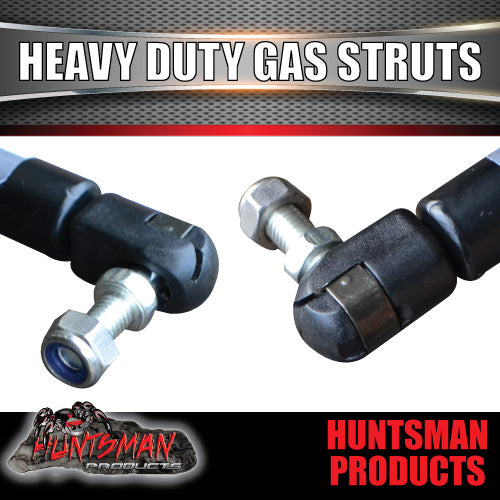

2x 250 newton x 405mm open shaft gas struts

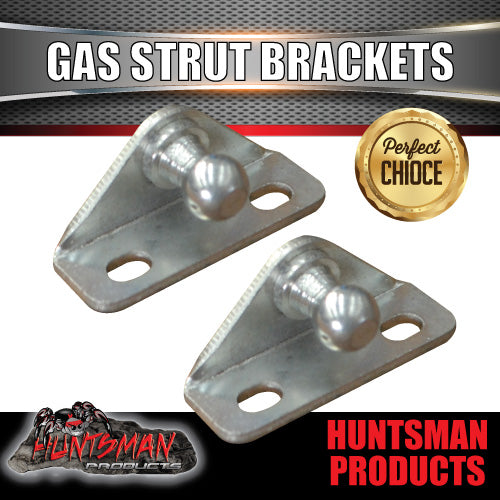

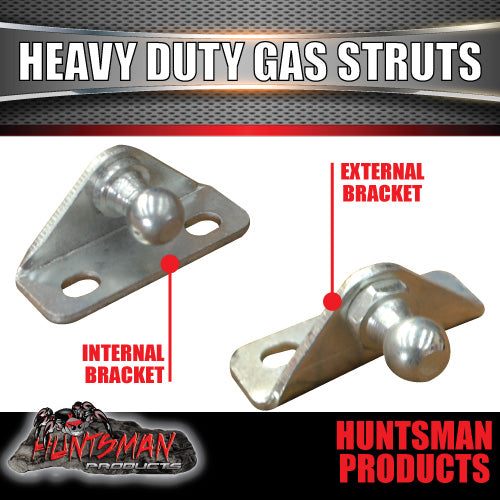

2x internal mount brackets (let us know on ordering if you require all internal or all external brackets)

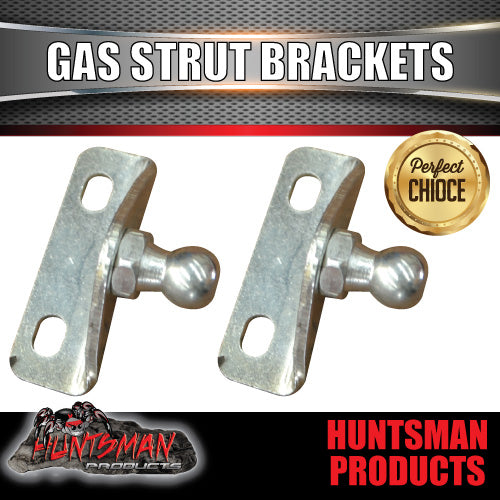

2x external mount brackets (let us know on ordering if you require all internal or all external brackets)
shaft width 8mm
ball diameter 10mm
comes with mount ball bolts and nyloc nuts



STROKE LENGTH (A) MM = 165
EXTENDED LENGTH (B) MM = 405
PISTON ROD (D1) MM = 8
PISTON CYLINDER (D2) MM = 18
FORCE RANGE NEWTON = 250


STRUT BRACKETS AVAILABLE IN OUR STORE

What gas strut do I need?
To calculate the size and the force of the Gas Strut you require for your application use the following guidelines. The extended length of the Gas Strut should be approximately 60% of the door or hatch length - e.g. a 1000mm high door should have a Gas Strut length of approximately 600mm.
