505mm x 300 newton gas struts.

SKU : 171037055886
$28.00

Available



Details

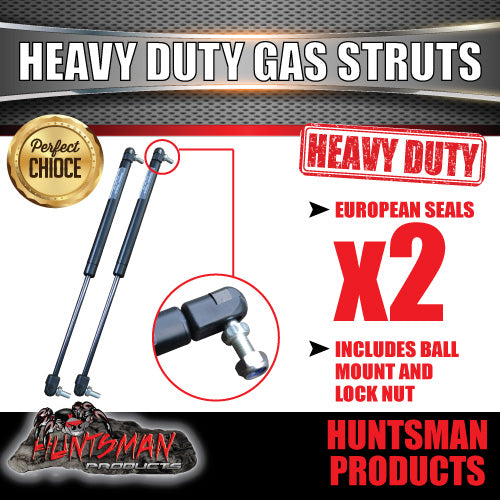

pair 505mm x 300 newton gas struts

lifts approx 30kg per pair

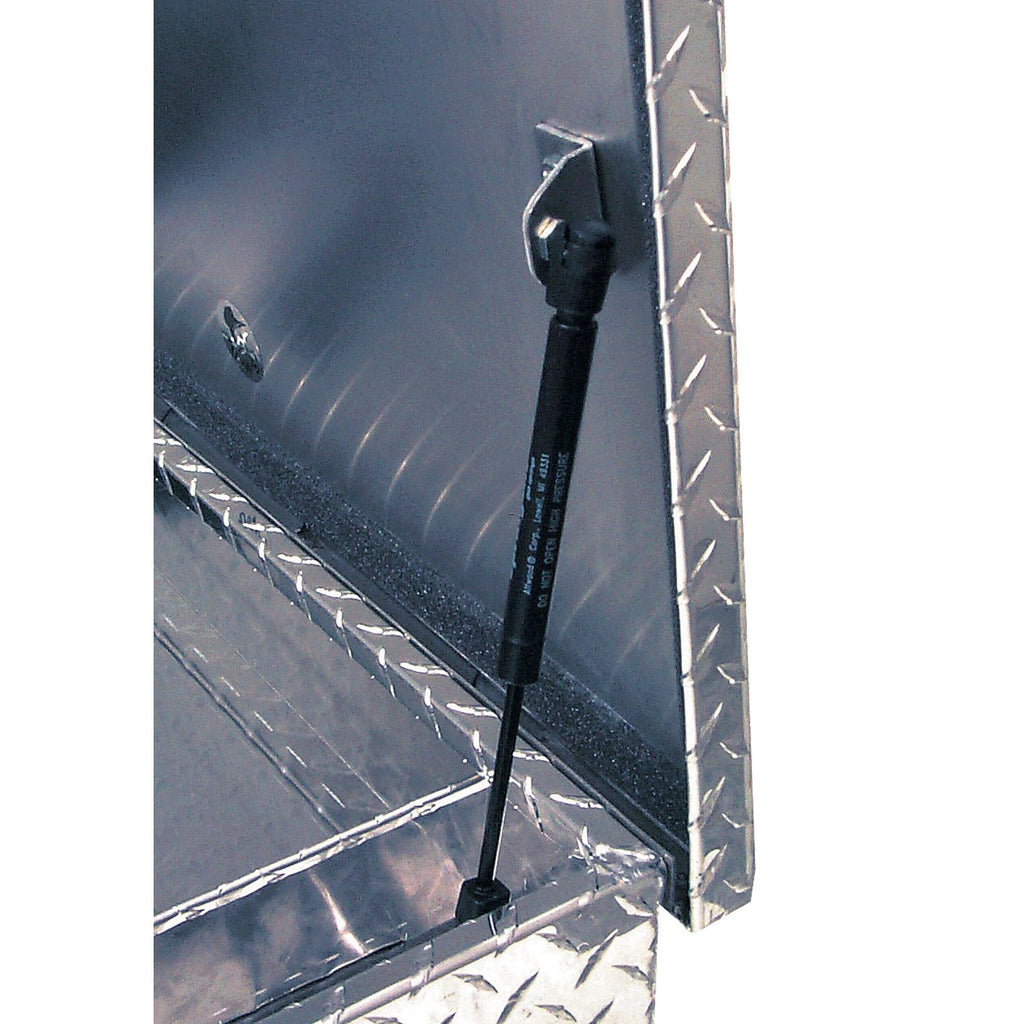

these struts are generally used under on tradesman trailer side and rear doors that are just sheet metal and not framed and under mattresses of camper trailers and caravans to access storage under bed base


European seals



2x 300 newton x 505mm open shaft gas struts

shaft width 8mm

ball diameter 10mm

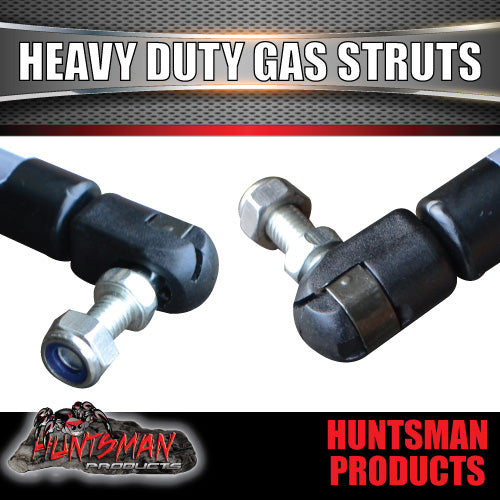

comes with mount ball bolts and nyloc nuts





Image result for CAMPER TRAILER GAS STRUT Drawing stroke length



STROKE LENGTH (A) MM = 215

EXTENDED LENGTH (B) MM = 505

PISTON ROD (D1) MM = 8

PISTON CYLINDER (D2) MM = 18

FORCE RANGE NEWTON = 300



STRUT BRACKETS AVAILABLE IN OUR STORE



What gas strut do I need?
To calculate the size and the force of the Gas Strut you require for your application use the following guidelines. The extended length of the Gas Strut should be approximately 60% of the door or hatch length - e.g. a 1000mm high door should have a Gas Strut length of approximately 600mm.
