6" Swing Up Jockey Wheel & 50x50mm U bolts

SKU : 362304505222
$62.00

Available



Details

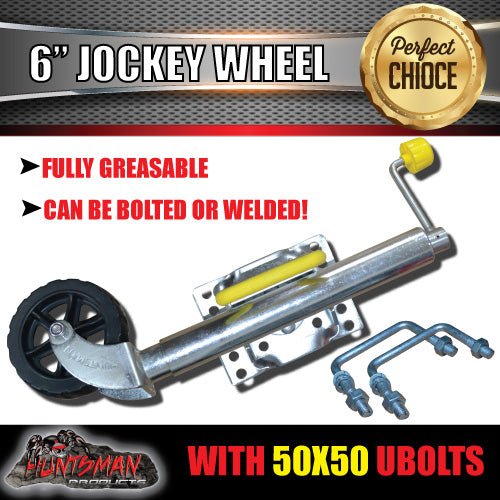

The all new Heavy Duty 6" Jockey Wheel
HEAVY DUTY PLASTIC OFF ROAD STYLE MOLDED WHEEL

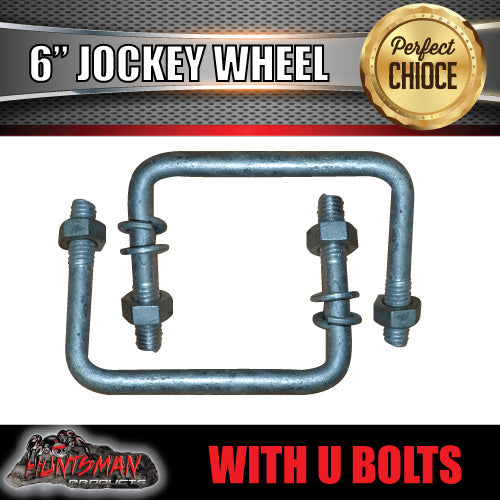

Comes with 2x U bolts to suit 50mm x 50mm Drawer Bar or A Frame

6" SOLID WHEEL SWING UP JOCKEY WHEEL
THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED

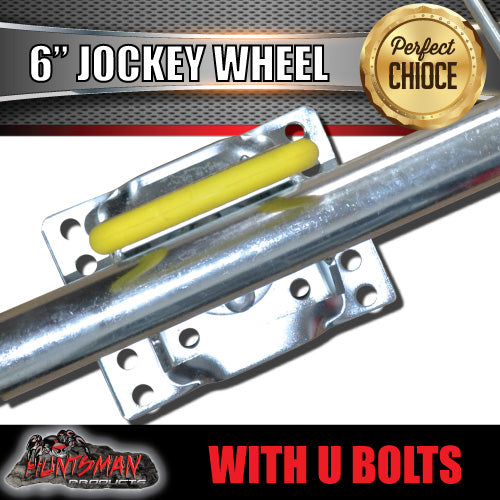

4 BOLT SWIVEL BRACKET (SUITED FOR 50MM, 75MM AND 100MM A FRAMES)
PLASTIC MOULDED HANDLE
5MM FORK
CAN BE WELDED OR SUPPLIED WITH U-BOLTS

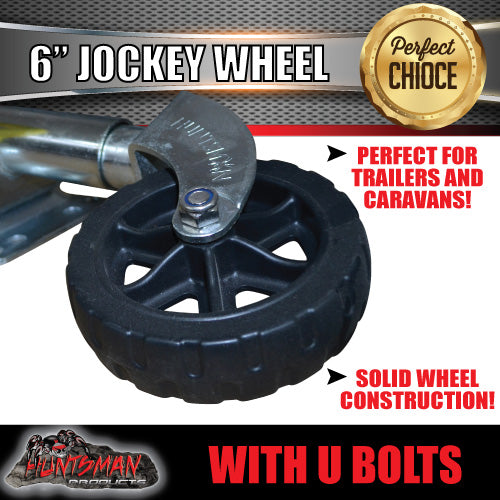

SOLID WHEELS
RATED AT 500KG (BALL WEIGHT)

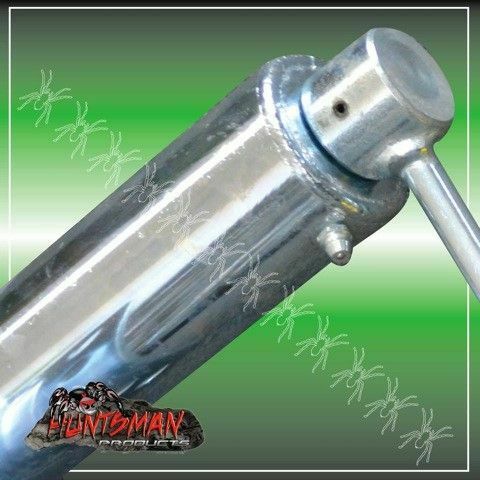

NOW FULLY GREASABLE

height from centre of bracket to bottom of tyre
fully closed 315mm
fully extended 570mm

Height from middle of bracket to top of handle: 215mm
Overall Length closed: 550mm
Travel: 255mm

UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY
