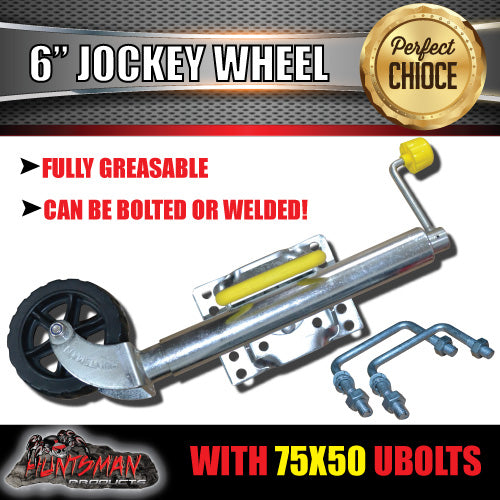

6" Swing Up Jockey Wheel & 75x50mm U bolts

SKU : 173290311948
$50.00

Available



Details

The all new Heavy Duty 6" Jockey Wheel

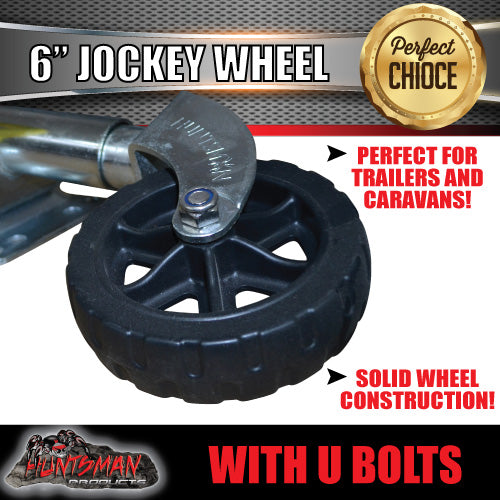

HEAVY DUTY PLASTIC OFF ROAD STYLE MOLDED WHEEL

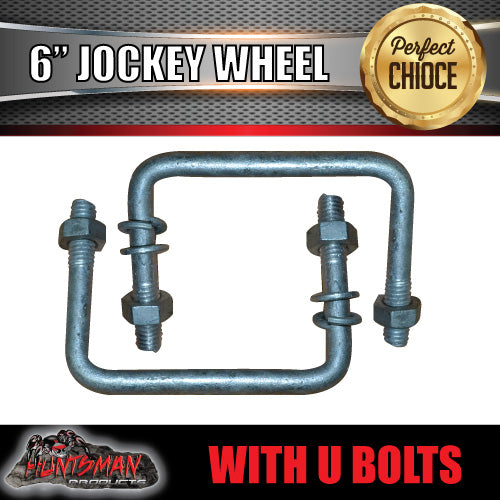

Comes with 2x U bolts to suit 75mm x 50mm Drawer Bar or A Frame





 photo 6JOCKEYWITHUBOLTSE_zpsuapgynkc.jpg

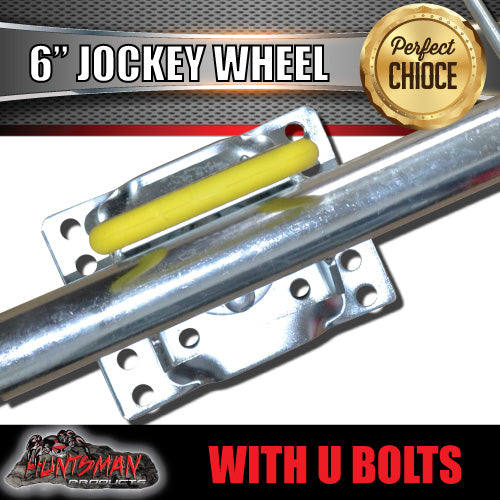

4 BOLT SWIVEL BRACKET (SUITED FOR 50MM, 75MM AND 100MM A FRAMES)

5MM FORK

CAN BE WELDED OR SUPPLIED WITH U-BOLTS

SOLID WHEELS



height from centre of bracket to bottom of tyre

fully closed 315mm

fully extended 570mm

Height from middle of bracket to top of handle: 215mm

Overall Length closed: 550mm

Travel: 255mm



RATED AT 500KG (BALL WEIGHT)





UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY




RATED AT 500KG (BALL WEIGHT)

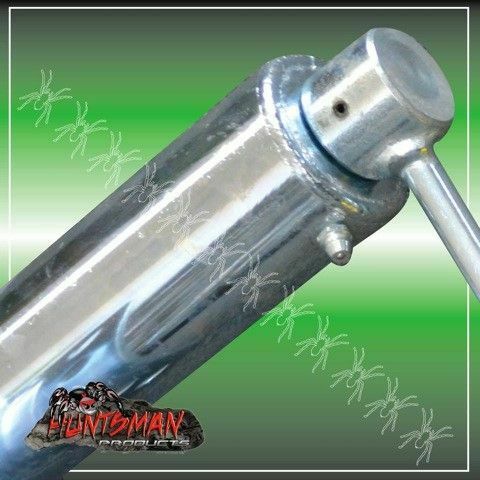

  photo jockey greasable_zpsgioufhmh.jpg







 photo 6JOCKEYWITHUBOLTSF_zps9ux6pwiy.jpg
