65mm Round 3000Kg Lazy 6 or 5 Stud Landcruiser Stud Pattern Trailer Caravan Solid Axle

SKU : 175892024926-1
$630.00

Available



Details

65MM ROUND SOLID COMPLETE LAZY AXLE (3000KG RATED)
5 OR 6 STUD LANDCRUISER PATTERN AVAILABLE
3 TONNE LANDCRUISER BEARINGS

AVAILABLE PATTERNS
LANDCRUISER 6 STUD. 6/139.7 PCD. 1/2" STUDS AND NUTS
LANDCRUISER 5 STUD. 5/150 PCD. 9/16" STUDS AND NUTS
FORD F100 / F150 5 STUD. 5/139.7 PCD. 9/16" STUDS AND NUTS
FORD F250 / F350 8 STUD. 8/170 PCD. 14X1.5 STUDS AND NUTS



AXLE LENGTHS AVAILABLE
PLEASE NOTE: Minimum clearance from hub face to chassis per side: 170mm
Hub face to back of electric backing plate per side: 170mm
1950MM TIP TO TIP (1770mm hub face to hub face)
2000MM TIP TO TIP (1820mm hub face to hub face)
2050MM TIP TO TIP (1870mm hub face to hub face)
2100MM TIP TO TIP (1920mm hub face to hub face)
2150MM TIP TO TIP (1970mm hub face to hub face)
2200MM TIP TO TIP (2020mm hub face to hub face)
2250MM TIP TO TIP (2070mm hub face to hub face)
2300MM TIP TO TIP (2120mm hub face to hub face)
2380MM TIP TO TIP (2200mm hub face to hub face)
2410MM TIP TO TIP (2230mm hub face to hub face)
2460MM TIP TO TIP (2280mm hub face to hub face)
CUSTOM AXLE LENGTH UP TO 2500MM TIP TO TIP +$50 PER AXLE
Custom Axle lengths will need to be manufactured which will take approx 5 extra business days for dispatch on top of the current dispatch times

AXLE THICKNESS: 65mm solid
BEARINGS: 30210 & 29749

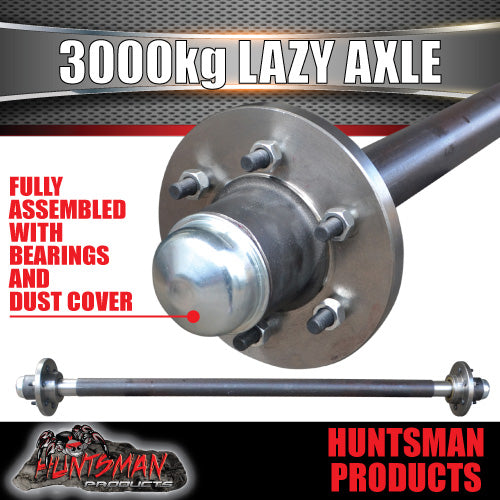

AXLE COMES COMPLETELY ASSEMBLED AS PICTURED

BEARING OPTIONS
UPGRADE TO JAPANESE BEARINGS $80.0

 "UPGRADE TO JAPANESE MANUFACTURED BEARINGS BY CLICKING HERE"
