8" JOCKEY WHEEL. 750KG. SWING UP

SKU : 171869260635
$78.00

Available



Details

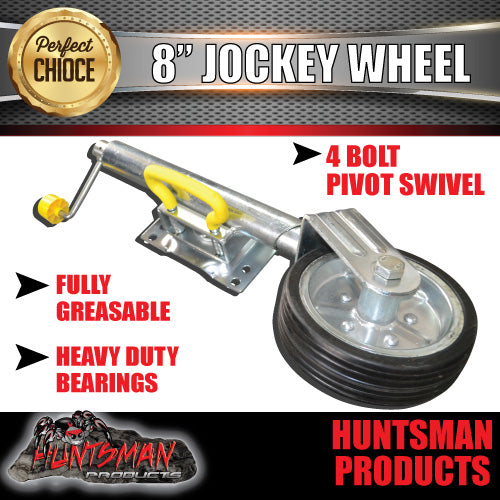

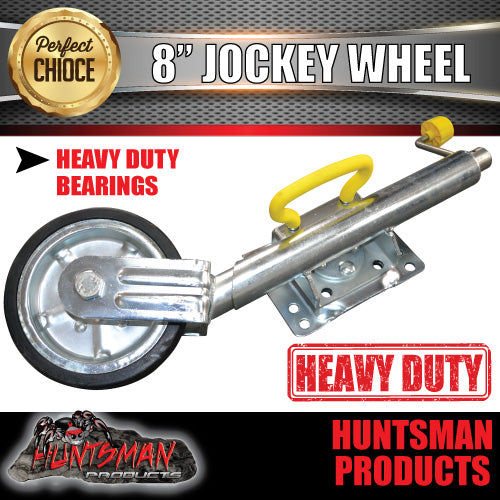

Heavy Duty 8" Jockey Wheel
SOLID STEEL RIM WITH HARDENED RUBBER OUTER TYRE

8" SOLID WHEEL SWING UP JOCKEY WHEEL
THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED

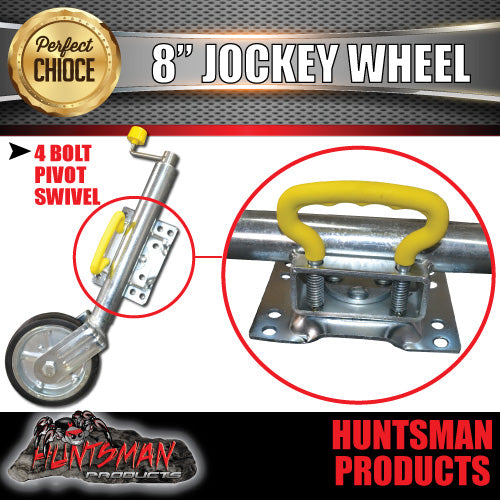

4 BOLT SWIVEL BRACKET (suited to 50mm, 75mm and 100mm a frames)
5MM FORK
PLASTIC HANDLE
CAN BE WELDED OR SUPPLIED WITH U-BOLTS

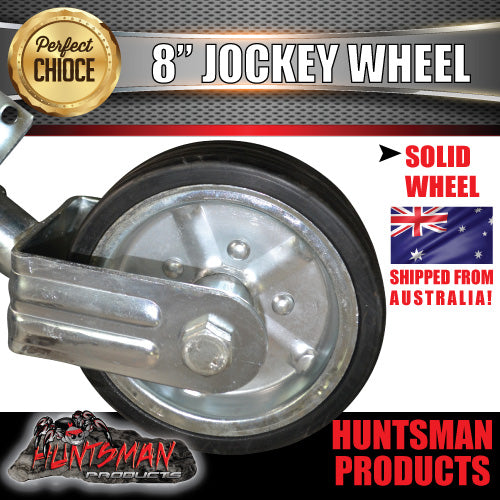

SOLID WHEELS

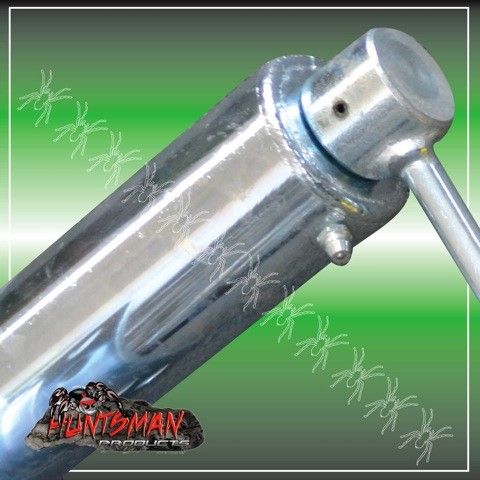

COMES WITH GREASE NIPPLE TO KEEP INTERNAL BEARINGS LUBRICATED
RATED AT 750KG (BALL WEIGHT)


Height from middle of bracket to top of handle: 220mm
Overall Length closed: 600mm
Travel: 253mm


height from centre of bracket to bottom of tyre
fully closed 380mm
fully extended 633mm


UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY
