DIY 1400kg Boat Trailer Kit. Hydraulic Disc Brakes Eye to Eye Springs. Axles 64" - 77" Long

SKU : 171140307495-56
$900.00

Available



Details

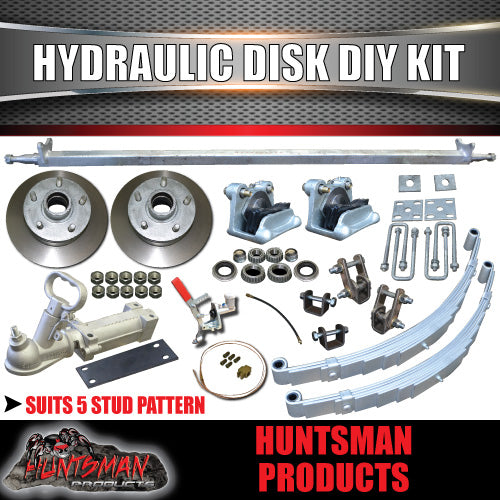

DIY 1400KG SINGLE AXLE BOAT TRAILER KIT
EYE TO EYE SPRINGS, HYDRAULIC DISC BRAKES
AXLE LENGTHS 64" - 77" (for longer axles SKU:364253340937)


STUD PATTERNS AVAILABLE
FORD (5/114.3 PCD, 1/2" STUDS AND NUTS)
COMMODORE (5/120 PCD, 7/16" STUDS AND NUTS)
HQ (5/120.65 PCD, 7/16" STUDS AND NUTS)
HT (5/108 PCD, 7/16" STUDS AND NUTS)
6 STUD L/C (6/139.7 PCD, 1/2" STUDS AND NUTS) + $120 (12" Discs)
5 STUD L/C (5/150 PCD, 9/16" STUDS AND NUTS) +$120 (12" Discs)


AVAILABLE LENGTHS
64", 1625MM TIP TO TIP (1525MM HUB FACE TO HUB FACE)
65", 1650MM TIP TO TIP (1550MM HUB FACE TO HUB FACE)
66", 1675MM TIP TO TIP (1575MM HUB FACE TO HUB FACE)
67", 1700MM TIP TO TIP (1600MM HUB FACE TO HUB FACE)
68", 1725MM TIP TO TIP (1625MM HUB FACE TO HUB FACE)
69", 1750MM TIP TO TIP (1650MM HUB FACE TO HUB FACE)
70", 1775MM TIP TO TIP (1675MM HUB FACE TO HUB FACE)
71", 1805MM TIP TO TIP (1705MM HUB FACE TO HUB FACE)
73", 1855MM TIP TO TIP (1755MM HUB FACE TO HUB FACE)
75", 1905MM TIP TO TIP (1805MM HUB FACE TO HUB FACE)
77", 1955MM TIP TO TIP (1855MM HUB FACE TO HUB FACE)

IN THIS KIT

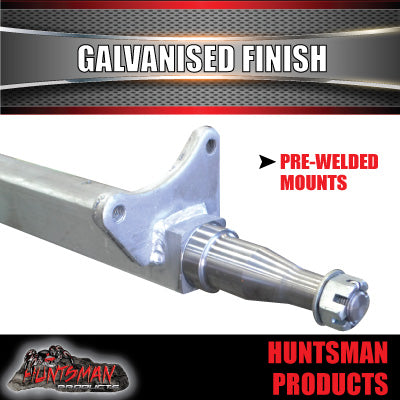

1X 45MM SQUARE GALVANISED SOLID AXLE with disc flanges welded. FLANGES ARE WELDED ON GALVANISED AXLE THEN SPRAYED WITH COLD GAL AFTERWARDS. ( AVAILABLE IN 64", 65", 66, 67", 68",69", 70", 71", 73", 75", 77" ( TIP TO TIP) IF YOUR NOT SURE ON YOUR AXLE LENGTH THEN ASK US FOR ASSISTANCE.

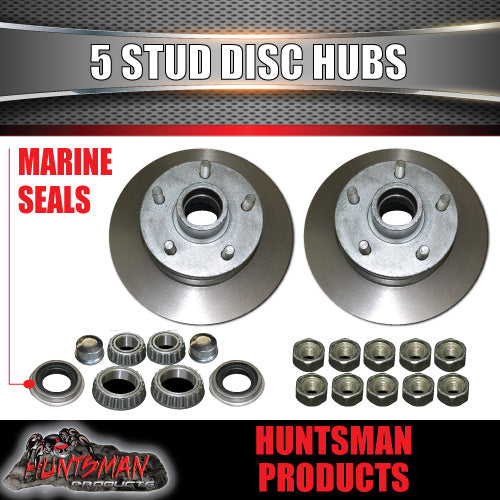

2X 10" GALVANISED HYDRAULIC BRAKE DISCS

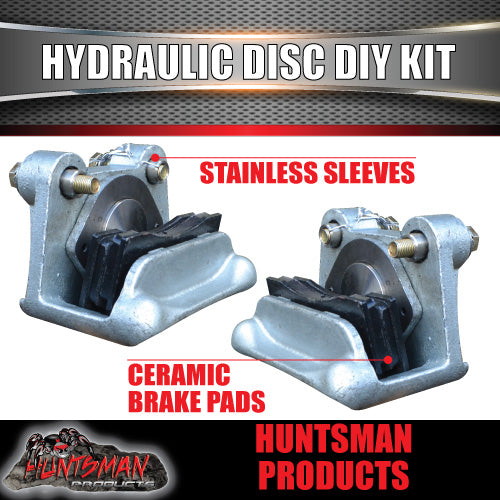

2X GALVANISED HYDRAULIC CALIPERS WITH STAINLESS STEEL PISTONS.
4 X CALIPER BRAKE PADS
2X S/L BEARING KITS INCLUDING DUST SEALS AND DUST CAPS (MARINE SEALS)
ALL WHEEL NUTS TO SUIT STUD PATTERN PROVIDED

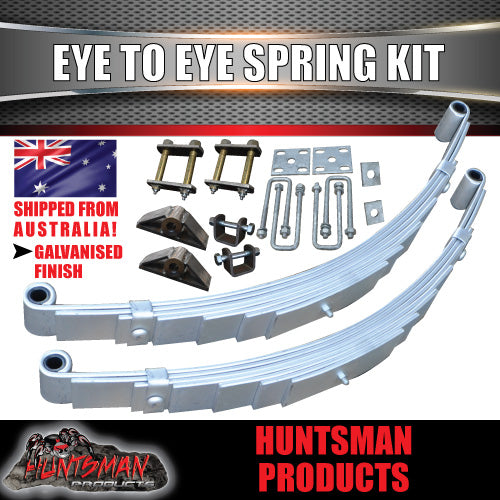

2X 7 LEAF GALVANISED DACROMET 60MM WIDE EYE TO EYE SPRINGS. RATED 1600KG PER PAIR (springs are shot peened for extra strength)

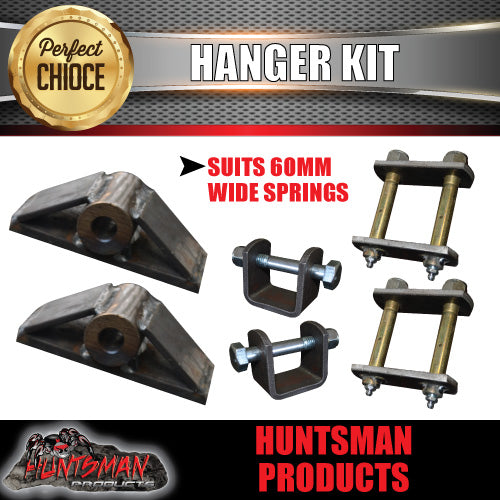

1X 60MM HEAVY DUTY SHACKLE HANGER KIT
2X GALVANISED FISH PLATES
4X GALVANISD 45MM X 150MM 1/2" U BOLTS WITH NUTS AND WASHERS
2X GALVANISED AXLE PADS

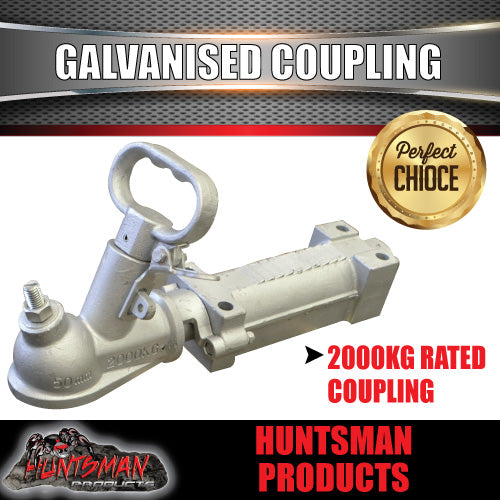

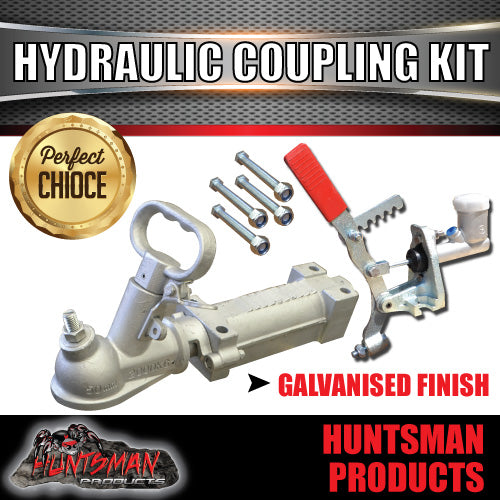

1X 2000KG GALVANISED 4 HOLE OVERRIDE 50MM BALL COUPLING
1X 3/4"MASTER CYLINDER WITH STAINLESS STEEL MOUNTING BOLTS
1X GALVANISED MASTER CYLINDER BRACKET
4X HIGH TENSILE COUPLING BOLTS WITH NYLOC NUTS
1X 4 HOLE COUPLING WELD ON PLATE

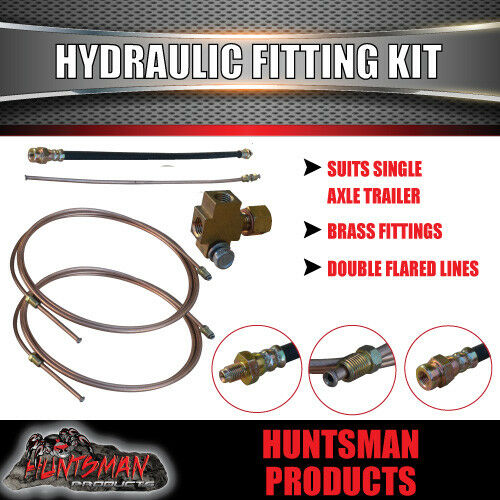

1X 2500MM COUPLING TO AXLE MAIN FLARED BUNDY LINE WITH NUTS (LET US KNOW IF LONGER IS REQUIRED)
1X 1500MM FLARED BUNDY LINE WITH NUTS
1X 500MM FLARED BUNDY LINE WITH NUTS
1X 400MM MALE / FEMALE FLEXI LINE
1X BRASS T PIECE
1X MASTER CYLINDER NUT AND WASHER
ALL COPPER FITTINGS AND T PIECES TO COMPLETE AXLE AND FINISH OFF AT COUPLING WITH PRE FLARED LINES!!


Please check coupling to axle hydraulic line length. if longer is required please get in contact with us
On ordering please provide your stud pattern and axle length?



upgrade to the easy instillation hydraulic line setup.
12ft set up: $70 (CLICK ON LINK BELOW)
16ft set up: $75 (CLICK ON LINK BELOW)

"UPGRADE TO 12FT FULL FLEXI KIT BY CLICKING HERE"

"UPGRADE TO 16FT FULL FLEXI KIT BY CLICKING HERE"



EXTRAS AVAILABLE
2" OR 4" DROP AXLES $295 EACH AXLE DROP AXLES TAKE APPROX 5 BUSINESS DAYS
ASSEMBLE OF AXLE $50 PER AXLE
UPGRADE TO JAPANESE BEARINGS $50.0 (CLICK ON LINK BELOW)

"CLICK HERE TO UPGRADE TO JAPANESE MANUFACTURED BEARINGS"



SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
