Elecbrakes Bluetooth Electric Brake Controller with Flat to Flat Plug Adaptor

SKU : 174544797721

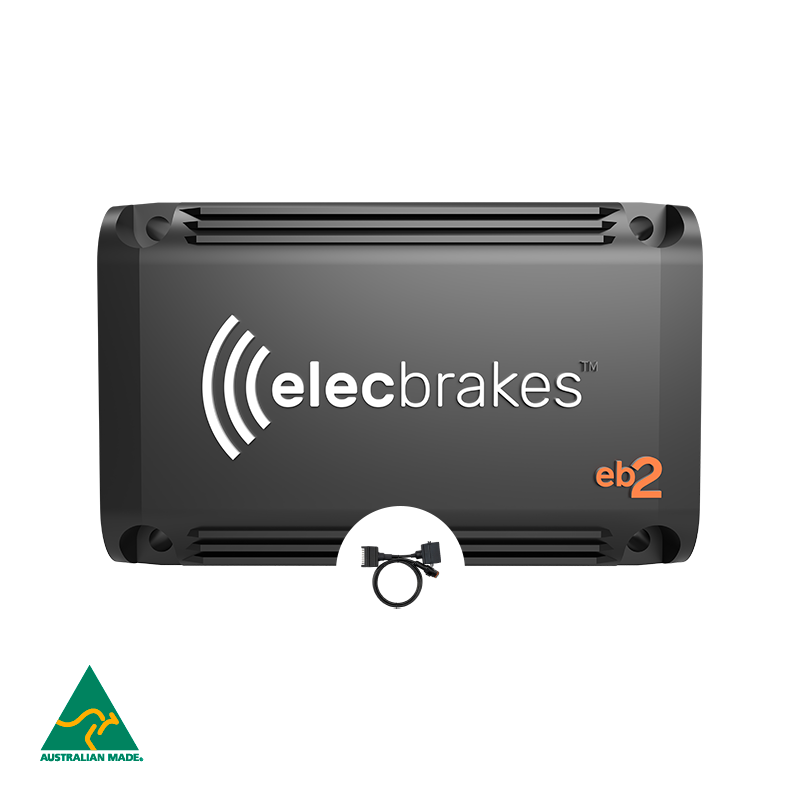

Elecbrakes Bluetooth Electric Brake Controller
Redefining Towing In Australia & New Zealand

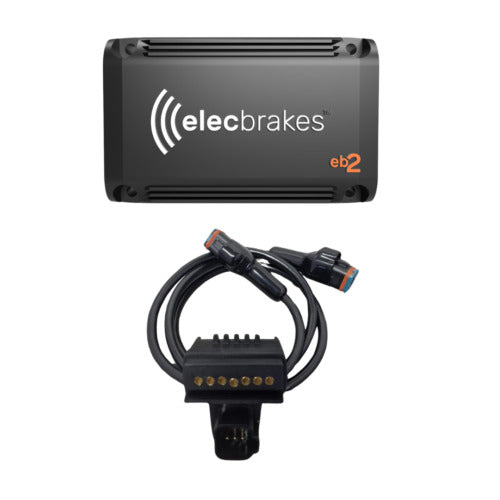

1 x ElecBrakes Controller Plug And Play Model ELBC2000-PS

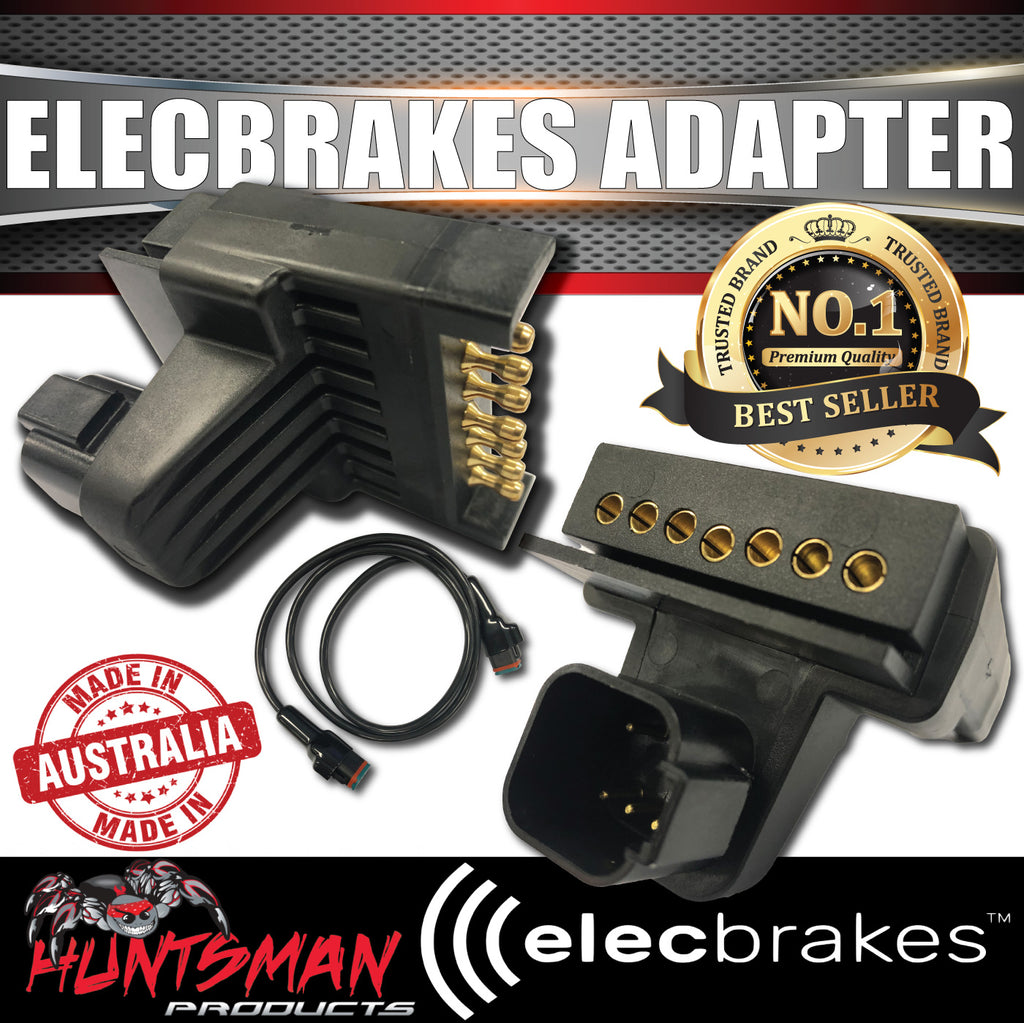

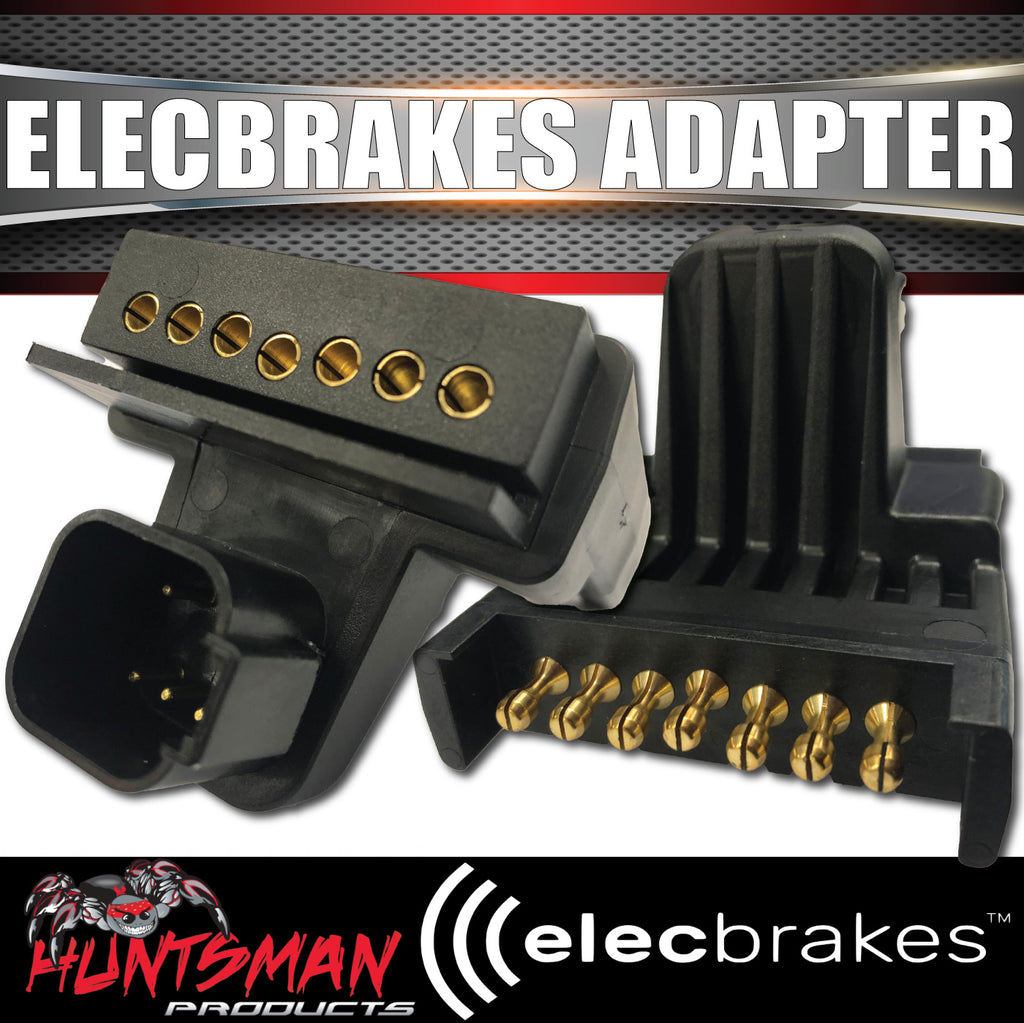

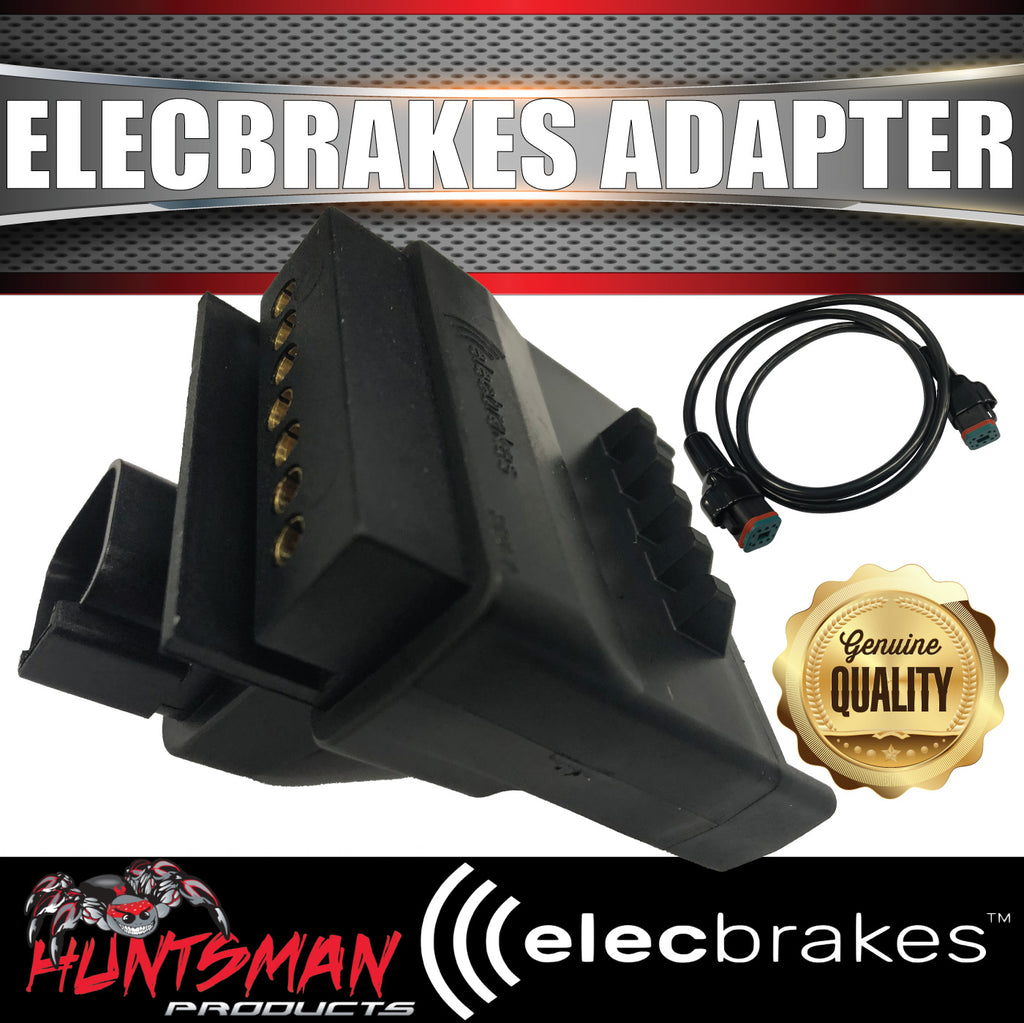

1 x Adapter Plug Flat 7 Pin to 7 Pin Flat
4 x Mounting Screws Provided
1 x User Guide and Warranty
1 x TroubleShooting Guide

This bundle contains the Elecbrake brake controller and a Plug & Play Adapter allowing the user to be up and running with compliant trailer brake within 10 minutes (no wiring required). The adapters connect to the brake controller via a IP68 rated connector. Allows compliance with ADR38/05.

Bundle Contents:
ELBC2000-PS Brake controller

*Elecbrakes provides adapters to suit the tow vehicle and trailer plug and socket combinations, prior to selecting your adapter you will need to confirm the variation installed on your vehicle and trailer (Flat 7, Flat 12, Large Round 7, Small Round 7) Note Elecbrake part number format is “vehicle plug – trailer plug”.

Elecbrakes is a trailer mounted proportional trailer brake controller, wired directly into the trailers electrical circuit. Elecbrakes draws power from the taillight circuit as well as the brake light circuit ensuring sufficient power is available for up to two braked axles.

Braking is triggered by positive voltage being applied to the brake light circuit. Once braking is triggered Elecbrakes uses Microprocessors and Accelerometers to calculate and provide precise brake response

Elecbrakes connects wirelessly to the in-car remote control and the user's smartphone. This enables intuitive adjustments while driving as well as access to a manual override. The smartphone app allows the user to set brake responses according to trailer load or driving conditions by calibrating five preset programs.

All of the preset programs are stored within the device on the trailer, ensuring any user can download their own copy of the smartphone app and will still have access to the Elecbrakes' preconfigured settings.

'Plug & Play' - Installed in 10 minutes
Trailer-mounting for multi tow vehicle use
Smooth proportional braking
5 Preset Braking Programs
Device stored settings for multi user access
Urethane resin encased electronics
Waterproof and shockproof
Easily connects to existing trailer circuits
Optional auxiliary power connection
