50mm Ball Mechanical Brake Boat Trailer Coupling + 100mm Marine Lever Cable Kit

SKU : 362556187946
$107.00

Available



Details

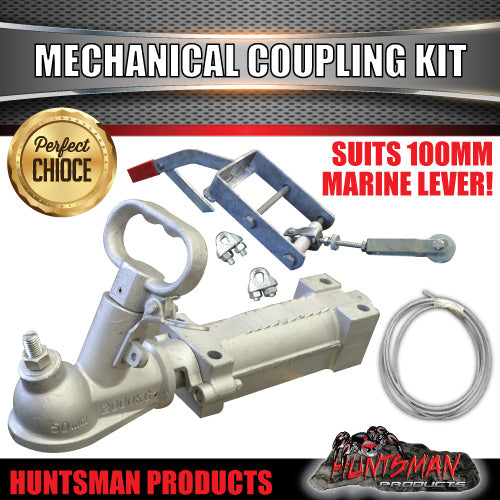

MECHANICAL BRAKED 50mm BALL COUPLING
WITH 100MM MARINE LEVER KIT
2000KG RATED


FULL KIT INCLUDES
1x 2000KG 4 HOLE OVERRIDE DACROMET FINISH 50mm BALL COUPLING (CRN 51628)
1X GALVANISED MECHANICAL MARINE LEVER ( TO SUIT 100MM DRAW BAR, PLEASE DOUBLE CHECK )
1X 8 METRES 4MM BRAKE CABLE (let us know if longer is required)
2X CABLE CLAMPS
1X CABLE ADJUSTER AND STAINLESS BOLT WITH NYLOC NUT

HUNTSMAN OVERRIDE COUPLING
ADR COMPLIED 4177.3
CRN APPROVED: CRN NUMBER 51628
HOLE CENTERS APPROX: 183MM (front to rear) X 55MM (left to right)
RATED: 2000KG MAXIMUM
SUITS BALL: 50MM
QUICK RELEASE LOCKABLE SAFETY TRIGGER
ADJUSTABLE TOW BALL ANTI RATTLE SCREW
COMES WITH 2 GREASE NIPPLES TO LUBRICATE OVERRIDE SHAFT AND SPRING
FINISH: MARINE DACROMET
SUITED FOR: MECHANICAL OVERRIDE DRUM OR DISC BRAKES

DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder
