50mm Ball Mechanical Brake Boat Trailer Caravan Coupling + Cable Kit 2000Kg

SKU : 180905496731
$117.00

Available



Details

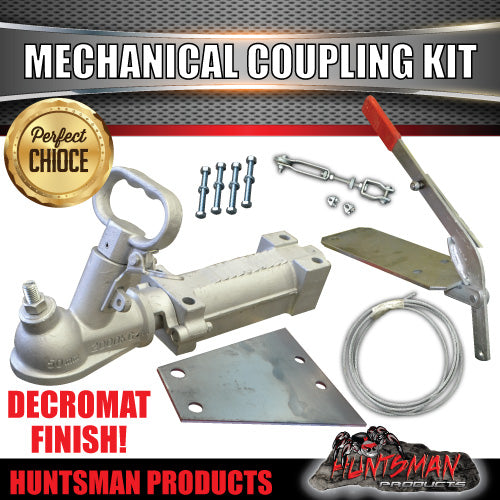

MECHANICAL BRAKED BALL COUPLING SET
2000KG RATED
COUPLING (ONLY) CRN: 51628


FULL KIT INCLUDES
1X 2000KG 4 HOLE OVERRIDE DACROMET 50mm BALL COUPLING

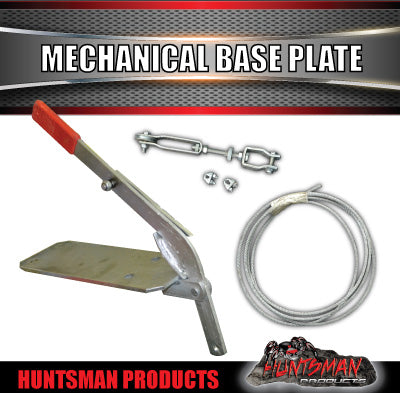

1X GALVANISED MECHANICAL BASE PLATE AND LEVER
4X HIGH TENSILE BOLTS WITH NYLOC NUTS
1X 4 HOLE WELD ON COUPLING BASE PLATE
1X 8 METRES 4MM HAND BRAKE CABLE (let us know if longer is required)
2X CABLE CLAMPS
1X CABLE ADJUSTER AND STAINLESS BOLT WITH NYLOC NUT

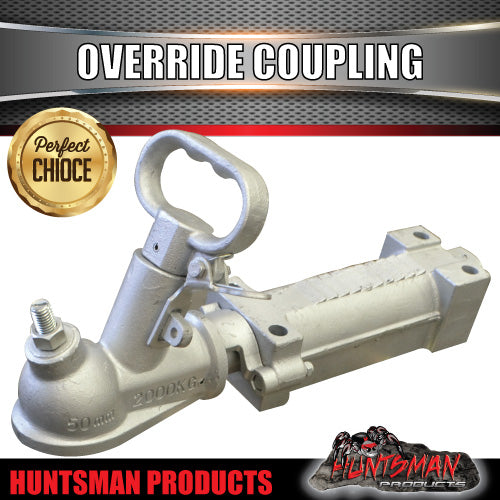

HUNTSMAN OVERRIDE COUPLING
ADR COMPLIED 4177.3
CRN APPROVED: CRN NUMBER 51628
ROVER APPROVAL NUMBER: CTA-051628
HOLE CENTERS APPROX: 183MM (front to rear) X 55MM (left to right)
RATED: 2000KG MAXIMUM
SUITS BALL: 50MM
QUICK RELEASE LOCKABLE SAFETY TRIGGER
ADJUSTABLE TOW BALL ANTI RATTLE SCREW
COMES WITH 2 GREASE NIPPLES TO LUBRICATE OVERRIDE SHAFT AND SPRING
FINISH: MARINE DACROMET
SUITED FOR: MECHANICAL OVERRIDE DRUM OR DISC BRAKES


DACROMET®
DACROMET®, is the leading inorganic coating commonly specified in the wind turbine, heavy truck, marine, agricultural, construction equipment and aerospace industries. A water-based, VOC-compliant coating, DACROMET® is comprised mainly of overlapping zinc and aluminum flake in an inorganic binder
