Details
pair 600mm closed length Drawer slides
SUITED FOR 1 DRAWER
FULL EXTENSION
125kg rating (when fully extended the weight ratio changes)
CLOSED LENGTH: 600MM
EXTENDED LENGTH: 1200MM
STEEL FINISH
Full extension design
Cold rolling steel
Locking design
Very Reliable and Hard Wearing.
These Draw Slides are great for any environment whether it be for work or leisure.
They are able to be used in a number of application from camper trailers to vans and everything in between.
One of the main features of these Draw Slides is that it is a Lock In & Lock Out, which means that when it id the closed position it is locked and won’t slide open.
The same goes when it is in the open position.
Features:
- Load capacity: 125 kg/pair* (at 500mm closed) please see below chart for slide ratings at different lengths
- Closed Length: 600mm
- Open Length: 1200mm
- Allow 25mm extra length for the locking tab
- Height: 53mm
- Thickness: 19mm
- Material: 2.0×2.0x1.8mm thick Steel (outer,middle,inner member)
- Electro Zinc Plated
- Full Extension
- Removable drawer tracks
- Guided by: 2 ball cages
- Side mount only

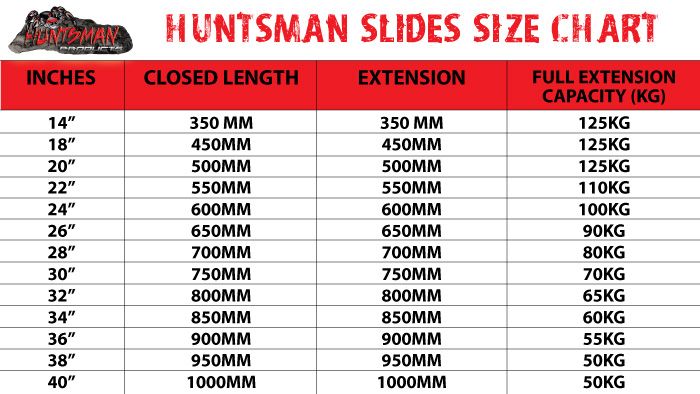

please see below chart for slide ratings at different lengths
