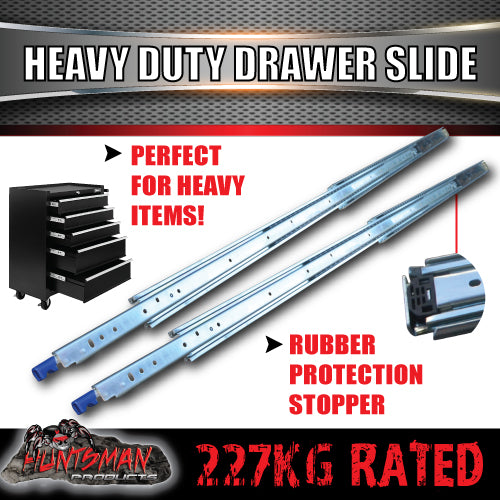

Pair 227kg x 1730mm 68" (closed) Lock in/out Drawer Slides.

SKU : 362361143930
$295.00

Available



Details



X1 Pair Lock in/out Drawer Slides





for 1 drawer





227kg rating (when fully extended the weight ratio changes)
















CLOSED LENGTH: 1730MM (+ 25mm for locking tab)

EXTENDED LENGTH: 3460MM (+ 25mm for locking tab)








STEEL FINISH


Full extension design
Cold rolling steel
Locking design



Very Reliable and Hard Wearing.
These Draw Slides are great for any environment whether it be for work or leisure.
They are able to be used in a number of application from camper trailers to vans and everything in between.
One of the main features of these Draw Slides is that it is a Lock In & Lock Out, which means that when it id the closed position it is locked and won’t slide open.
The same goes when it is in the open position.



Features:



  • Load capacity: 227 kg/pair* (at closed length) please see below chart for slide ratings at different lengths
  • Closed Length: 1727.2mm
  • Open Length: 3460mm
  • Allow 25mm extra length for the locking tab
  • Height: 76mm
  • Thickness: 19mm
  • Electro Zinc Plated
  • Full Extension
  • Removable drawer tracks
  • Guided by: 2 ball cages
  • Side mount only







 photo SLIDES_24INTERNAL 002_zpsvtnsxznq.jpg

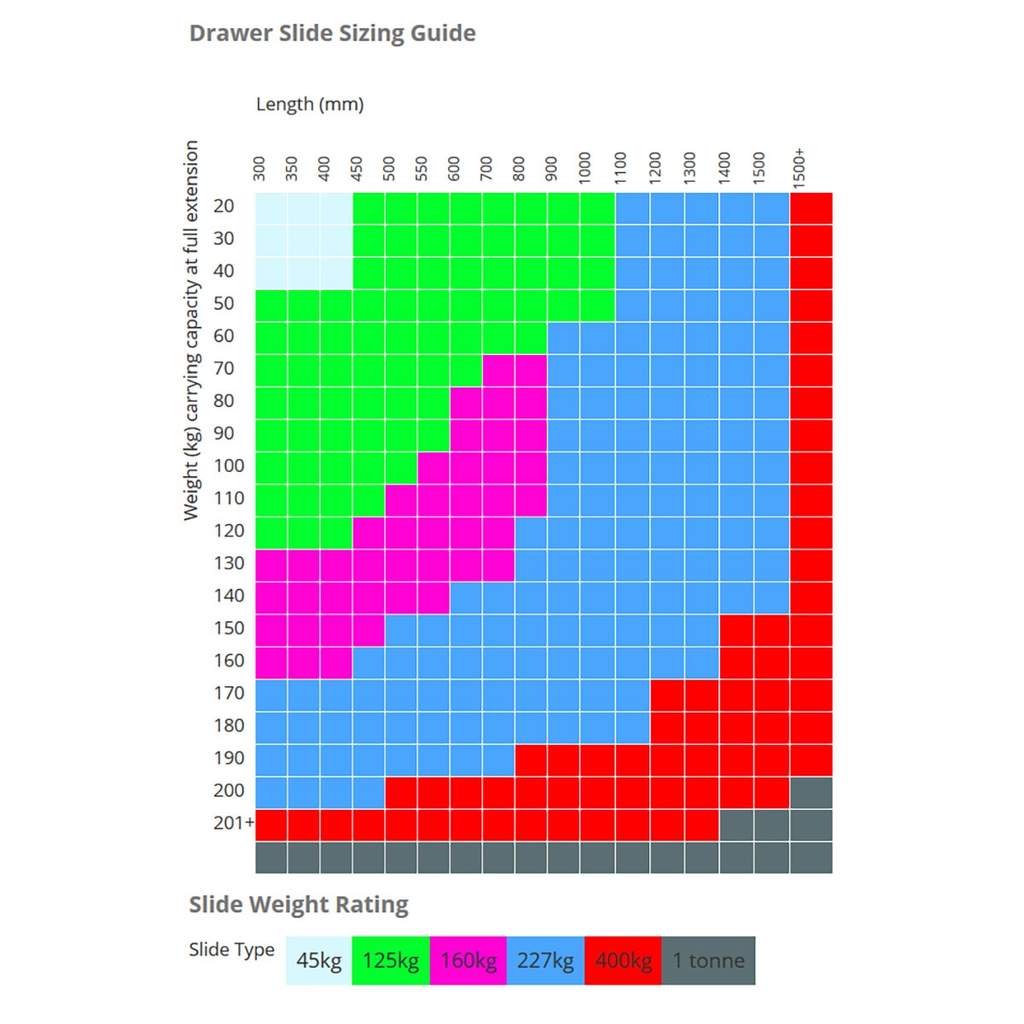

please see below chart for slide ratings at different lengths





 photo small-pic_zpsefphvyjs.jpg
