Pair 227kg x 1930mm 76" (closed) Lock in/out Drawer Slides.

SKU : 192575085174



X1 Pair Lock in/out Drawer Slides
for 1 drawer

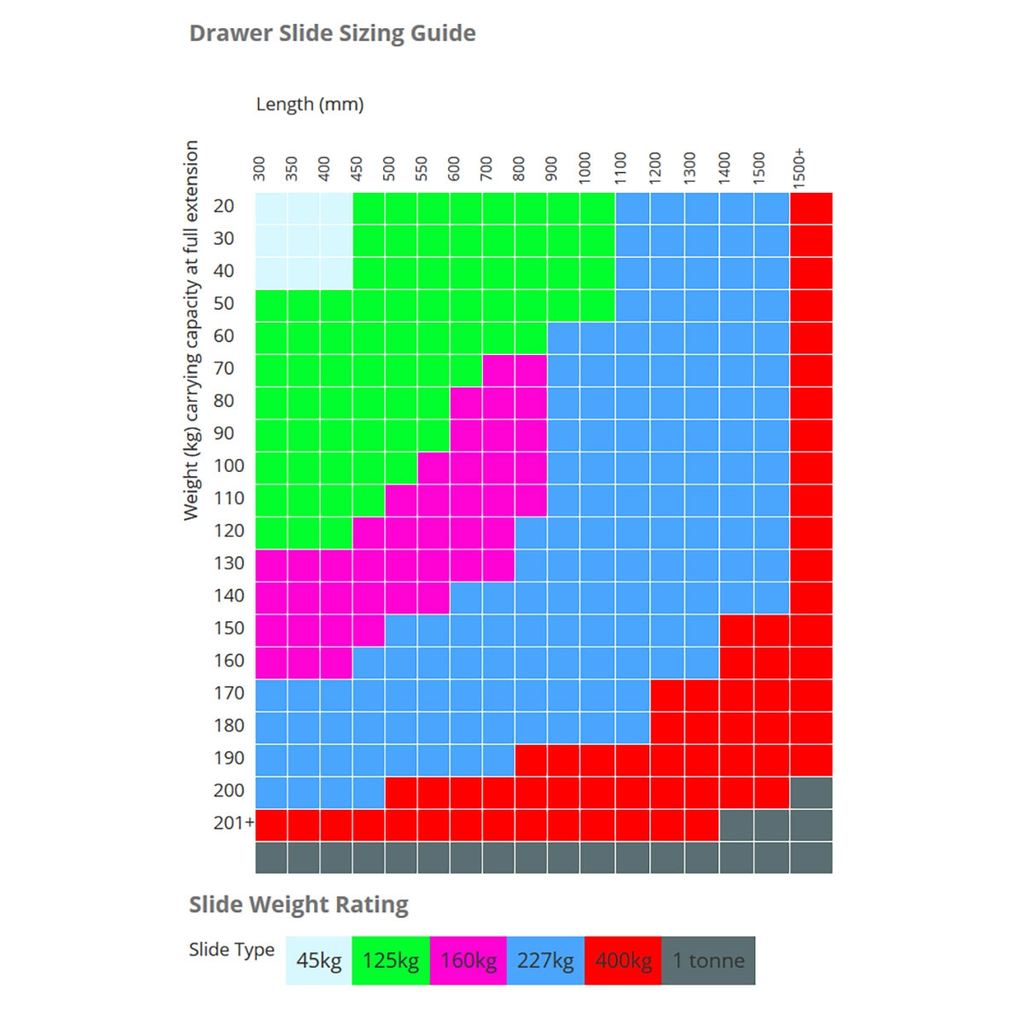

227kg rating (when fully extended the weight ratio changes, see chart in main pictures)

CLOSED LENGTH: 1930MM (+ 25mm for locking tab)
EXTENDED LENGTH: 3860MM (+ 25mm for locking tab)

Full extension design
Cold rolling steel
Locking design

Very Reliable and Hard Wearing.
These Draw Slides are great for any environment whether it be for work or leisure.
They are able to be used in a number of application from camper trailers to vans and everything in between.
One of the main features of these Draw Slides is that it is a Lock In & Lock Out, which means that when it id the closed position it is locked and won’t slide open.
The same goes when it is in the open position.

Load capacity: 227 kg/pair* (at closed length) please see chart for slide ratings at different extended lengths
Closed Length: 1930mm
Open Length: 3860mm
Allow 25mm extra length for the locking tab
Height: 76mm
Thickness: 19mm
Electro Zinc Plated
Full Extension
Guided by: 2 ball cages
Side mount only
