Pair 227kg x 711mm 28" (closed) Lock in/out Drawer Slides.

SKU : 173373750477
$113.00

Available



Details

X1 Pair Lock in/out Drawer Slides
for 1 drawer
227kg rating (when fully extended the weight ratio changes)

CLOSED LENGTH: 711MM (+ 25mm for locking tab)
EXTENDED LENGTH: 1422MM (+ 25mm for locking tab)
STEEL FINISH

Full extension design
Cold rolling steel
Locking design

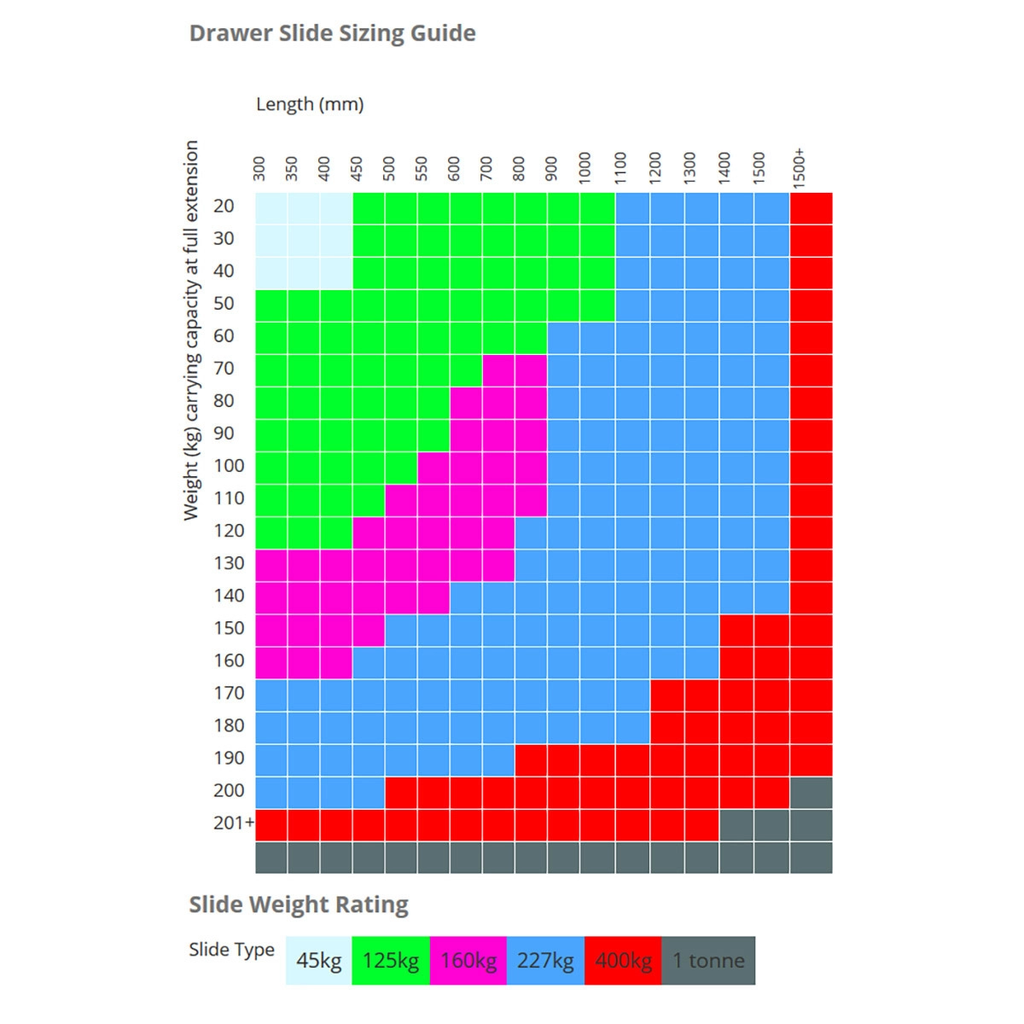

please see chart in main pictures for slide ratings at different lengths

Very Reliable and Hard Wearing.
These Draw Slides are great for any environment whether it be for work or leisure.
They are able to be used in a number of application from camper trailers to vans and everything in between.
One of the main features of these Draw Slides is that it is a Lock In & Lock Out, which means that when it id the closed position it is locked and won’t slide open.
The same goes when it is in the open position.

Features:
Load capacity: 227 kg/pair* (at 711mm closed) please see chart for slide ratings at different extended lengths
Closed Length: 711mm
Open Length: 1422mm
Allow 25mm extra length for the locking tab
Height: 76mm
Thickness: 19mm
Electro Zinc Plated
Full Extension
Guided by: 2 ball cages
Side mount only
