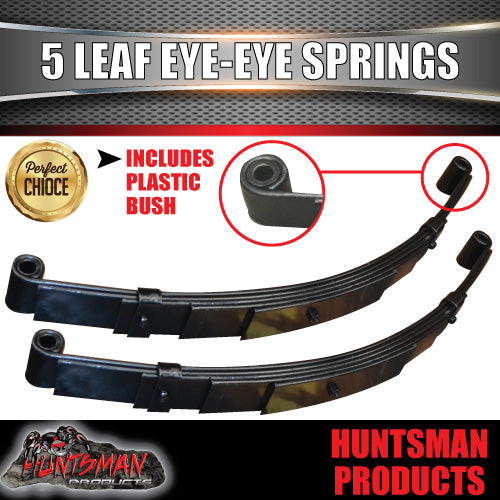

PAIR 5 LEAF EYE TO EYE TRAILER SPRINGS.1380KG RATED 60MM X 6MM

2X 60MM X 6MM 5 LEAF BLACK FINISH EYE TO EYE SPRINGS

SUITS SHACKLE SPRUNG TRAILERS

RATED TO 1380KG PER PAIR

SPRING LENGTH 715MM OVERALL

CENTRE OF EYE TO EYE OF SPRING LENGTH APPROX 680MM

PLEASE NOTE THESE SPRINGS HAVE AN OFFSET CENTER LOCATiON OF 60MM

(SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)

CAMBER ARC 135MM (SPRING ONLY)

BLACK PAINTED FINISH

SHOT PEENING

Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.

Long Part of spring to the front, move rear hanger 25mm towards the rear,

Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs
