PAIR 7 LEAF EYE TO EYE TRAILER SPRINGS. 45MM X 6MM 1400KG RATED

SKU : 170864652704
$75.00

Available



Details

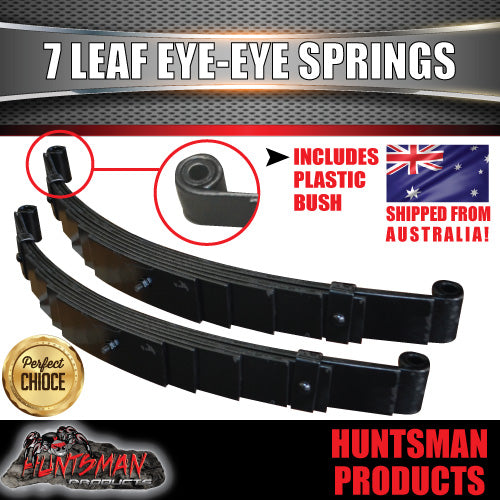

2X 7 LEAF EYE TO EYE 45MM SPRINGS
RATED 1400KG PER PAIR

2X 45MM X 6MM 7 LEAF BLACK FINISH EYE TO EYE SPRINGS
RATED TO 1400KG PER PAIR
SPRING LENGTH 730MM OVERALL
CENTER OF EYE TO EYE OF SPRING LENGTH APPROX 720MM
NYLON BUSH INSERTED
NYLON BUSH SUITS M12 OR 1/2" BOLTS

(SPRINGS ARE SHOT PEENED FOR EXTRA STRENGTH)



Long Part of spring to the front, move rear hanger 25mm towards the rear,
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs


SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
