Raso Caravan Boat Trailer Electric Over Hydraulic Actuator & Breakaway Unit. 1600 PSI. 3yr Warranty
SKU : 178443480230Available
Details

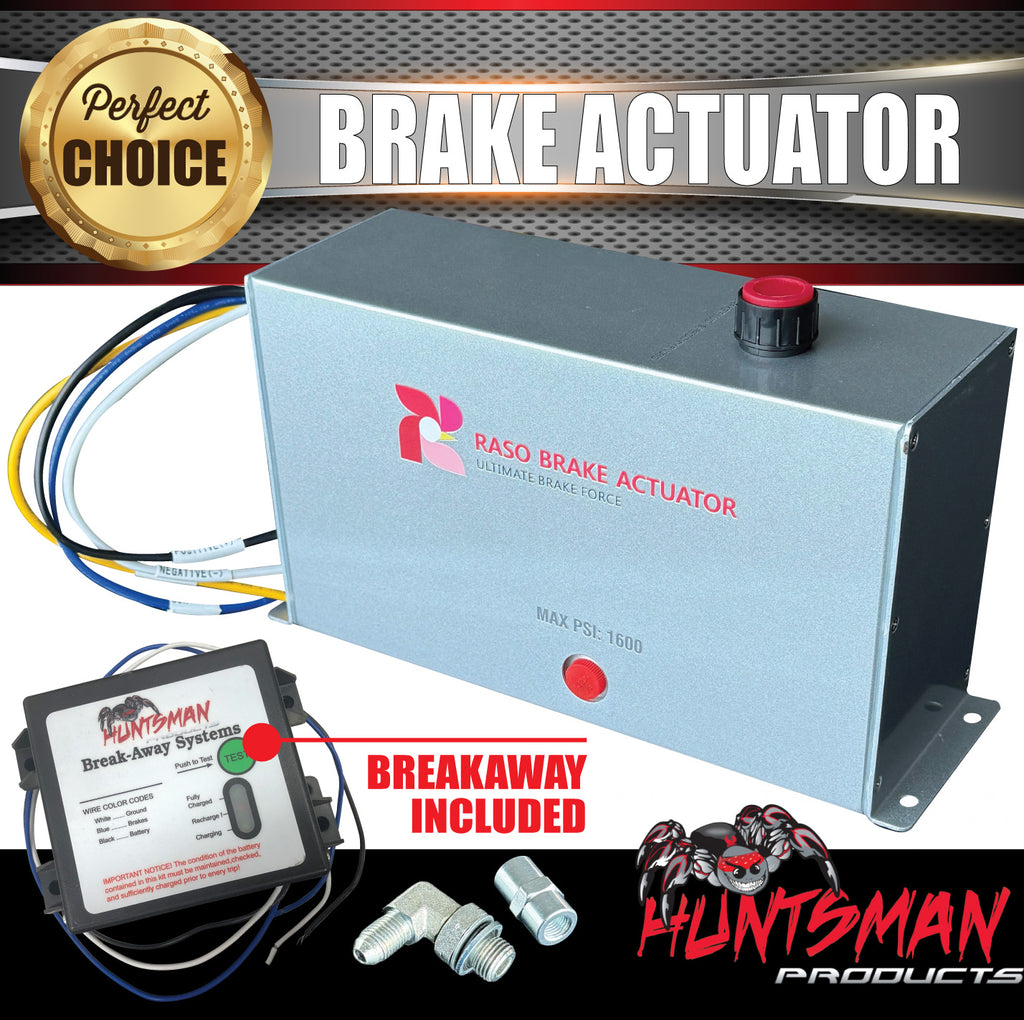

Raso Electric Over Hydraulic Actuator With Huntsman Breakaway Unit.
1600 PSI
3 Year Replacement Warranty
WHAT YOU RECEIVE
1X RASO ELECTRIC OVER HYDRAULIC ACTUATOR
1X HUNTSMAN PRODUCTS BREAKAWAY UNIT
RASO ACTUATOR
Made from the highest quality parts
Made to handle all Australian conditions
360 Degrees brake line fitting to connect from all angles
Shorter stopping distances
DC high powered motor
Sealed fluid tank providing extra fluid reserve
Anodised alloy case
Strong electronics board
Unit dimensions:
Length: 280mm
Height: 165mm
Width: 100mm
Mounting centres: Approx 297mm Length and 65mm Width
Wiring Colour Code
Black: 12 Volt Circuit
Blue: Brake Controller
White: Ground / Earth
Yellow: Break Away

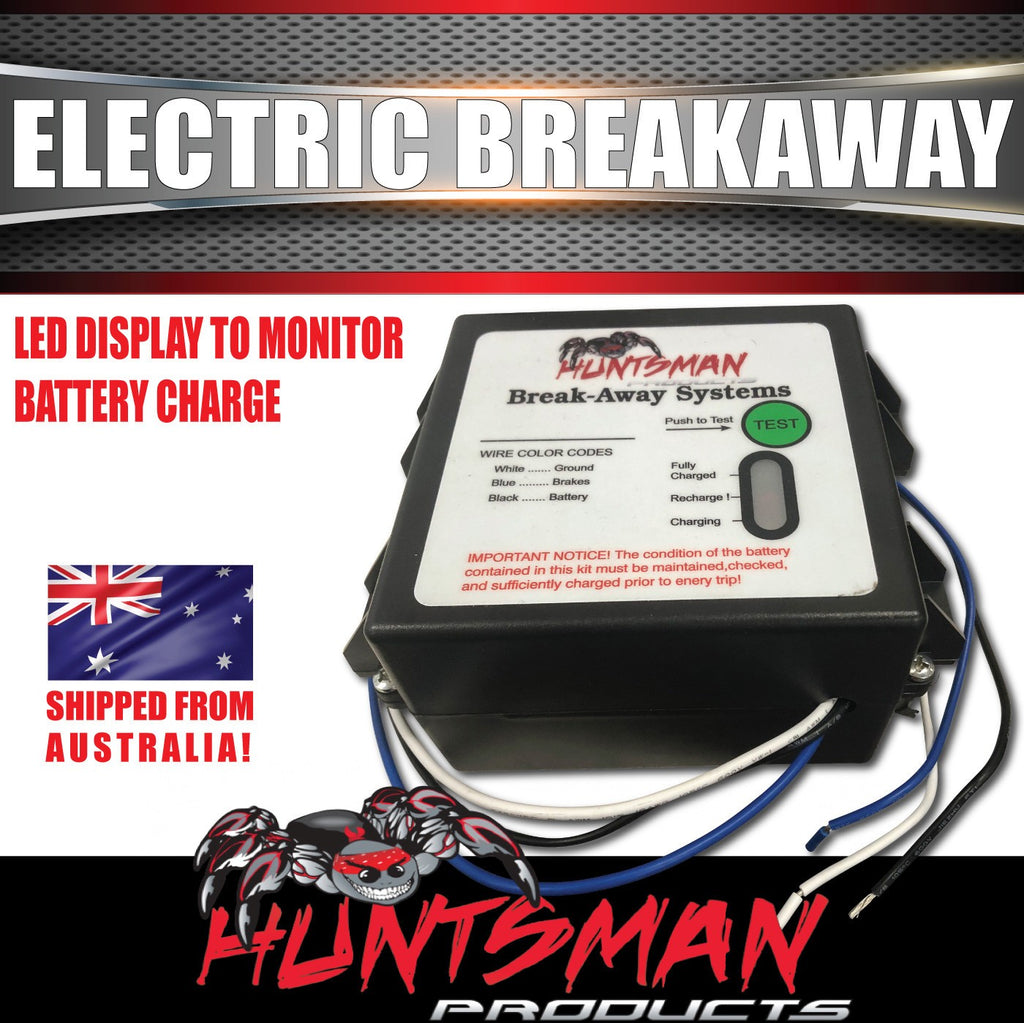

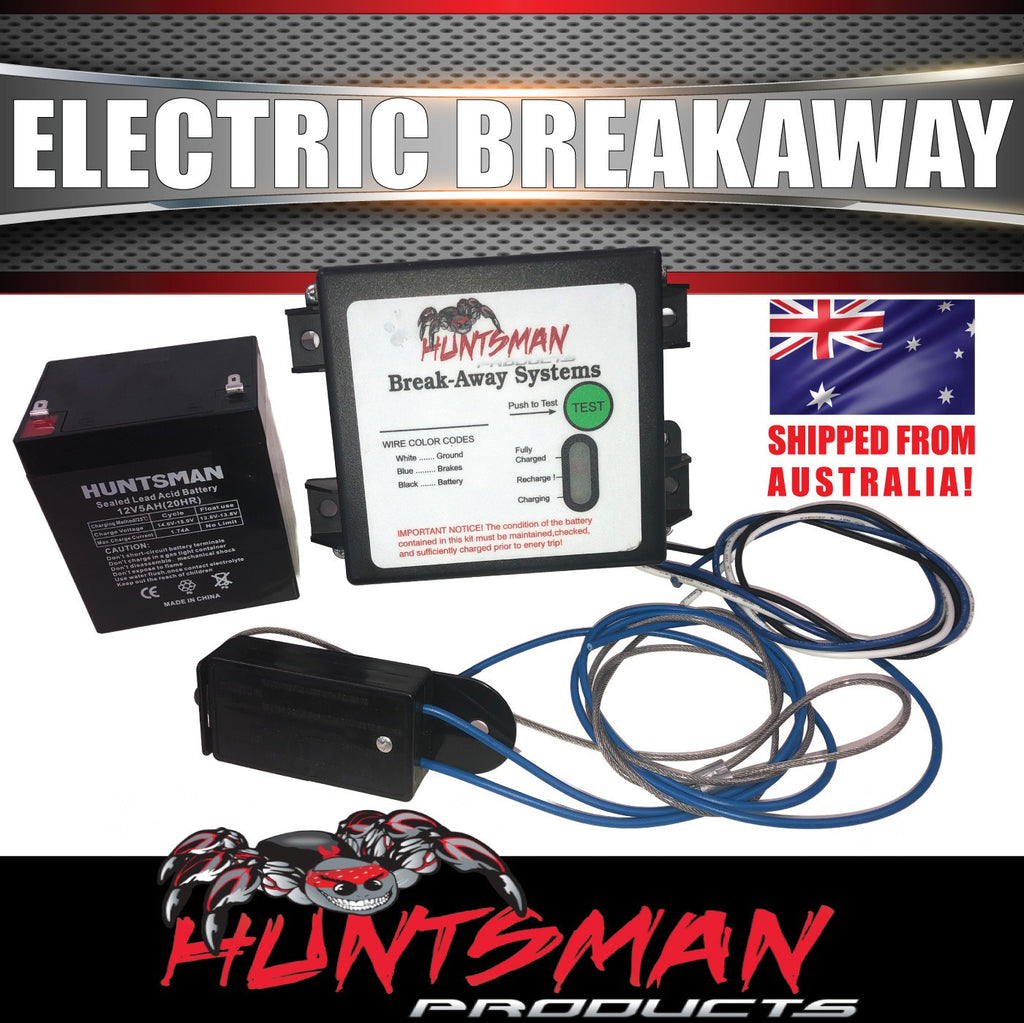

HUNTSMAN PRODUCTS BREAKAWAY UNIT
Push to Test: LED's indicate fully charged, charging or (needs) recharge
Built in battery charger charges battery when plugged into the tow vehicle
Activates trailer brakes upon separation of trailer and tow vehicle
For use on 1, or 2 axle trailers equipped with electric brakes
