TANDEM 330MM GUARDS & STEPS - OFF ROAD - CHEQUER PLATE - ROCKER ROLLER SPRINGS

SKU : 362765099840
$275.00

Available



Details

PAIR OFF ROAD CHEQUER PLATE STEEL MUD GUARDS & STEPS

SUIT TANDEM AXLE WITH ROCKER ROLLER GUARDS

330MM WIDE



2x tandem axle off road trailer mudguards

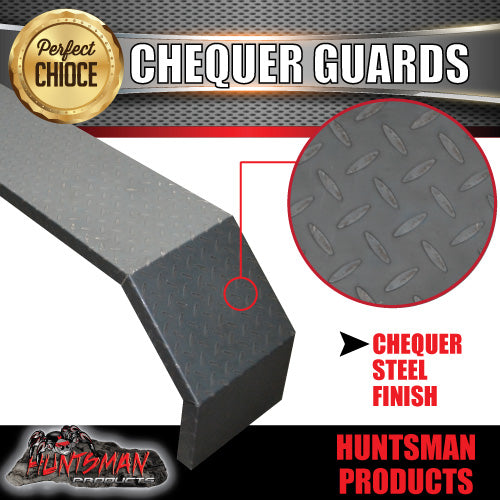

2.5mm chequer plate finish

45 degrees folds roll over wheels for a fantastic look

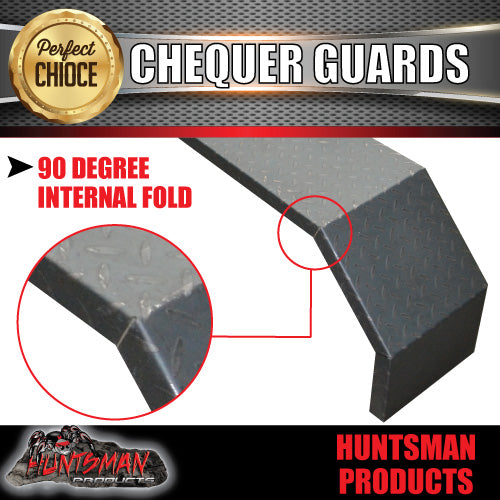

90 degrees return fold to meet on chassis

comes folded only and not welded to allow flex to meet up with steps or tie rails (a charge of $40 applies to have them welded)

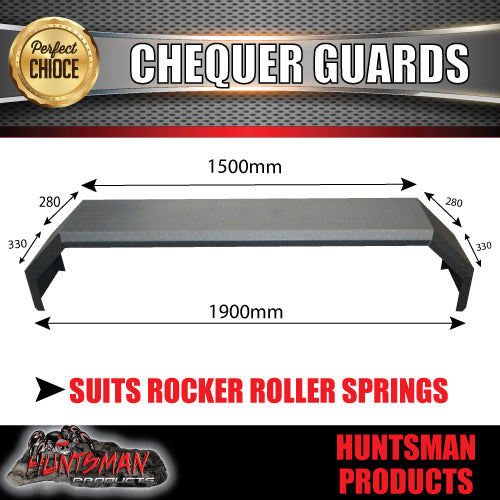

LENGTH OVERALL = 1900MM

WIDTH OVERALL = 330MM

HEIGHT OVERALL = 400MM

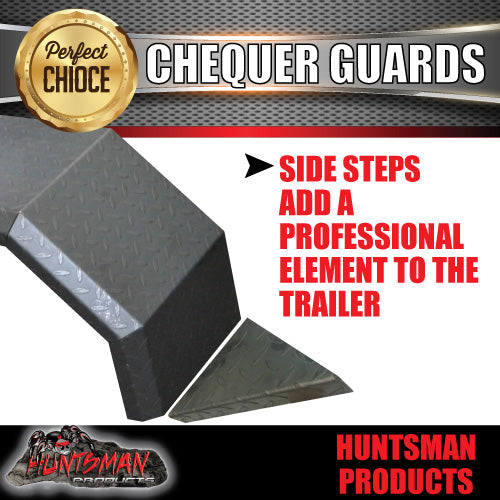

4x chequer plate finish corner steps

2.5mm chequer plate finish

approx. 280mm x 280mm

return fold approx 30mm



THESE ARE SUITED TO 4WD WHEELS AND TYRES.



Please note!!

Guard folds do not come welded. The reason for this is that most trailers have steps built onto the guards and if they are welded, there is no room to adjust the the guards out to meet the steps.

If you require the guards to be welded the difference is $40.
