PAIR TANDEM CHEQUER PLATE STEEL MUD GUARDS
SUIT TANDEM AXLE WITH SLIPPER SPRINGS

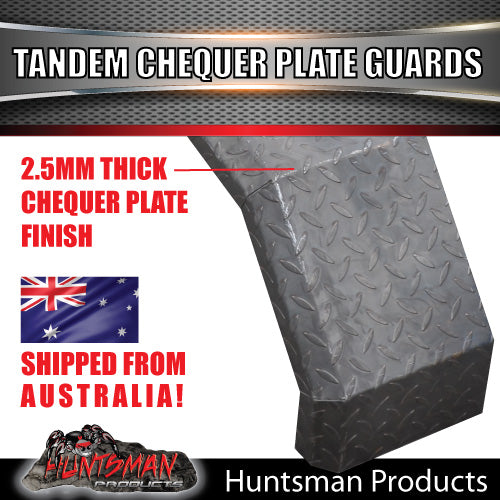

2.5mm chequer plate finish

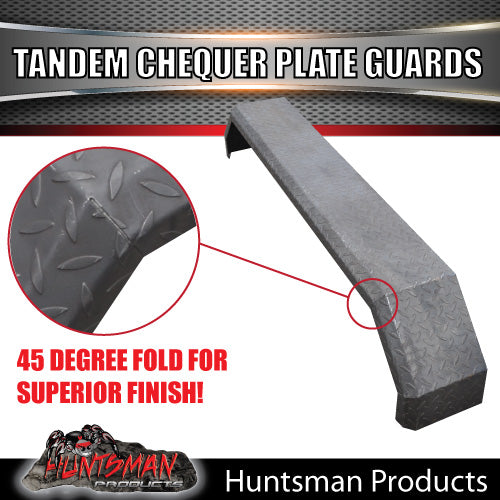

45 degrees folds roll over wheels for a fantastic look

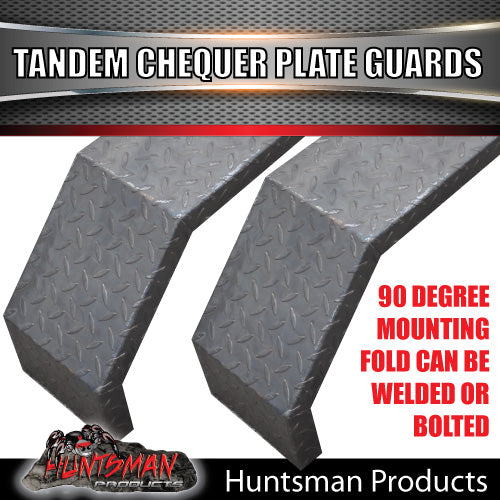

90 degrees return fold to meet on chassis
comes folded only and not welded to allow flex to meet up with steps or tie rails (a charge of $40 applies to have them welded)

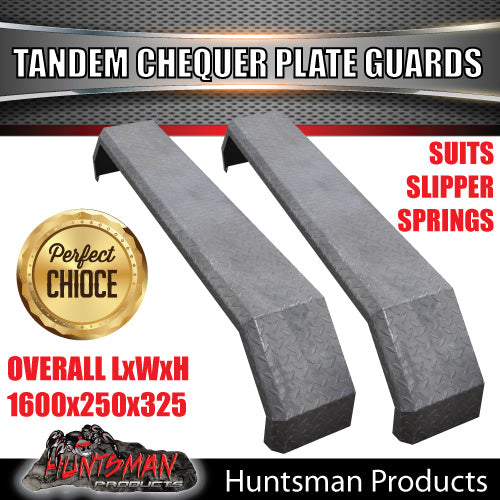

LENGTH OVERALL = 1600MM
WIDTH OVERALL = 250MM
HEIGHT OVERALL = 325MM
THESE ARE SUITED TO STANDARD 13", 14" AND 15" WHEELS AND TYRES.
Guard folds do not come welded. The reason for this is that most trailers have steps built onto the guards and if they are welded, there is no room to adjust the the guards out to meet the steps.
If you require the guards to be welded the difference is $40.
