TWIN 10" JOCKEY WHEEL. SWING UP. SOLID WHEELS 1600kg RATED

SKU : 171823606784
$120.00

Available



Details

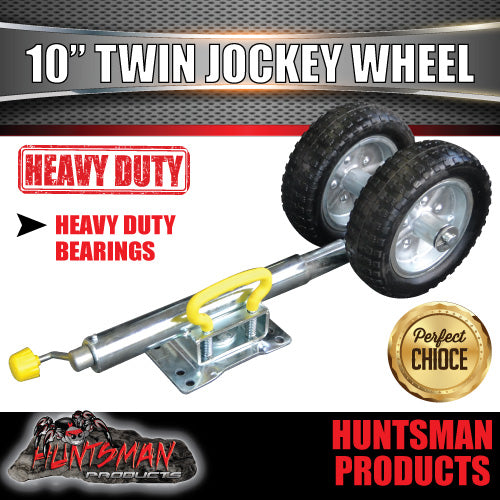

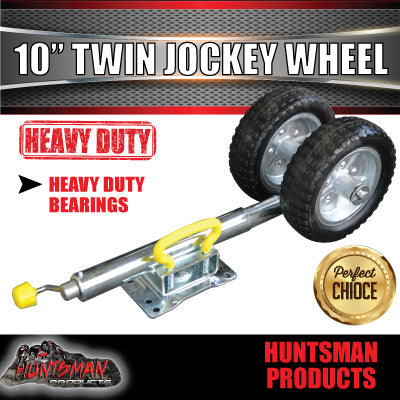

The all new Heavy Duty Twin 10" Jockey Wheel

1600KG BALL WEIGHT RATED

MAKE MOVING BIGGER CARAVANS, CAMPERS AND TRAILERS MUCH EASIER!



TWIN 10" SOLID WHEEL SWING UP JOCKEY WHEEL

THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED

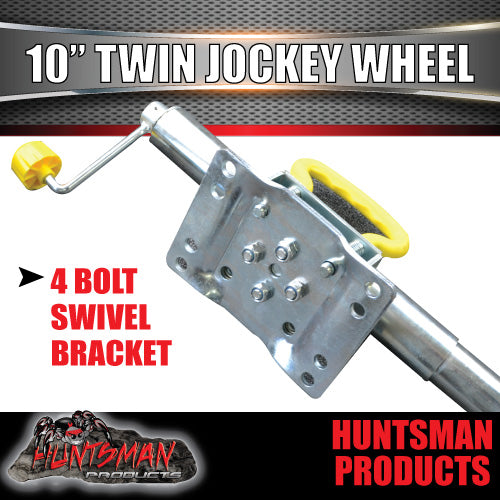

4 BOLT SWIVEL BRACKET (suited to 50mm, 75mm and 100mm a frames)



This twin wheel setup makes it a lot easier to move trailers with a heavy ball weight on softer grounds

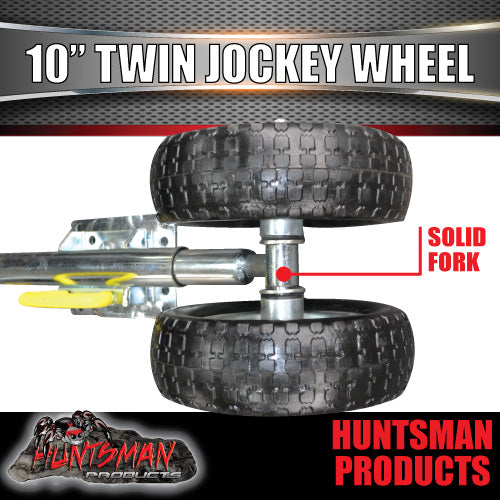

SOLID 22MM FORK

PLASTIC HANDLE

CAN BE WELDED OR SUPPLIED WITH U-BOLTS

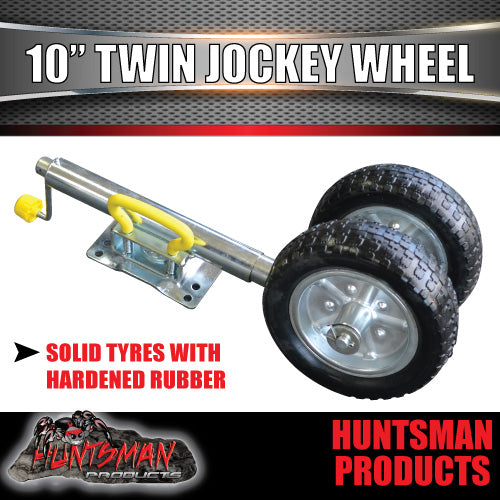

SOLID WHEELS

HARDENED RUBBER OUTER TYRES

RUBBER MOULDED HANDLE



TYRE WIDTH: 80MM

WIDTH OF BOTH TYRES OVERALL: 250MM



height from centre of bracket to bottom of tyre

fully closed 420mm

fully extended 680mm

Height from middle of bracket to top of handle: 215mm

Overall Length closed: 630mm

Travel: 260mm



UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY
