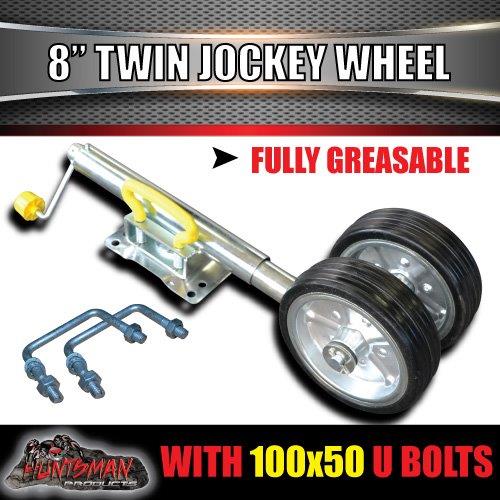

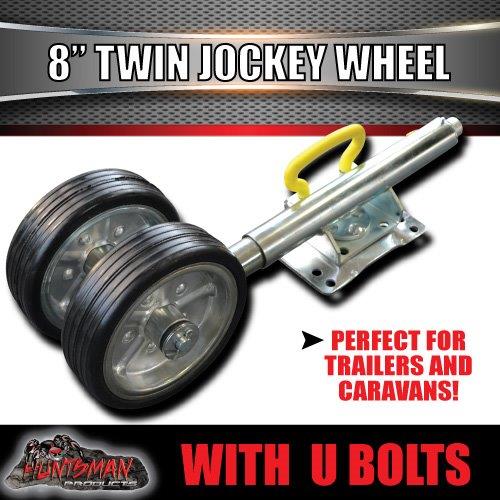

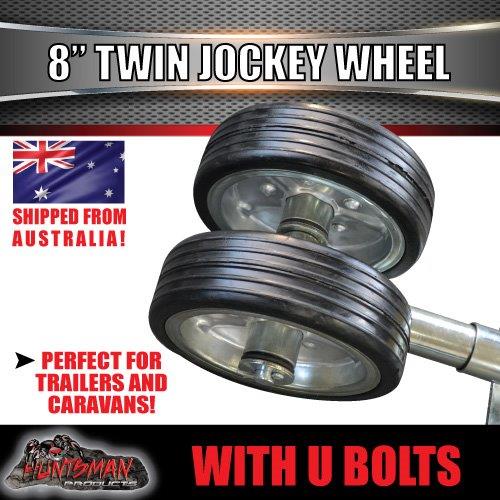

Twin 8" Trailer Caravan Jockey Wheel 1200kg Swing Up Solid wheels + U Bolts Suit 100x50mm Frame

SKU : 192716318999
$112.00

Available



Details

Twin 8" Jockey Wheel With Mounting Ubolts
1200KG BALL WEIGHT RATED
MAKE MOVING BIGGER CARAVANS, CAMPERS AND TRAILERS MUCH EASIER!


TWIN 8" SOLID WHEEL SWING UP JOCKEY WHEEL
THIS JOCKEY WHEEL CAN BE WELDED OR BOLTED

4 BOLT SWIVEL BRACKET (suited to 50mm, 75mm and 100mm a frames)

SOLID 22MM FORK
PLASTIC HANDLE
CAN BE WELDED OR SUPPLIED WITH U-BOLTS

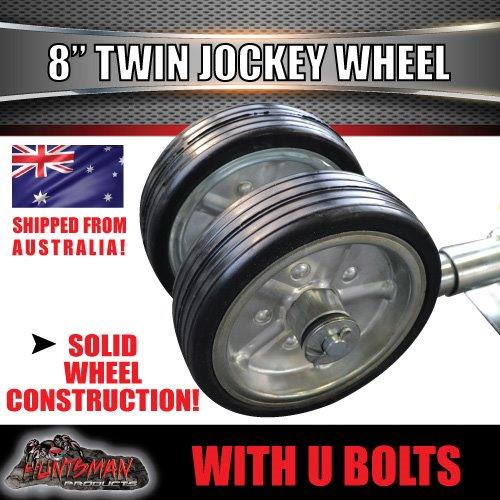

SOLID WHEELS
HARDENED RUBBER OUTER TYRES
RUBBER MOULDED HANDLE

height from centre of bracket to bottom of tyre
fully closed 380mm
fully extended 633mm

Height from middle of bracket to top of handle: 220mm
Overall Length closed: 600mm
Travel: 253mm

UNLIKE NORMAL JOCKEY WHEELS WITH ONE BOLT AS THE SWIVEL, THE HUNTSMAN BRAND HAS A 4 BOLT HINGE SET UP ELIMINATING THE CHANCE OF ANY SLOPPINESS AND THE CHANCE OF THE JOCKEY WHEEL DROPPING, CAUSING TRAILER DAMAGE OR PERSONAL INJURY

U BOLTS WITH SPRING WASHER AND NUTS INCLUDED TO SUIT 100MM X 50MM A FRAME OR DRAW BAR

RATED AT 1200KG (BALL WEIGHT)

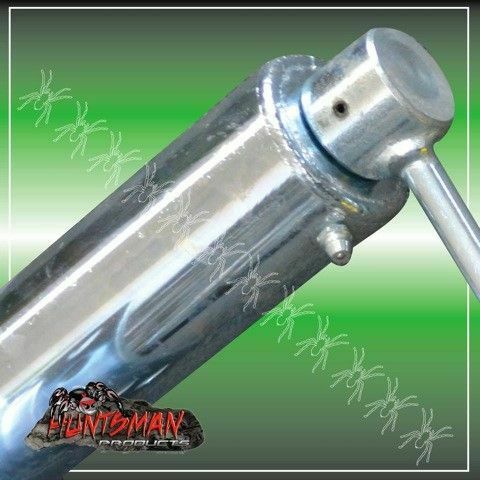

FULLY GREASABLE (as in picture)
