x2 7 Leaf Off Road springs 1600Kg with Rebound Straps

SKU : 170926704613
$160.00

Available



Details

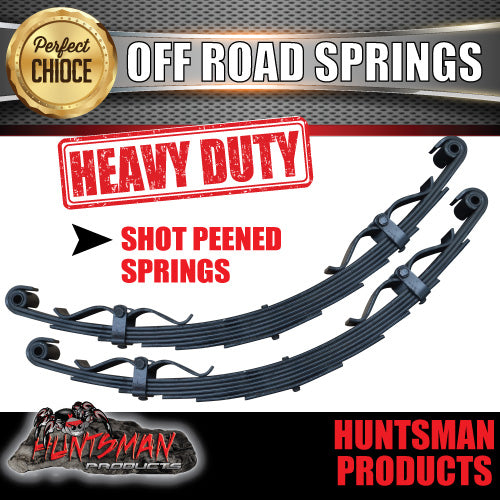

2X 7 LEAF 1600Kg 60mm X 7mm HEAVY DUTY OFF ROAD EYE TO EYE TRAILER SPRINGS
GREASABLE FRONT AND REAR HANGERS, REBOUND DAMPNER STRAPS
SHOT PEENED SPRINGS


CENTRE EYE TO CENTRE EYE = APPROX 830MM
END TO END = APPROX 900MM
CAMBER ARC HEIGHT 160MM. (SPRING ONLY. NOT ASSEMBLED ON HANGERS)
SPRING WIDTH = 60MM
LEAF THICKNESS = 7MM
COMES WITH 2 X REBOUND DAMPNERS PER SPRING (SHOCK ABSORTION)
SPRINGS ARE SHOT PEENED
RATED: 1600KG PER PAIR

Long Part of spring to the front, move rear hanger 25mm towards the rear,
Centre to centre of the hangers needs to be 25mm greater than centre to centre of the springs


SHOT PEENING
Shot peening is a cold working process used to produce a compressive residual stress layer and modify mechanical properties of metals and composites. It entails impacting a surface with shot with force sufficient to create plastic deformation. Shot peening is often called for in aircraft repairs to relieve tensile stresses built up in the grinding process and replace them with beneficial compressive stresses.
