x4 585mm x 500 newton gas struts & brackets

SKU : 173998613096
$80.00

Available



Details

X4 585mm x 500 newton gas struts

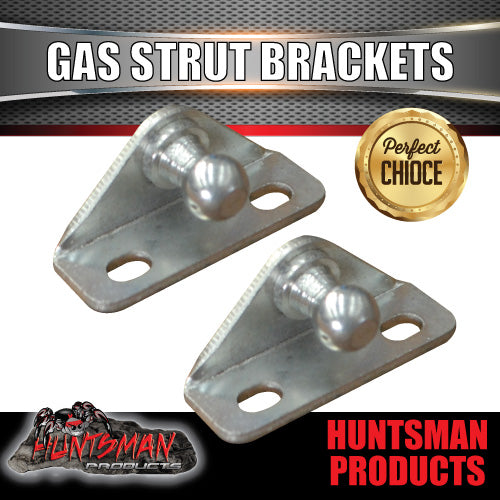

x8 13MM BALL GAS STRUT BRACKETS
European seals

these struts are generally used under on tradesman trailer side and rear doors that are framed and approx 50kg

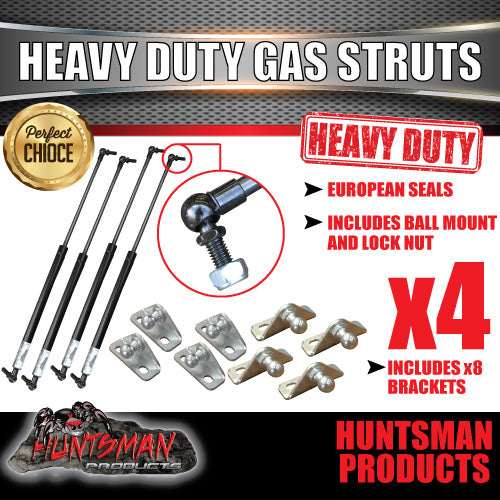

4x 500 newton x 585mm open shaft gas struts

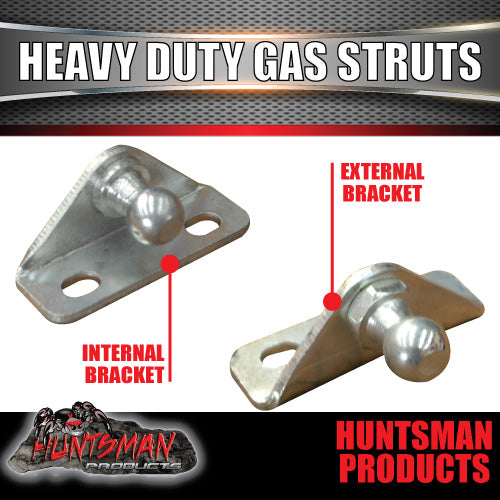

4x internal mount brackets (let us know on ordering if you require all internal or all external brackets)

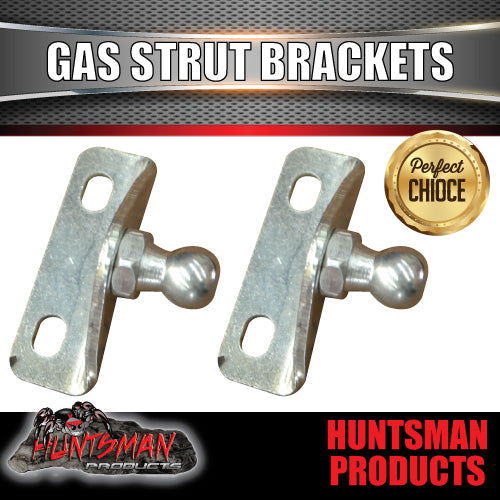

4x external mount brackets (let us know on ordering if you require all internal or all external brackets)
shaft width 10mm
comes with mount ball bolts and nyloc nuts





Image result for CAMPER TRAILER GAS STRUT Drawing stroke length



STROKE LENGTH (A) MM = 260
EXTENDED LENGTH (B) MM = 585
PISTON ROD (D1) MM = 10
PISTON CYLINDER (D2) MM = 22
FORCE RANGE NEWTON = 500


What gas strut do I need?
To calculate the size and the force of the Gas Strut you require for your application use the following guidelines. The extended length of the Gas Strut should be approximately 60% of the door or hatch length - e.g. a 1000mm high door should have a Gas Strut length of approximately 600mm.
